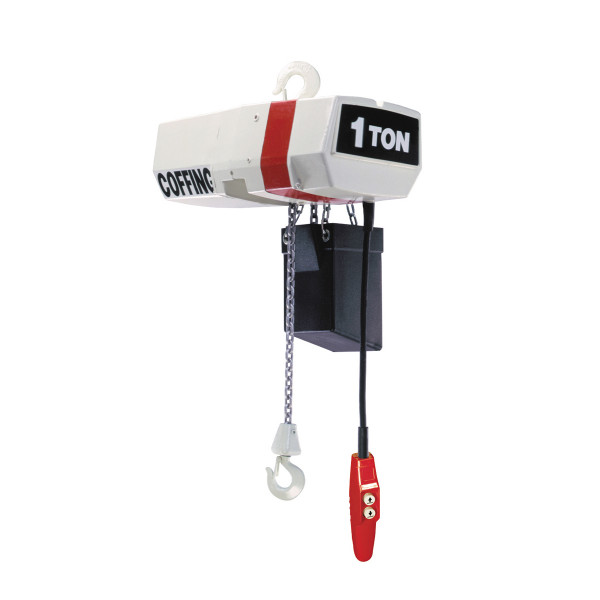

Coffing EC Hook & Lug Suspension Electric Hoist

1/4, 1/2, 1, 2, 3, 4 and 5 Ton Capacities with 10, 15 and 20-Foot Standard Lifts—Standard push button drop is 4 feet less than lift.

Coffing EC Hook and Lug Suspension Models are high-performance hoists engineered for heavy-duty industrial service. Designed for safety, the EC incorporates mechanical load brake, motor brake and overload clutch as standard.

Coffing Hoists Banner

Description

Features & Benefits:

  • Voltage – 115/230, 208 – single-phase; 230/460, 208, 220/380, 575 – three-phase, 60 hertz standard, 50 hertz available.
  • Two-speed motors available (3 to 1 speed ratio).
  • Rigid or swivel top hook, lug, plain, geared and motorized trolley suspensions available.
  • Small Frame Design features housings of cast aluminum alloy construction for minimum weight. Engineered and designed for use with motors up to 1 HP.
  • Large Frame design features load bearing housings of ductile iron construction for maximum strength. Non-load bearing housings of cast aluminum alloy for minimum weight. Engineered and designed for use with higher torque 2 and 3 HP three-phase motors.
  • Built in compliance with ASME / ANSI B30.16 and CSA standards.
  • Full line of accessories available, including Variable Frequency Drives.
  • Lifetime warranty
  • Other suspension available: Plain Trolley, Geared Trolley and Motorized Trolley—contact your local Lifting Specialist.

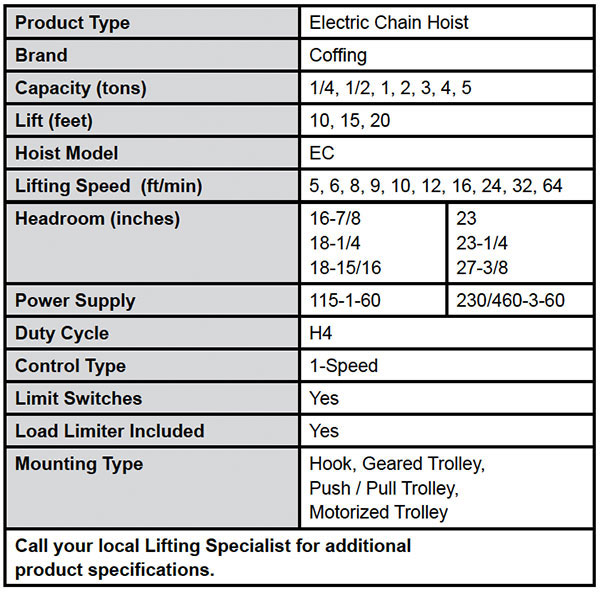

EC Hook & Lug Suspension Model Hoists Specs
