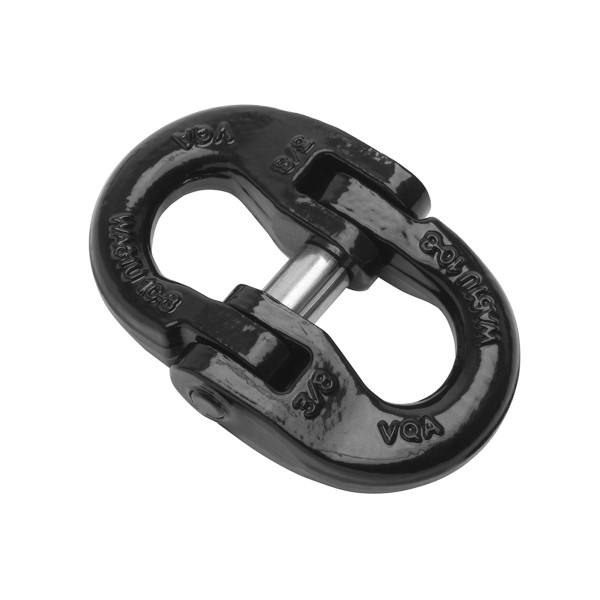

Black metal connecting link with two oval loops joined by a central pin, showing manufacturer markings

Peerless Peer-Lift Mechanical Coupling Link (Grade 80)

  • Proof tested at twice the working load limit.
  • Fatigue tested at 1.5 times the working load limit for 20,000 cycles.
  • Meet or exceed ASTM A952 and OSHA 1910 standards.
Categories: , Tags: , ,
Peerless logo with black and yellow circular emblem and text reading "A KITO Group Company" in yellow

Description

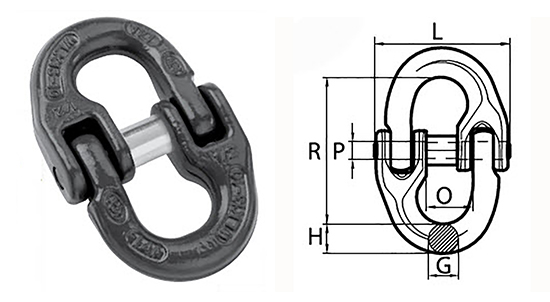

Gray steel connecting link with screw pin closure, shown with technical diagram labeling dimensions L, R, P, H, and G

Stock # Chain Size Dimensions Lbs. Per Each WLL
(lbs)*
Black Inches mm G H O R PxL
8453280 9/32 7 0.35 0.39 0.67 2.00 0.24 x 1.85 0.26 3,500
8453180 5/16 8 0.39 0.45 0.71 2.42 0.25 x 2.09 0.42 4,500
8453380 3/8 10 0.50 0.54 0.89 2.83 0.31 x 2.48 0.84 7,100
8453480 1/2 13 0.66 0.75 1.08 3.46 0.39 x 3.11 1.61 12,000
8453580 5/8 16 0.83 0.83 1.30 4.06 0.55 x 4.17 3.15 18,100
8453680 3/4 20 0.93 1.16 1.63 4.53 0.63 x 4.84 5.84 28,300
8453780 7/8 22 1.06 1.14 1.91 5.31 0.63 x 5.91 8.27 34,200
8053755 1 26 1.24 1.24 2.36 5.79 0.71 x 6.23 9.48 47,700
8053855 1-1/4 32 1.26 1.57 3.15 7.64 0.98 x 7.68 17.75 72,300

* WARNING: Working load limit is not to be exceeded.
