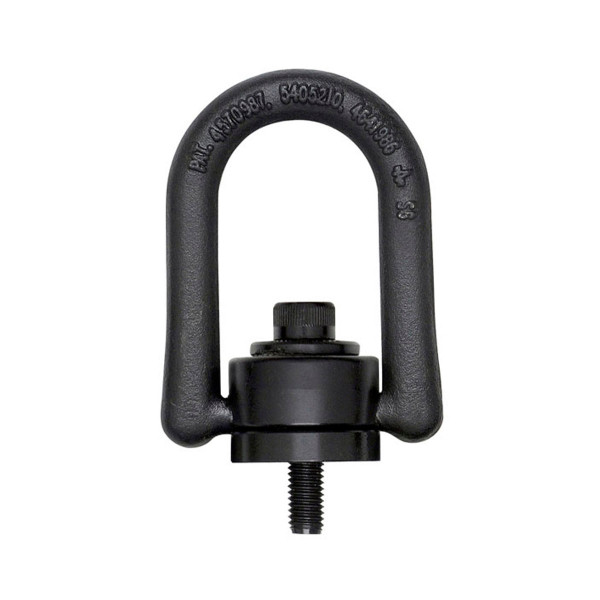

ADB Heavy Duty® Hoist Rings

Material:
Forged alloy steel with minimum tensile strength of 180,000 PSI.

Design Factor:
Minimum Design Factor = 5:1, Magnetic Particle Inspected Per ASTM 1444, Hoist Rings retain the same rated load from 0 to 90 degrees from the bolt axis

Range of Movement:
Swivel 360°, Pivot 180° under Load

Specifications:
Meets Military Specification No. MIL-STD 209,
Meets ANSI / ASME B30.26

Finish:
Black Oxide Finish for corrosion resistance,

Also available in a wide range of plating—e.g Cadmium, Titanium-Cadmium, Nickel, etc.

ADB Logo

Description

Typical Applications:
ADB’s HEAVY DUTY® Hoist Rings are specified and used in nuclear energy equipment

Patent:
#5,405,210

Available in sizes from:

  • Standard Sizes:
    – .44″ U-Bar (thread size 1/4″-20) to 1.25″ U-Bar (thread size 2″-8)
    – Rated load from 550 to 30,000 pounds
    – Long Bar Models are available
  • Metric Sizes:
    – Thread sizes from M8 x 1.25 to M56 x 5.50
    – Rated load from 400 kg to 13,500 kg
    – Long Bar Models are available
