Description
Gate Types
Brass alloy Golden Gates® are engineered for quality, easy handling and dependability. The heavy-duty, corrosion resistant locking mechanism will stay locked until an operator releases it; yet, can easily be shut with one hand. Cost effective, these gates reduce down time, providing the alternative to conventional latches.

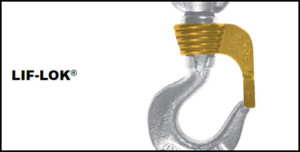

LIF-LOK® GATE—Size 1
To lock: close the gate; the built-in spring locks the gate against the hook tip.
To unlock: lift the gate upward on the hook shank and swing open.

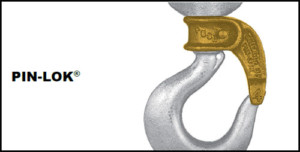

PIN-LOK®—Sizes 2 through 4
To lock: close the gate; a stainless steel pin is carried in a horizontal bore and engages a milled slot in the hook shank.
To unlock: simply depress the stainless steel pin which causes the pin to disengage from the milled slot.

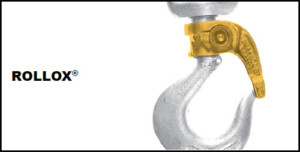

ROLLOX® GATE—Sizes 5 through 9
To lock: close the gate; a stainless steel pin is mounted in a horizontal bore which passes through the gate and engages a notch milled in the hook shank.
To unlock: move the lever downward a quarter-turn or until it stops, the gate can now swing open 160° (approx.).

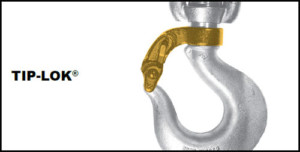

TIP-LOK® GATE—Sizes 10 through 17
To lock: press the arm down until the lock trips; two arms of the gate now enclose the tip of the hook.
To unlock: manually depressing the locking trigger automatically raises the movable arm, allowing the gate to be rotated open.
Hook Connectors
The six connector styles shown to the right make it possible for Crosby to furnish a Golden Gate Hook to fit almost any make or model of hoisting equipment.
Each connector is available with either a self-closing or manual closing gate. (e.g.: A size 4 hook with a closed swivel bail connector and self-closing gate is 4-C; with manual closing gate, it is 4-A.)

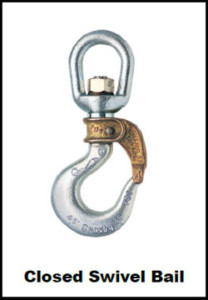

Closed Swivel Bail
For use where hoisting line or shackle can be inserted into the bail.
- Hook sizes: 1 through 14
- Style C—with self-closing gate.
- Style A—with manual-closing gate.

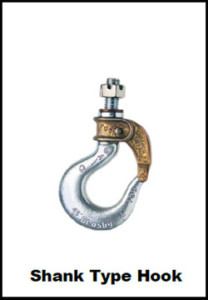

Shank Type Hook (Standard Length)
For use on existing load blocks, with standard shank length.
- Hook sizes: 2 through 14
- Style C—with self-closing gate.
- Style A—with manual-closing gate.
Shank Type Hook (Long Length)
For use on existing blocks requiring extra shank length.
- Hook sizes: 4 through 17
- Style C—with self-closing gate.
- Style A—with manual-closing gate.

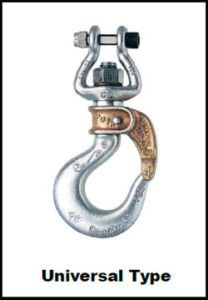

Universal Type
Open swivel bail for attachment to link chain.
- Hook sizes: 3, 4 and 5
- Style E—with self-closing gate.
- Style G—with manual-closing gate.

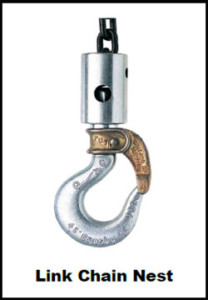

Link Chain Nest
With ball-bearing swivel; attaches to chain by an alloy pin.
- Hook sizes: 4, 5 and 7
- Style O—with self-closing gate.
- Style P—with manual-closing gate.

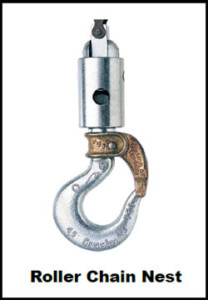

Roller Chain Nest
Attached with ball-bearing swivel and full-floating connector.
- Hook sizes: 4, 5 and 6
- Style S—with self-closing gate.
- Style R—with manual-closing gate.
