Low Headroom Multiple Spread Lifting Beams (Model 20)

Mazzella Companies Logo

Description

Product Features:

Ideal where headroom is limited.

  • Beams over 4’ have 3 spreads.
  • 3’ & 4’ beams have 2 spreads.
  • Swivel hooks with hook latches standard.
  • Wide range of sizes and capacities available.
  • Complies with ASME standards.

Standard Features:

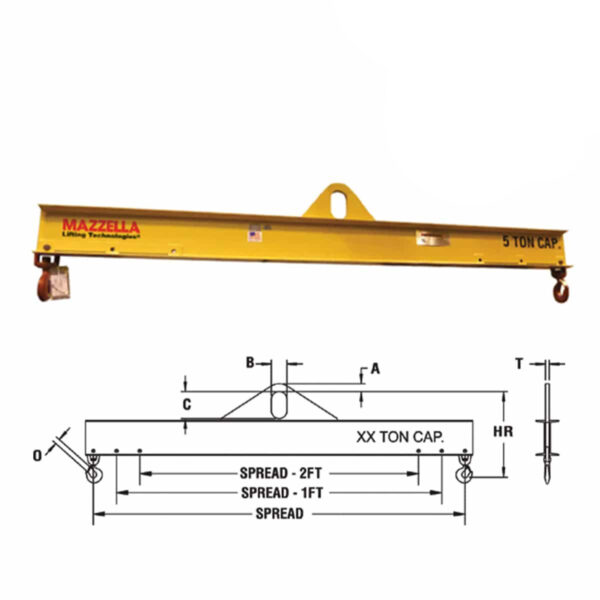

Three spreads to adjust to the load:

  • Outside spread
  • Middle spread (outside less 1’)
  • Inside spread (outside less 2’)

Options:


Option A

Extra Holes or Different Placement of Holes – Allows multiple hook positioning beyond standard spreads. Specify number and spread(s) required.

Low Headroom Multiple Spread Lifting Beams (Model 20) A


Option B

Faspins – For ease of positioning hooks with quick release. Specify number required.

Low Headroom Multiple Spread Lifting Beams (Model 20) B


Option C

Extra Hooks – Allows for multiple pick points. Specify number required.

Low Headroom Multiple Spread Lifting Beams (Model 20) C


Option D

Pin Type Bail – Lifting pin located between structural channel. (Hoist hook information must be supplied.)

Low Headroom Multiple Spread Lifting Beams (Model 20) D


Option E

Shackle Lug – Lifting lug with shackle. (Headroom may change.)

Low Headroom Multiple Spread Lifting Beams (Model 20) E

Recommend Faspins (Option B) if frequent hook position changes (spread) are required.




Mazzella QuickShip Program

Low Headroom Multiple Spread Lifting Beams (Model 20) Specs 1

Low Headroom Multiple Spread Lifting Beams (Model 20) Specs 2

Other sizes available, consult your local Lifting Specialist.




Low Headroom Multiple Spread Lifting Beams (Model 20) Warning 1Low Headroom Multiple Spread Lifting Beams (Model 20) Warning 2 Low Headroom Multiple Spread Lifting Beams (Model 20) Warning 3

Low Headroom Multiple Spread Lifting Beams (Model 20) Warning 4Low Headroom Multiple Spread Lifting Beams (Model 20) Warning 5

All product warnings: Warnings Page
