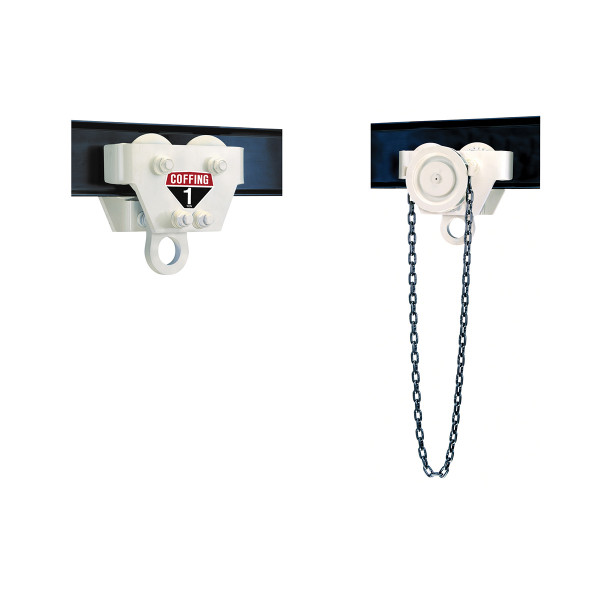

Coffing CTA Plain & Geared Trolley

1/4, 1/2, 1, 2, 3, 4 and 5 Ton Capacities in plain and geared models. Geared trolleys have standard 6-foot hand chain drop. Other hand chain drops available.

COFFING CTA Model—Featuring enhanced design, and available in plain and geared models, which can be modified to fit a wide range of beam sizes and styles. The CTA is designed to provide easy operation and superior performance in industrial lifting applications.

Category: Tags: , ,
Coffing Hoists Banner

Description

Features & Benefits:

Rugged

Designed to provide superior performance and long, efficient service.

Easy Operation

Lowest rolling effort in the Coffing trolley line.

Universal Mounting

Clevis accepts all Coffing hook-mounted hoists or lug-mounted hoists attached directly to load pins.

Increased Adjustability

Trolley easily conforms to any beam flange within range of adjustment. For larger flange width, please contact your local Lifting Specialist.

Wrap-Around Side Plates

Lugs provide additional security for operator and act as bumpers to protect wheels.

Dual Tread Wheels

Fully machined wheels fit any tapered or flat flanged beams within range of adjustment. Wheels include permanently lubricated, shielded ball bearings for long life and low maintenance.

Options

Spark-resistant and corrosion-resistant wheels available. Track clamps available on 1/4 to 4 tons.

Lifetime Warranty

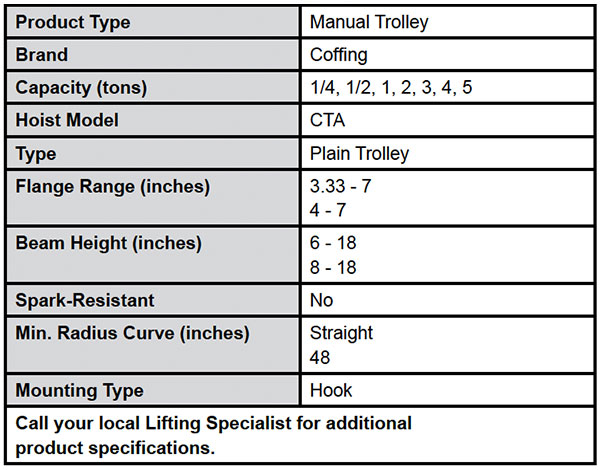

CTA Plain & Geared Trolleys Specs
