CM CBT Plain & Geared Trolley

1/4, 1/2, 1, 1-1/2, 2, 3 and 5 Ton Capacities

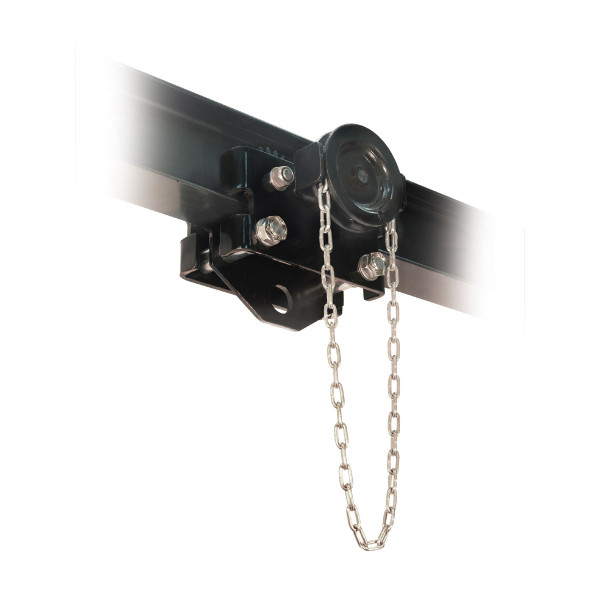

The smooth rolling CM Hoist CBT is the economical choice for most applications. The trolley features steel wrap-around side plates, dual tread wheels and lifetime lubricated shielded ball bearings. The CBT Model by CM Hoist is available in plain and geared models.

Category: Tags: , ,
CM Logo

Description

Features & Benefits:

  • Capacities—Rated loads from 1/4 to 5 Ton (Metric Rated). In plain and geared models.
  • Economical—Excellent low-cost choice for manual and powered hoists.
  • Rugged—Designed to provide superior performance and long, efficient service.
  • Low Rolling Effort—Geared models have standard 6-foot hand chain drop. Other hand chain drops available.
  • Universal Hanging Clevis—Accepts most hook-mounted hoists.
  • Adjustable—Trolley easily adjusts to fit any beam flange within range of adjustment, up to an 8.7″ flange width.
  • Wrap-Around Side Plates—Lugs provide additional security to increase operator safety and act as bumpers to protect wheels.
  • Dual Tread Wheels—Will fit either tapered or flat beam flange within range of adjustment. Wheels include permanently lubricated, shielded ball bearings for long life and low maintenance.
  • Lifetime Warranty

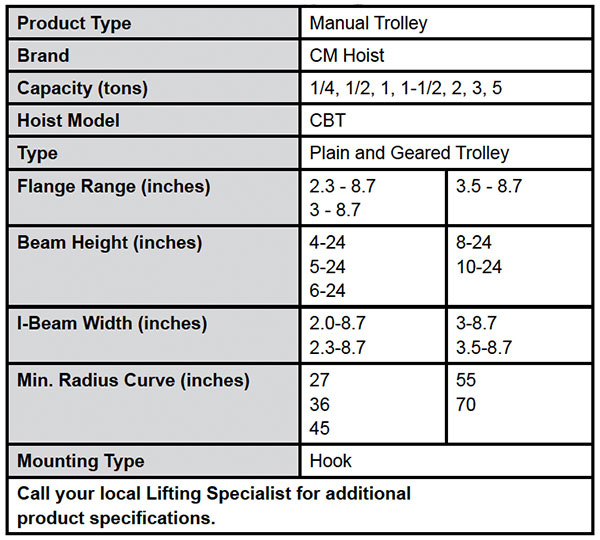

CBT Plain & Geared Trolleys (CM) Specs

NEED HOIST REPAIR OR PARTS?

We do repairs in-house and stock a full line of parts.
All product warnings: Warnings Page
