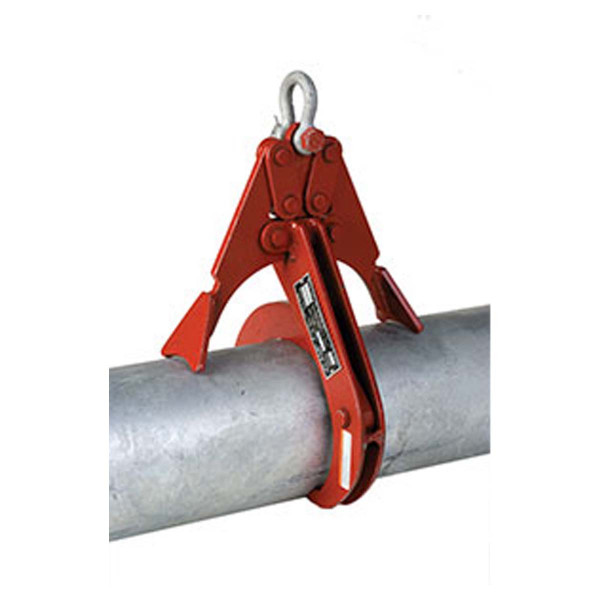

Crosby Clamp-Co Pipe Grabs

Crosby Clamp-Co Pipe Grabs provide an excellent means of handling cylindrical objects as long as they meet “Pipe O.D.” and “Working Load Limits” referenced in the table below.


  • 450 lbs. to 7,000 lbs.
  • Moveable outriggers help stabilize the load.
  • No blocking of load required.
  • Individually Proof Tested to 2 times the Working Load Limit with certification.
Crosby Logo

Description

  • Designed to handle loads of various types of material, including:
    – Cast Iron
    – Steel
    – PVC
    – C900
    – Yellowmine Ductile Iron
    – Cement Pipe
  • Finish – Red Paint.
  • Custom sizes are available.
  • All sizes are RFID EQUIPPED.

Note: Pipe grab sizes listed will handle all classes in a category of ASA standard cast iron pipe, C900, Yellowmine, Schedule 40, 80 & 120 PVC or ASA standard steel welded and seamless pipe. Standard, extra strong and double extra all have the same outside diameter.

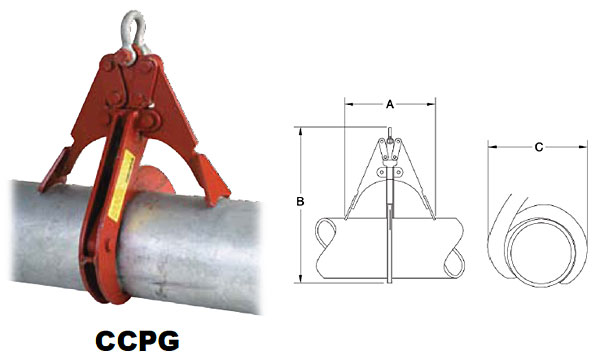

Clamp-Co Pipe Grabs (Crosby) Diagram

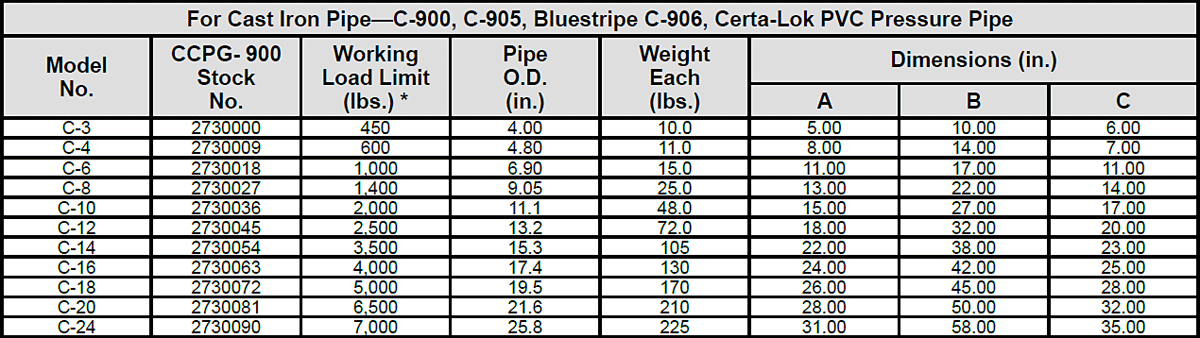

Clamp-Co Pipe Grabs (Crosby) Specs 1

* Maximum Proof Load is 2 times the Working Load Limit and design factor based on EN13155 and ASME B30.20.

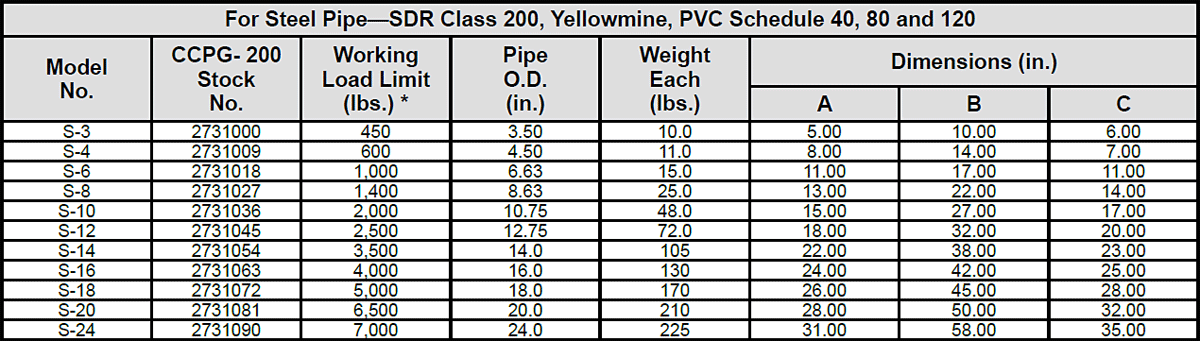

Clamp-Co Pipe Grabs (Crosby) Specs 2

* Maximum Proof Load is 2 times the Working Load Limit and design factor based on EN13155 and ASME B30.20.
