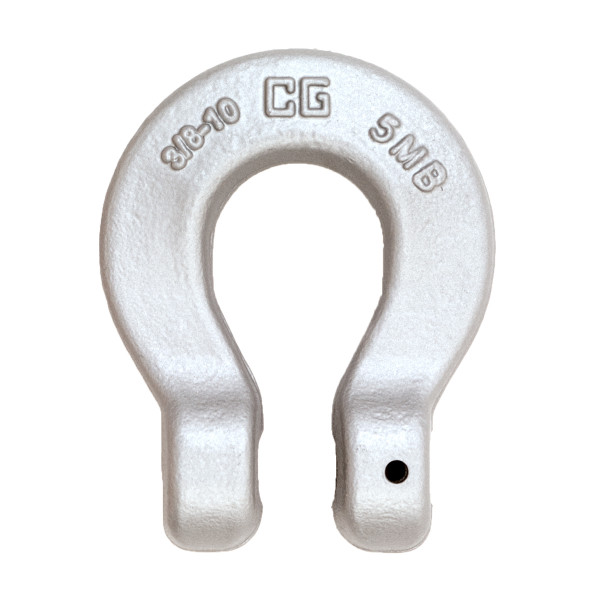

Crosby Grade 100 S-1325A Chain Coupler

  • Designed to connect Grade 100 chain fittings produced with “Engineered Flat” to Grade 100 chain.
  • Forged Alloy Steel – Quenched and Tempered.
  • Suitable for use with Grade 100 and Grade 80 chain.
  • Individually Proof Tested to 2-1/2 times the Working Load Limit with certification.
  • Locking system that provides for simple assembly and disassembly—no special tools required.
  • Fatigue rated at 1-1/2 times the Working Load Limit at 20,000 cycles.
  • Look for the Platinum Color – Crosby Grade 100 Alloy Products.

Description

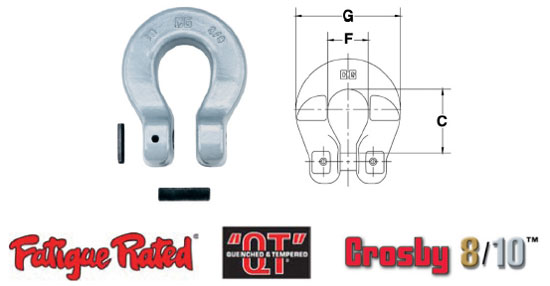

Grade 100 S-1325A Chain Coupler Diagram

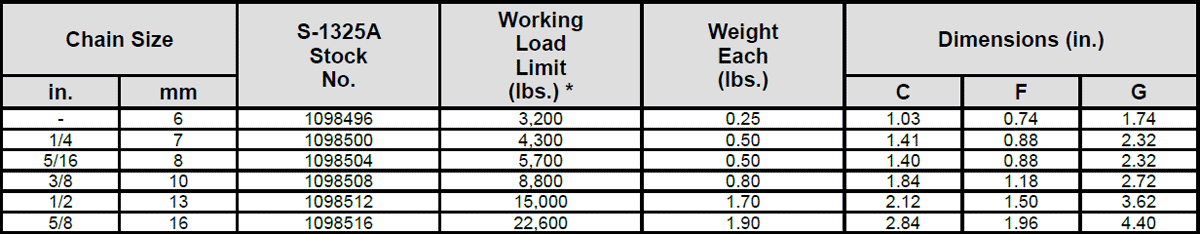

Grade 100 S-1325A Chain Coupler Specs

* Minimum Ultimate Load is 4 times the Working Load Limit.



All product warnings: Warnings Page
