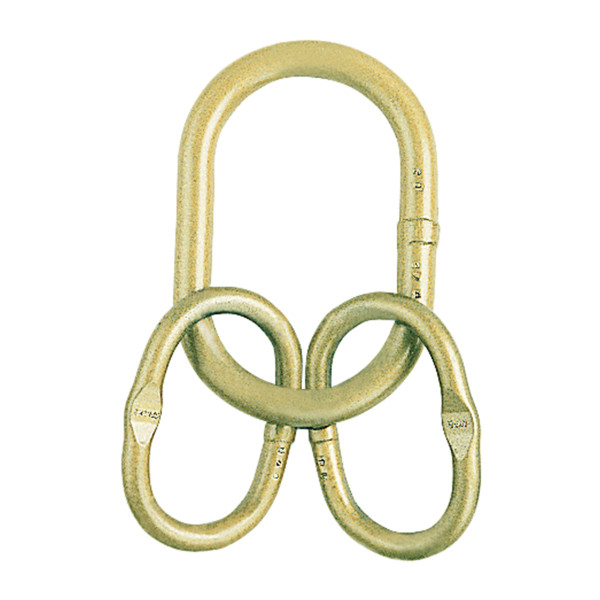

Crosby Grade 80 A-347 Welded Master Link Assembly with Engineered Flat

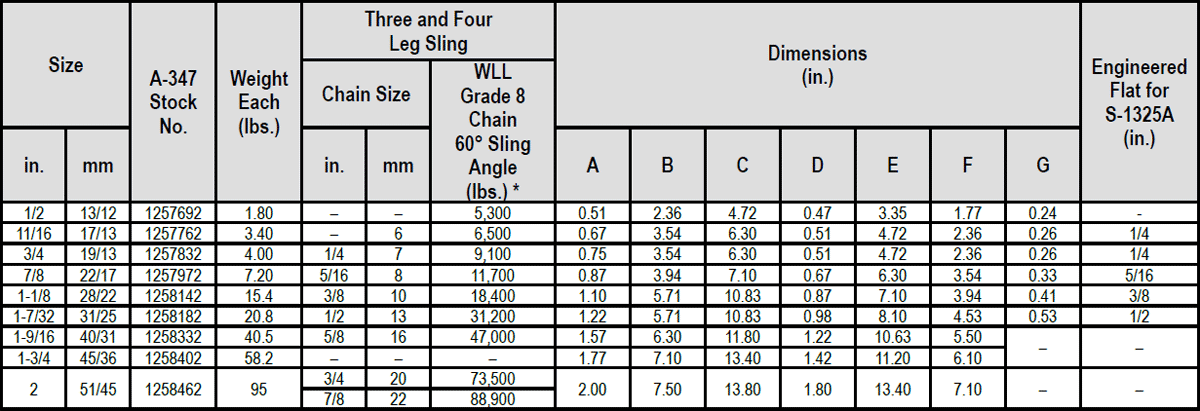

Ratings below are for use with chain slings fabricated in accordance with ASME B30.9.
Alloy Steel – Quenched and Tempered.
Individually Proof Tested with certification.
Proof Tested with 60% inside width special fixtures sized to prevent localized point loading per ASTM A-952.
Meets or exceeds all requirements of ASME B30.26 including identification, ductility, design factor, proof load and temperature requirements. Importantly, these links meet other critical performance requirements, including fatigue life, impact properties and material traceability, not addressed by ASME B30.26.
Each link has a Product Identification Code (PIC) for material traceability, along with the size and the name Crosby® or “CG”.
Large inside width and length to allow additional room for sling hardware and crane hook.
Engineered Flat for use with S-1325A coupler link.
