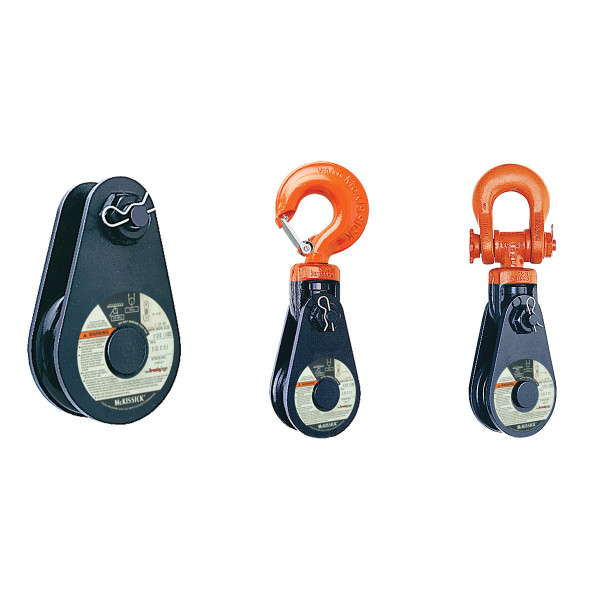

Crosby McKissick Snatch Blocks – Super Champion

Super Champion
  • Drop forged, heat treated swivel hook or swivel shackle.
  • Hook and shackle assemblies on 8” through 14” sizes can be interchanged.
  • Can be furnished with bronze bushings or roller bearings.
  • Pressure lube fittings.
  • 430 and 431 blocks have exclusive bolt retaining spring to assure no lost bolts.
  • Can be furnished with hook latch.
  • 8″ and 10″ models furnished with dual rated wireline sheaves.
  • Fatigue Rated.
  • All sizes are RFID EQUIPPED.
Category: Tags: , , , , , ,

Description

Meets or exceeds all requirements of ASME B30.26, including identification, ductility, design factor, proof load and temperature requirements. Importantly, these blocks meet other critical performance requirements, including fatigue life, impact properties and material traceability, not addressed by ASME B30.26.

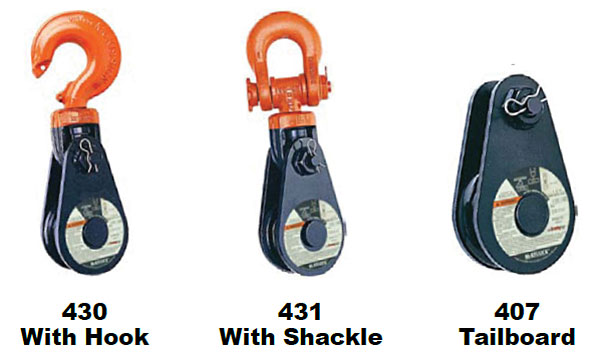

430 / 431 / 407 Snatch Blocks Types

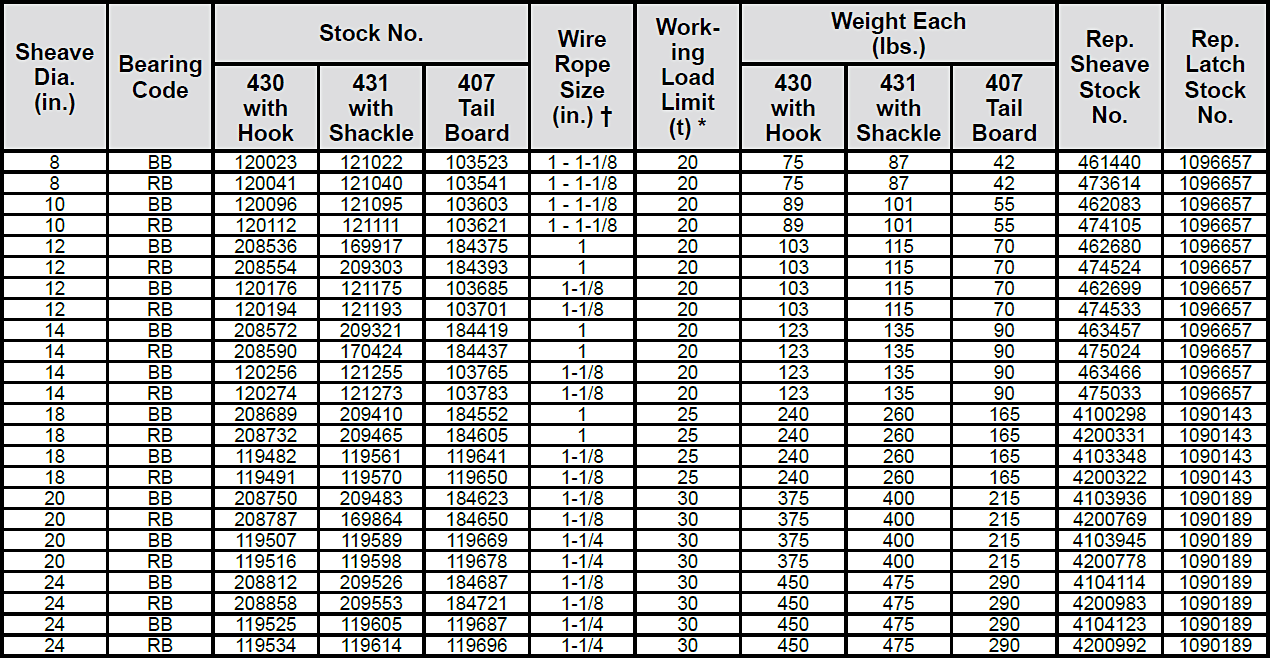

430 / 431 / 407 Snatch Blocks Specs

* Ultimate Load is 4 times the Working Load Limit.

† May be furnished in other Wire Rope sizes.

Note: When ordering, please specify: size, block number, hook or shackle, bronze bushed or roller bearing, and wire rope size.

Note: Tail Board does not contain the spool that is required with the hook (420) and shackle (421) snatch blocks.
