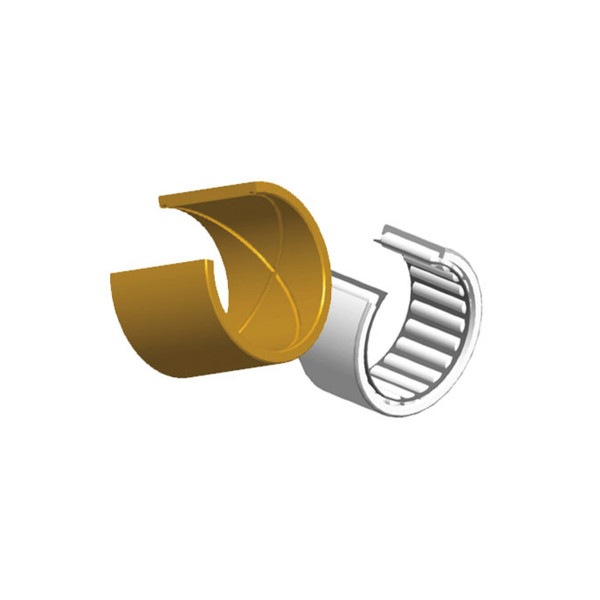

Crosby McKissick Standard Sheave Bearings

Standard Straight Roller Bearings

  • Heavier loads, higher speeds, more frequent use, radial loads only

Tapered Roller Bearings

  • Heavy loads, high speeds, continuous operation, axial and radial loads

Full Complement, Double Row, Roller Bearing

  • Heavy load, high speeds, continuous operation, axial and radial loads

Description

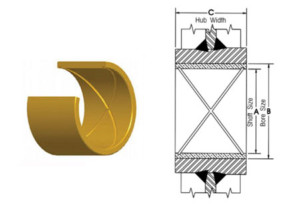

(B) Bronze Bushing—

Bronze Bushings with oil grooves are made from S.A.E. 660 bronze or cold finished shafts.

Bronze Bushing

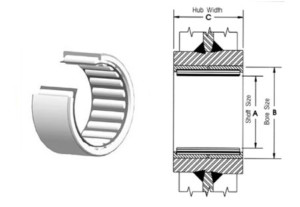

(R) Roller Bearings—

Roller bearings are designed to operate on shafts carborized to 60 Rockwell “C” and groove to +/- .0005 of shaft size.

Roller Bearings

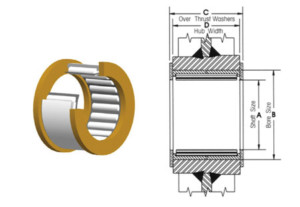

(W) Roller Bearing with Thrust Washers—

Roller bearings without inner races are designed to operate on shafts carborized to 60 Rockwell “C” and grooved to +/- .0005 of shaft size.

Roller Bearing with Thrust Washers

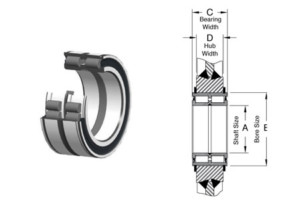

(C) Full Complement Cylindrical Roller Bearing—

Cylindrical roller bearings with snap ring grooves are complete units with outer and inner rings, rib guided cylindrical rollers and sealing rings. They can support axial forces in both directions, as well as radial forces. They have high dynamic and static load ratings.

Full Complement Cylindrical Roller Bearing

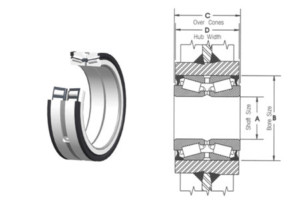

(T) Tapered Roller Bearing—

Tapered bearings are designed to operate on shafts machined to +/- .0005 of shaft size. Applications should provide for tightening separator plates against bearing cones to adjust and insure proper function of bearings.

Tapered Roller Bearing
