Crosby McKissick UB500 Series Non-Swiveling Overhaul Balls

  • Sizes 4 tons through 10 tons available with Crosby’s S1316A “Positive Locking” SHUR-LOC® hook which may be used for lifting personnel. Meets OSHA Rule 1926.1431(g).
  • Design Factor 4:1.
  • Each ball can be equipped with the new McKissick® US-422T Wedge Socket which can be easily adjusted to fit various sizes of wire rope by changing the wedge (Ensure that correct wedge is used for selected wire rope size).
  • All hooks used on UB500 Overhaul Balls (S320, S320N & S1316A) are forged from alloy steel. The S320 and S320N hooks come complete with latches.
  • The S320 hook (PL latch) and the S320N hook (S4320 latch), with the proper latch attached, may be used for personnel lifting when secured with proper device (Bolt, nut and pin for the PL latch; Cotter pin for the S4320 latch). Meets OSHA Rule 1926.1431(g).
Crosby Logoupdated-mckissick-logo-01

Description

Key to McKissick® UB500 Utility Overhaul Ball Model Number

UB500 Series Non-Swiveling Overhaul Balls Types

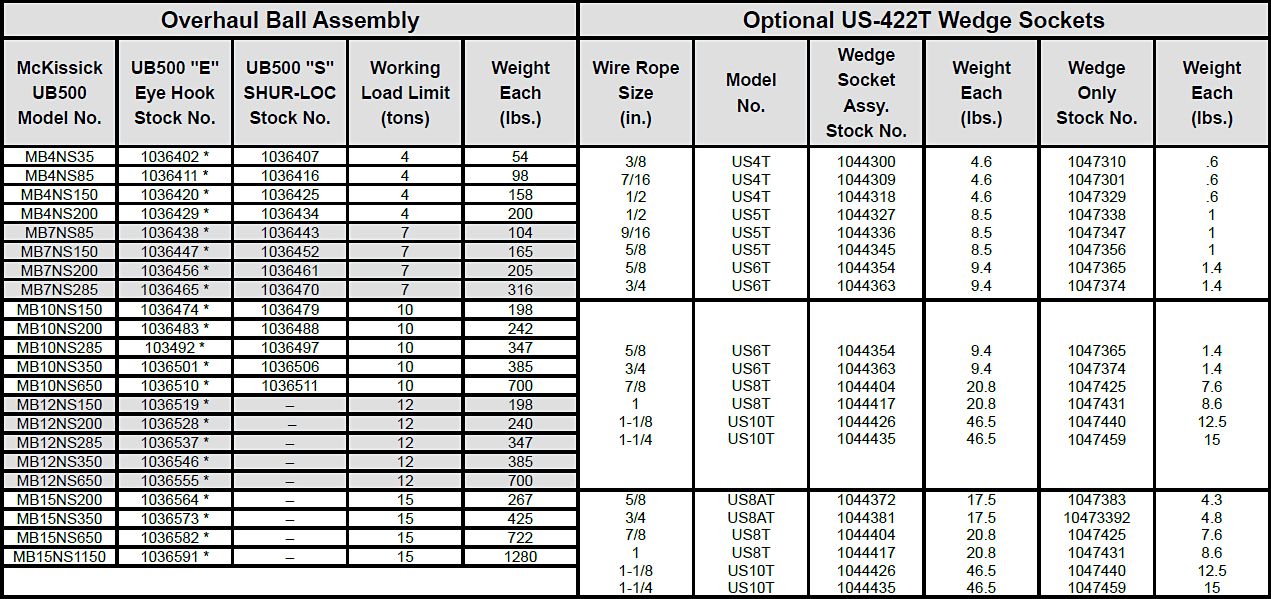

UB500 Series Non-Swiveling Overhaul Balls Specs 1

UB500 Series Non-Swiveling Overhaul Balls Specs 2
