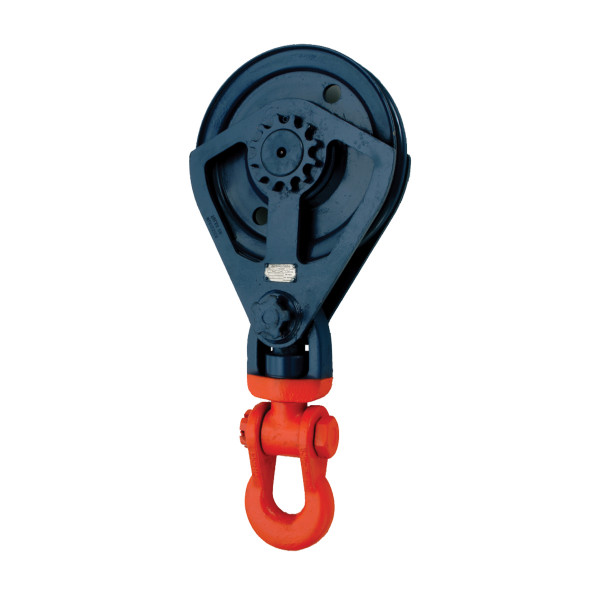

Crosby McKissick High Capacity Snatch Blocks

TU-480 / TU-481 / TU-482 / TU-483 / TU-484 High Capacity Snatch Blocks

  • Wide Range of Sizes Available: – 30 and 60 Ton Capacity – 1″ to 2-1/4″ Wire Line Size
    – 16″ to 24″ Sheave Diameter
    – Larger Capacity Blocks available.
  • Multiple Configurations Available: – Swivel Hook
    – Swivel Shackle
    – Tailboard – Upset Shackle
    – Fixed Shackle
  • McKissick Roll-Forged Sheaves:
    – Flame Hardened Grooves
    – 30 Ton furnished with Roller Bearings – 60 Ton furnished with Tapered Roller Bearings with seals
  • All sizes are RFID EQUIPPED.
Crosby Logoupdated-mckissick-logo-01

Description

Meets or exceeds all requirements of ASME B30.26 including identification, ductility, design factor, proof load and temperature requirements. Importantly, these blocks meet other critical performance requirements including fatigue life, impact properties and material traceability, not addressed by ASME B30.26.

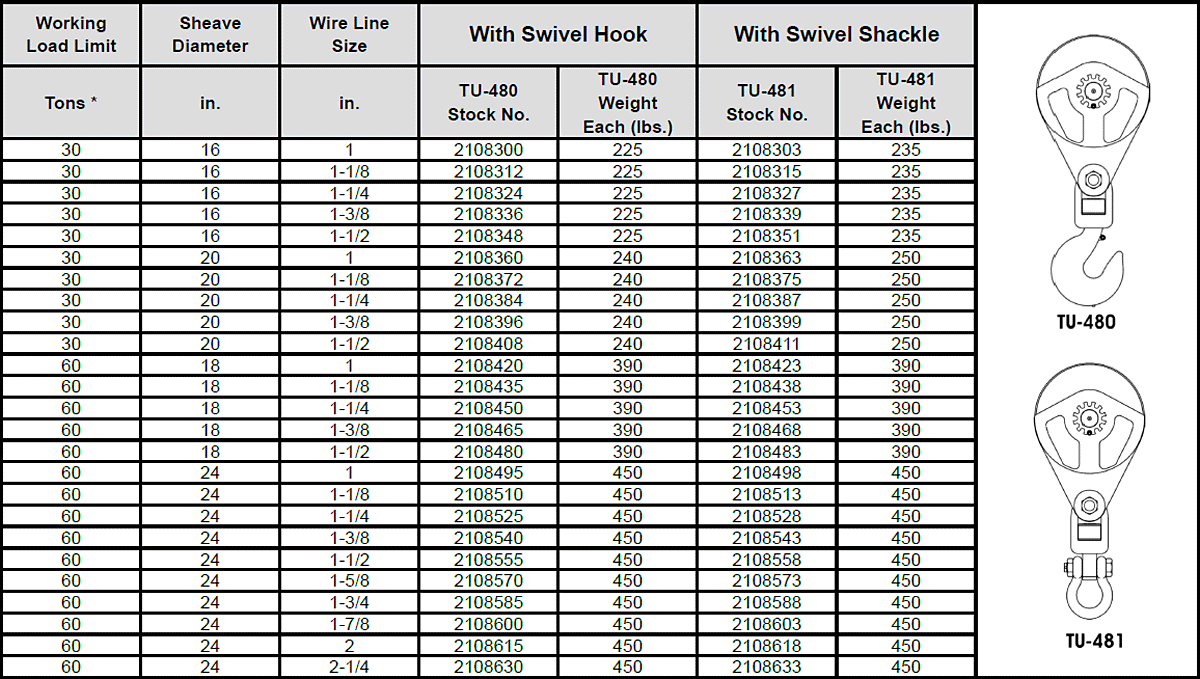

TU-480 / TU-481 High Capacity Snatch Block Specifications

TU-480 / TU-481 / TU-482 / TU-483 / TU-484 High Capacity Snatch Blocks for Tilt-Up Wall Construction Specs 1

* Ultimate Load is 4 times the Working Load Limit. Contact your Lifting Specialist for blocks up to 350 Tons.

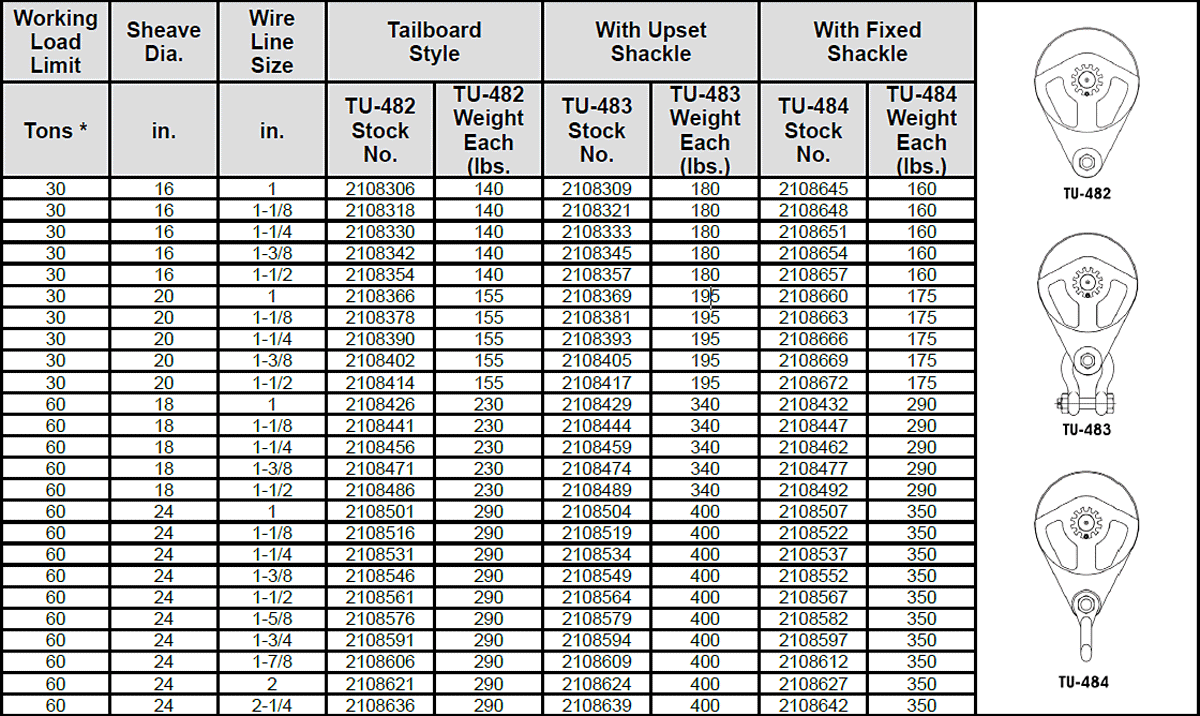

TU-482 / TU-483 / TU-484 High Capacity Snatch Block Specifications

TU-480 / TU-481 / TU-482 / TU-483 / TU-484 High Capacity Snatch Blocks for Tilt-Up Wall Construction Specs 2

* Ultimate Load is 4 times the Working Load Limit. Contact your Lifting Specialist for blocks up to 350 Tons.
