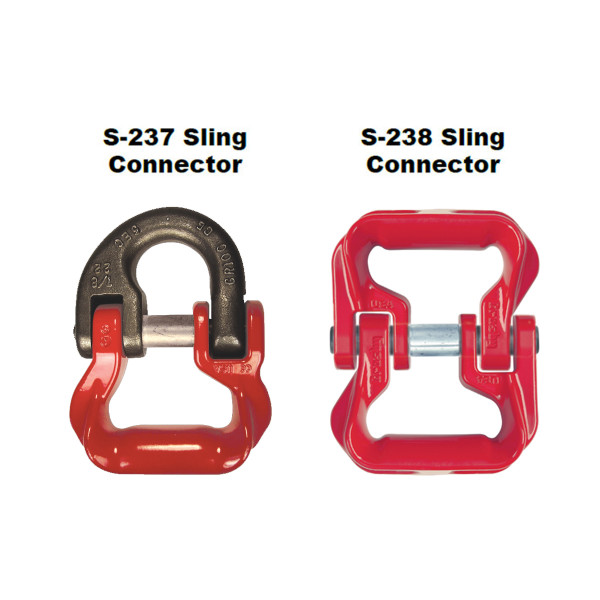

Crosby S-237 / S-238 High-Performance Sling Connectors

High-Performance Sling Connector is designed to connect High-Performance Synthetic Slings of all materials.

  • Capacities available:
    – Working Load Limit (5 to 1): 5,000 through 60,000 lbs.
    – Sling Body Widths: 2″ through 6″.
  • Allows easy connection to master links or eye hooks, and is ideal for bridles.
  • Increased radius of bow gives wider sling bearing surface resulting in an increased area for load distribution, thus:
    – Increasing Synthetic Sling efficiency as compared to master links, shackle bows and conventional eye hooks. This allows 100% of the slings rated Working Load Limit to be achieved.
    – Allows better load distribution on internal fibers.
  • All Alloy Construction
  • Design Factor of 5 to 1.
  • Individually Proof Tested at 2.5 times the Working Load Limit.
  • Each connector has a Product Identification Code (PIC) for material traceability, along with a frame size, and the name Crosby and USA in raised letters.

Description

S-237 High-Performance Sling Connector

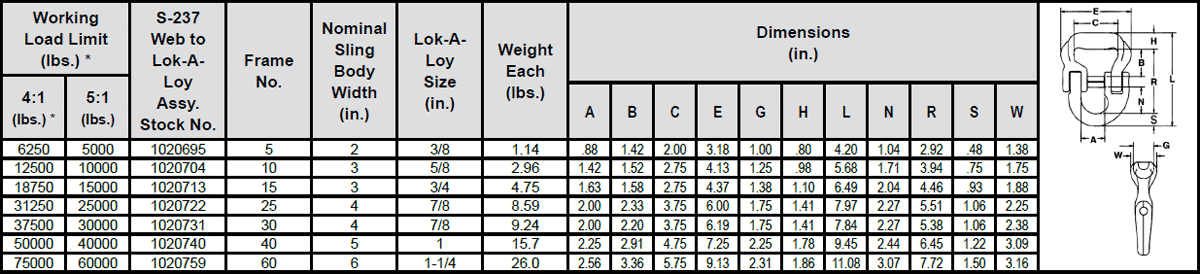

S-237 High-Performance Sling Connector Specs

* Maximum Proof Load is 2 times the Working Load Limit at 4:1 design factor. Minimum Ultimate strength is 5 times the Working Load Limit.




S-238 High-Performance Sling Connector

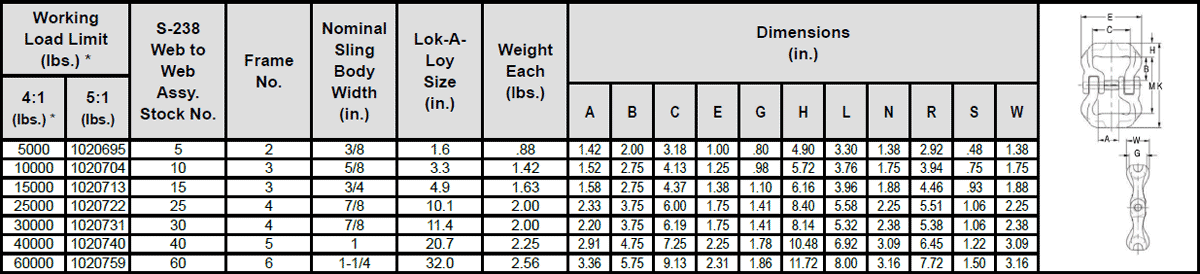

S-238 High-Performance Sling Connector Specs

* Maximum Proof Load is 2.5 times the Working Load Limit. Minimum Ultimate strength is 5 times the Working Load Limit.

Crosby Sling Saver hardware meets the requirements for minimum stock diameter or thickness, and effective contact width shown in the Recommended Standards Specification for Synthetic Polyester Round Slings by the Web Sling & Tie Down Association. WSTDA-RS1 (revised 2010).
