Strand Laid Grommets

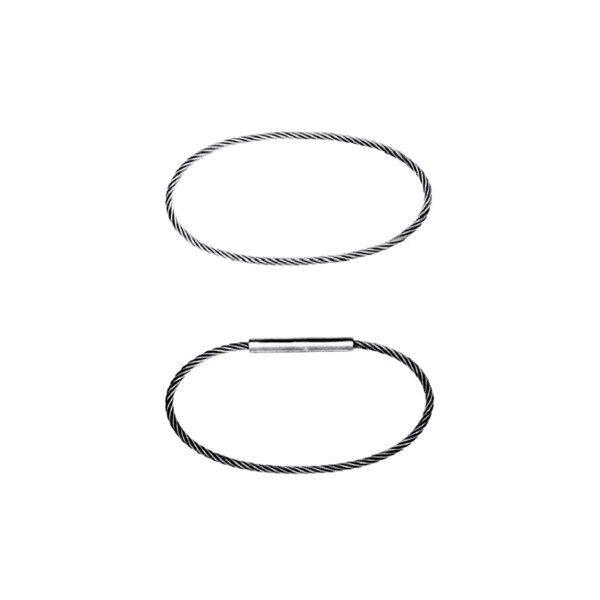

Strand Laid Grommets have either a wire rope body, or a body of six ropes laid helically around a strand core, with either a hand tucked or a mechanical splice to form an endless body. Minimum circumference of the sling is 96 times the grommet body diameter.

Category: Wire Rope SlingsTags: sling, wire rope, slings, grommet, strand liad

Description
Warnings

Description

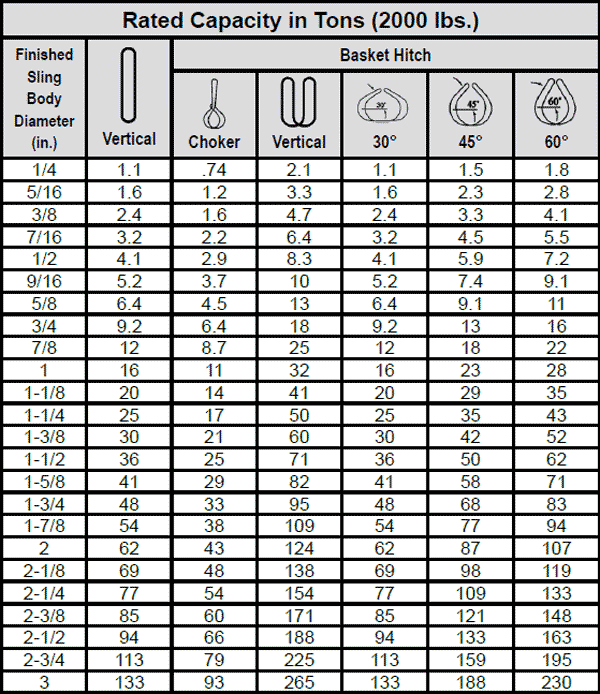

Hand Tucked Spliced Continuous Construction

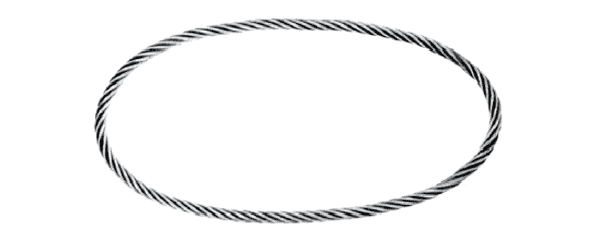

Strand laid grommets are made from one continuous strand of wire rope.

6 x 19 and 6 x 36 Class—Fiber Core EIPS

Rated capacities basket hitch and vertical lift based on D/d ratio of 5 where “d” = body diameter of the finished grommet and “D” is the diameter of the pin

Rated capacities based on design factor of 5

Rated capacities based on pin diameter no smaller than 5 times the body diameter

Horizontal sling angles less than 30 degrees shall not be used

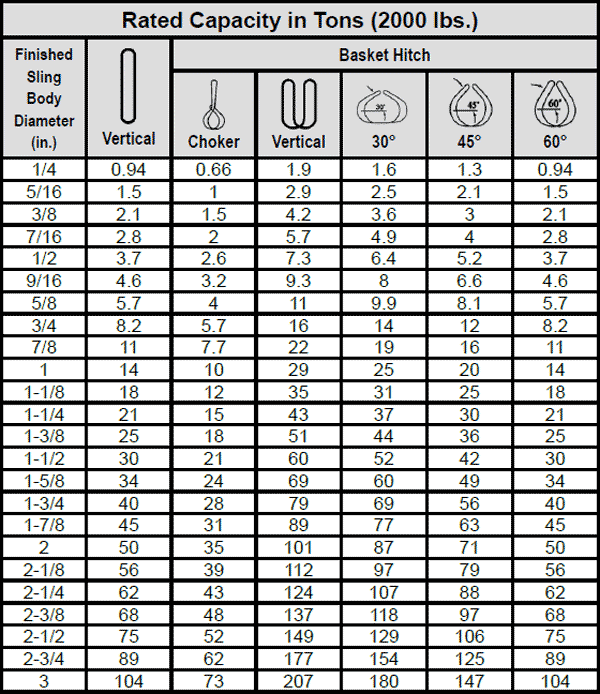

Mechanical Splice

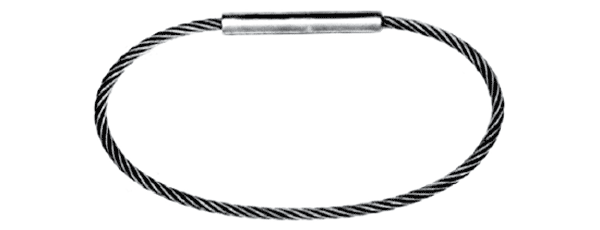

Strand laid grommets with a single-part wire rope sling body.

6 x 19 and 6 x 36 Classification—EIPS-IWRC
