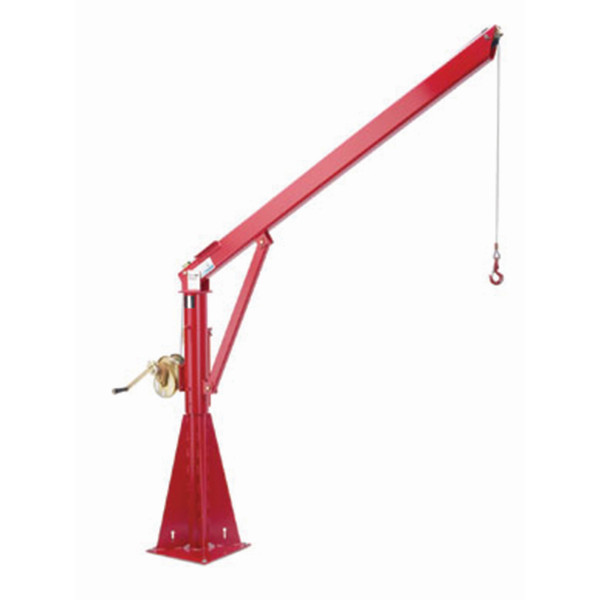

Thern Stationary Davit Cranes

Thern Stationary Davit Cranes—Lift up to 2,200 Lbs.

Lift up to 2,200 lbs. with a Thern stationary davit crane. Available with fixed or adjustable booms, Thern’s stationary davit cranes provide the necessary stability for lifting larger loads through longer distances. Ideal for use in a variety of wastewater and bulk handling applications, Thern stationary davit cranes are designed for permanent installation to solid foundations.

thern

Description

Thern stationary davit cranes are mounted on a gusset style base for permanent installation and stability under load and includes the following features:
  • Hand winch operated models include spur gear or worm gear hand winch with brake for load control.
  • Power winch operated models include 115 volt 1 phase AC electric winch with pendant control and brake.
  • Standard fixed boom is fixed in boom position C.
  • Optional adjustable boom can be adjusted between boom positions A and D.
  • Optional hand operated ratchet style screw jack adjusts height and reach.
  • Mast and boom rotate 360° on tapered roller bearings for smooth load movement. Mast locks in one of four positions with hand tightened lock bolt.
  • Wire rope assemblies are sold separately.
571 Series stationary davit cranes lift up to 1,500 lbs.
572 Series stationary davit cranes lift up to 2,200 lbs.
