Walker Magnetics RLSD-Series Steel Mill Magnets

Uses:

Scrap processing operations

Standard Features & Benefits:

  • 75% Duty Cycle
  • All welded heavy duty construction
  • Cool operating
  • Class H insulation
  • Powerful deep field design
  • Aluminum Coil standard, Copper optional
  • Quick disconnect lead assembly
  • Voltages – 230 VDC, 230/180 VDC, 230/140VDC
Category: Tags: , ,
walker magnetics

Description

Rectangular shaped scrap magnets are the newest development from Walker Magnetics. Designed to lift large volumes of scrap in and out of confined areas, these powerful scrap magnets are becoming the standard in melt shops around the world.

They can help you keep your new high capacity furnaces full. Since new furnaces refine metal fast, they need more scrap to process. A Walker RLSD scrap magnet adds up to 50% more lift capacity to each load. Unlike round magnets that can’t lift scrap out of corners effectively, the RLSD is designed to get into corners of railroad cars and clean them out.

Extra heavy-duty construction with unique Multiple Bumper Perimeter Plates and resilient manganese steel bottom plates make this the toughest scrap magnet ever! Available in a wide variety of sizes, these tough welded RLSDs operate cool 24 hours per day, 7 days per week.

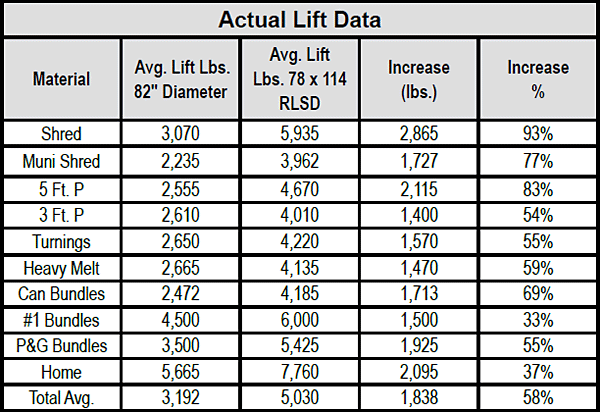

RLSD-Series Steel Mill Magnets chart 1
