Description
Braided 6-Part Single-Leg Wire Rope Slings
Sling capacities for rope diameters 1/8” through 5/16” are based on using 7 x 19 G.A.C. wire rope.
* Rated capacities basket hitch based on D/d ratio of 25 times the component rope diameter.
Rated capacities based on pin diameter no larger than the natural eye width or no less than the nominal sling diameter.
Rated capacities based on design factor of 5.
Horizontal sling angles less than 30° degrees shall not be used.
** See Choker Hitch Rated Capacity Adjustment

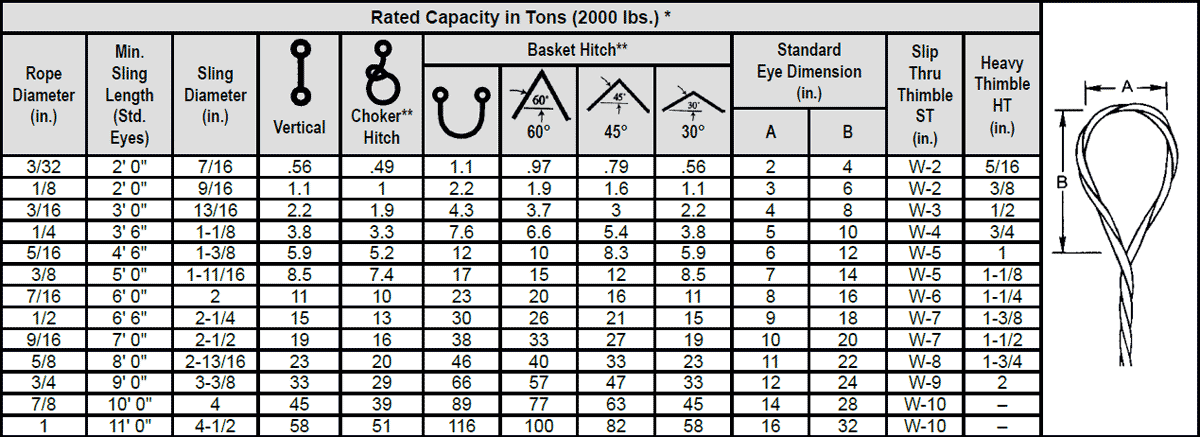

Braided 8-Part Single-Leg Wire Rope Slings
Sling capacities for rope diameters 1/8” through 5/16” are based on using 7 x 19 G.A.C. wire rope.
* Rated capacities basket hitch based on D/d ratio of 25 times the component rope diameter.
Rated capacities based on pin diameter no larger than the natural eye width or no less than the nominal sling diameter.
Rated capacities based on design factor of 5.
Horizontal sling angles less than 30° degrees shall not be used.
** See Choker Hitch Rated Capacity Adjustment
