Bridon Dyform® 18

Main Hoist Rope & Whipline Hoist Rope

  • Rotation Resistant Dyform Hoist Rope
  • Long service life
  • Crush Resistant
  • Recommended for multi-layer spooling
  • Suitable for single-part and multi-part reeving

Contact a Lifting Specialist for more details and product specifications.

Bridon Bekaert Logo


  • High strength Rotation Resistant rope incorporating Dyform strands—confirmed by Bridon’s “Powercheck” testing of a sample from each production length.
  • Good resistance to rotation confirmed by Bridon’s unique “Twistcheck” type testing program.
  • Superior bending fatigue life when compared with conventional multi-strand ropes—confirmed by laboratory testing and extensive field experience.
  • Excellent resistance to crushing and abrasion resulting from the overall compactness and robustness of the rope and the Dyform strands—recommended when multi-layer spooling is involved.
  • Reduced elongation results from increased steel content and the Dyform process.
  • Optional plastic coating of IWRC to further extend fatigue life, improve structural stability and resistance to corrosion.

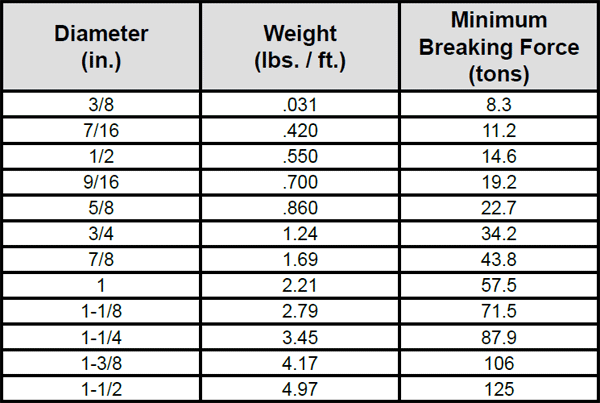

Endurance Dyform 18/18PI Wire Rope: Chart 1


All product warnings: Warnings Page
