Cable Laid Wire Rope Slings

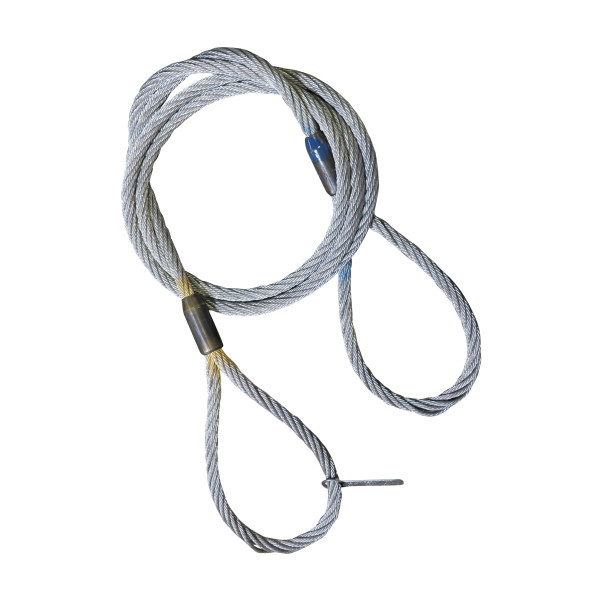

Mechanical Splice Cable Laid Body Wire Rope Sling

Cable laid wire rope slings are smooth and very flexible slings made from cut lengths of cable-laid fabric that is machine-formed by laying six wire ropes in a helical pattern around a core rope.

Flemish eye mechanical splices, secured by swaged metal sleeves, provide centerline pull at the eyes. They are more flexible, and the same capacity as single-part slings.

Ideal for use as basket or choker hitches, where flexibility and ease of handling are essential, and cutting or abrasion is not a critical factor.

Mazzella Companies Logo

Description

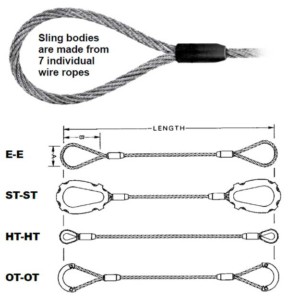

Cable Laid Wire Rope Slings Diagram

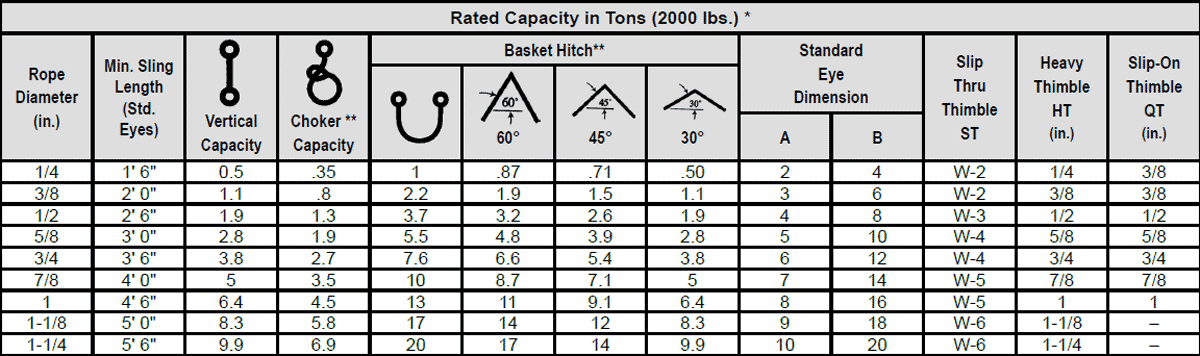

Cable Laid Wire Rope Slings Specs

* Rated capacities basket hitch based on D/d ratio of 10 or greater.

Rated capacities based on pin diameter no larger than the natural eye width or no less than the nominal sling diameter.

Rated capacities based on design factor of 5.

Horizontal sling angles less than 30 degrees shall not be used.

** See Choker Hitch Rated Capacity Adjustment.



All product warnings: Warnings Page
