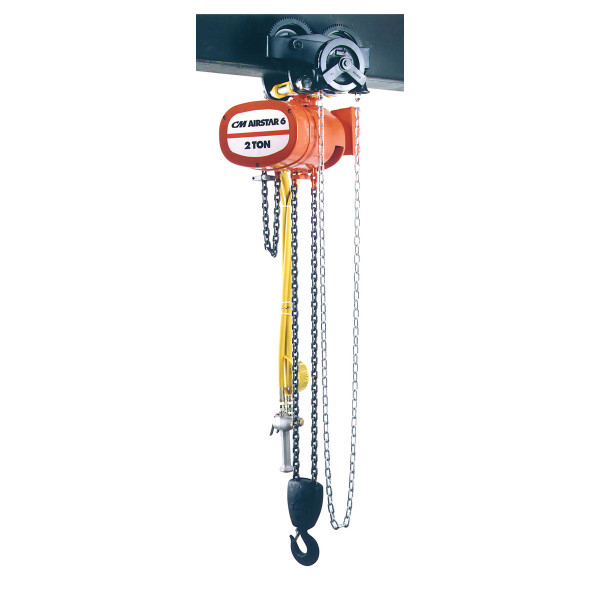

CM AirStar 6 Air Hoist

1, 2 and 3 Ton Capacities (Spark Resistant Models are rated at 1/2, 1 and 2 Ton Capacities) with 10-Foot Standard Lift—Longer lifts are optional.

The CM AirStar 6 Air Hoist features variable speed pneumatic power in a compact lightweight hoist for general industrial applications lifting loads of 1 to 3 tons.

CM Logo

Description

Features & Benefits:

  • Hoistaloy load chain for heavy-duty or stainless steel chain for spark resistant, medium-duty loads
  • Lightweight aluminum frame and cover
  • Positive action, spring biased Weston-type load brake holds the load, provides exacting load spotting and control
  • Multi-vane rotary air motor with eight vanes for high torque, smooth operation and positive starting
  • Precision cut heat-treated helical and spur gear combination for quiet, efficient operation
  • Pendant throttle handle is full flow design for precision throttle capabilities
  • Spark resistant models available for hazardous environments
  • Hook or lug suspension available
  • Standard overload protector device
  • Internal Muffler—reduces sound level
  • Throttle Valve—precision throttle valves meter the air for smooth operation
  • Chain container optional
  • Lifetime warranty
  • Metric rated
  • Made in U.S.A.

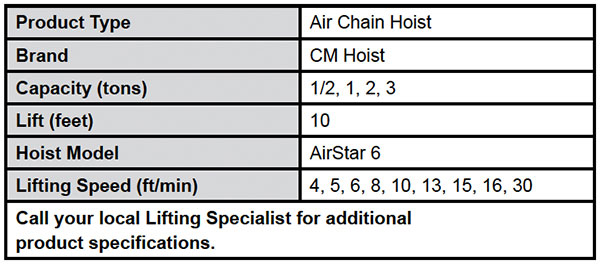

AirStar 6 Air Hoist Specs

NEED HOIST REPAIR OR PARTS?

We do repairs in-house and stock a full line of parts.
