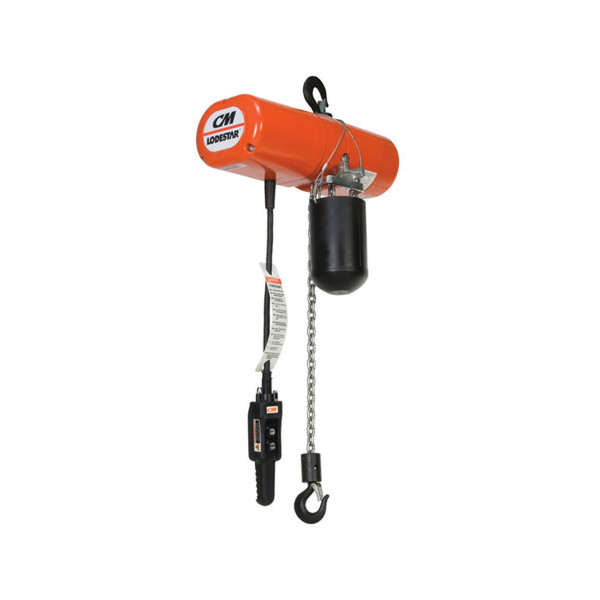

CM Lodestar Electric Chain Hoist With Variable Frequency Drive

1/8, 1/4, 1/2, 1, 2 and 3 Ton Capacities with 10, 15 and 20-Foot Standard Lift—Longer lifts are available.

For versatility and ultimate control, choose the CM Lodestar electric chain hoist equipped with an under-the-cover Variable Frequency Drive.

CM Logo


Features & Benefits:

  • Voltages—available on 3-phase, 460 volt and 230 volt models
  • 6:1 speed ratio
  • Fault history
  • Phase loss protection
  • VFD programmable to customer’s exact voltage requirements.
  • Motor thermal overload protection
  • Adjustable ramp time and speeds. Three second ramp time between minimum and maximum speed setting.
  • 3-step robust nema 4x control station
  • 3-step infinitely variable control standard provides acceleration and deceleration for full load control and precise positioning.
  • Soft starts increase the life of gear train components, load chain, hooks and brake components.
  • Electronic reversing eliminates the need for magnetic contractor and speed relay controls.
  • Minimum and maximum speed settings with the ability to choose intermediate speeds during operation without timely programming or upgrades.
  • 115 volt interface card standard allows for integration into existing bridge and crane systems without upgrades or modifications to the hoist VFD controls.

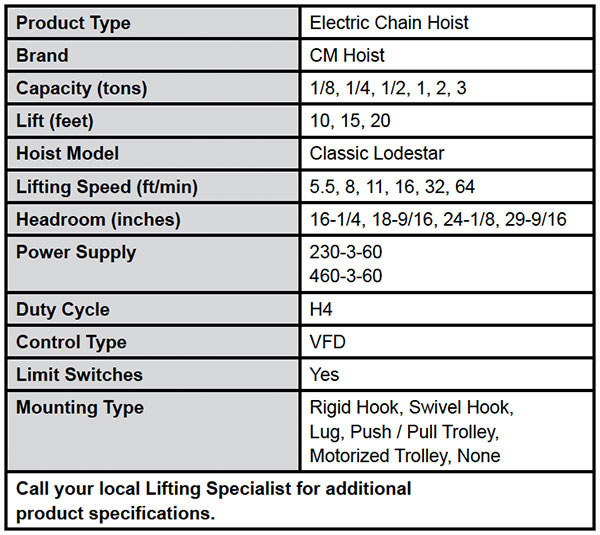

Lodestar Electric Chain Hoist With Variable Frequency Drive Specs

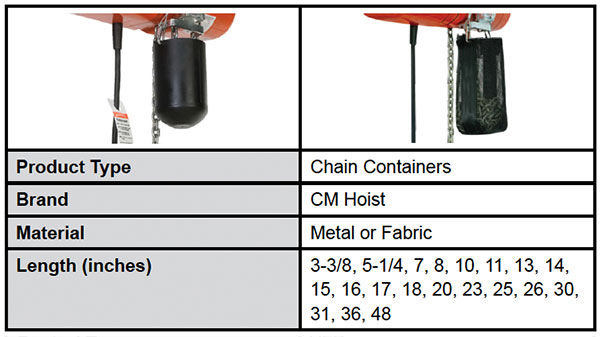

Lodestar Electric Chain Hoist With Variable Frequency Drive Chain Containers Specs


We do repairs in-house and stock a full line of parts.
