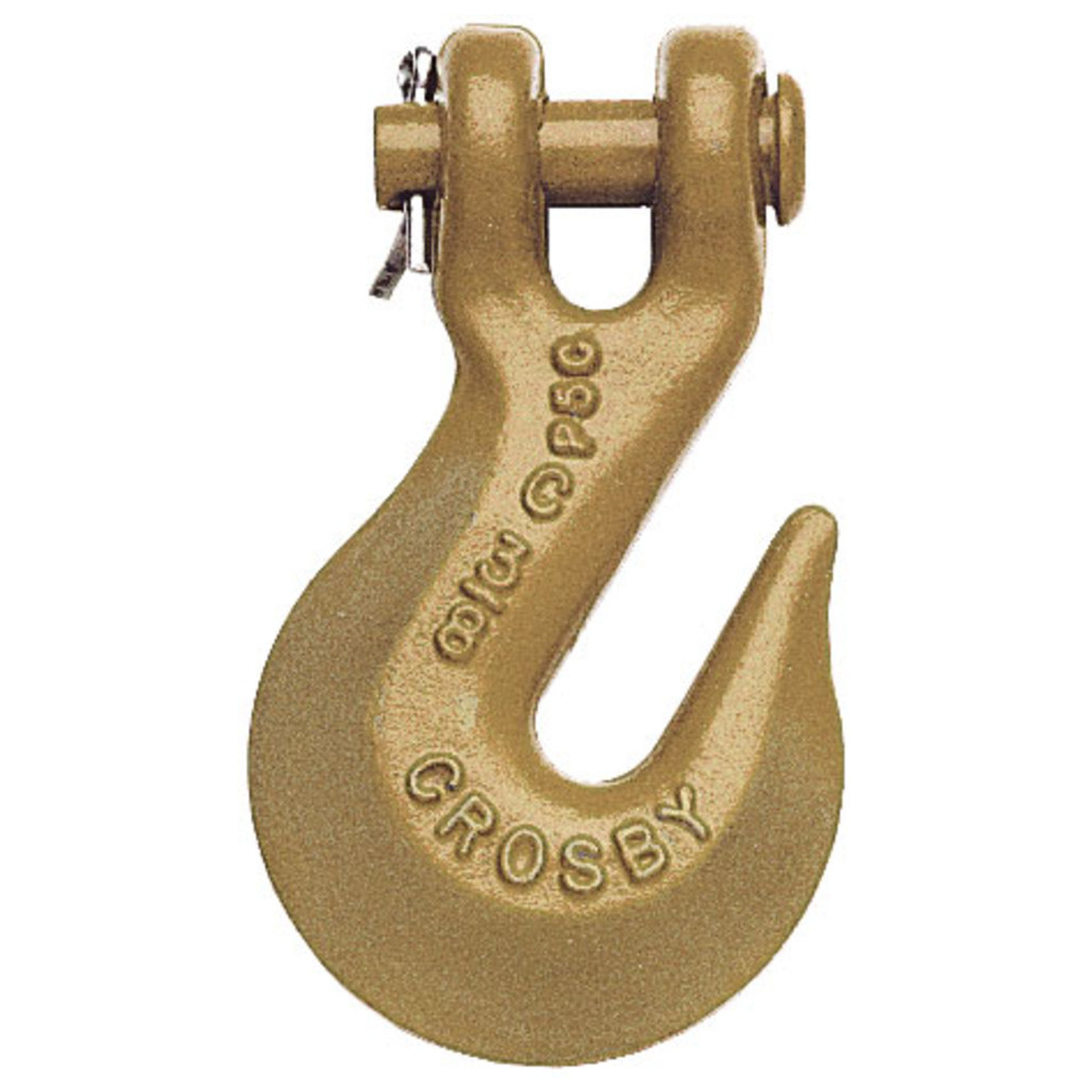

Gold clevis grab hook for chain, shown at an angle on a white background

Crosby A-330 Clevis Grab Hooks

Forged Steel – Quenched and Tempered.
Design factor is 4:1.
Features quick and easy assembly.
A-330 designed for Crosby Spectrum 7^® chain.

Category: Hooks Tags: clevis, grab hook, hook

Description

Description

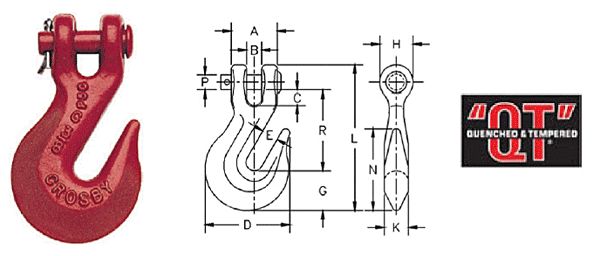

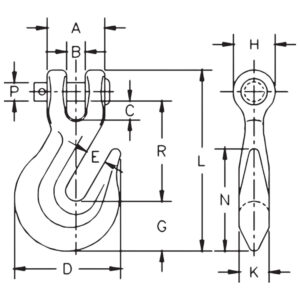

Dimensioned line drawings of a clevis grab hook shown in two orientations

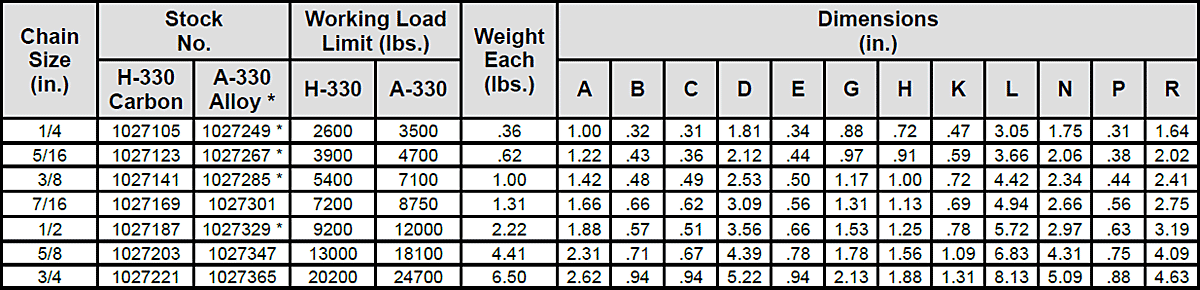

H-330 / A-330 Clevis Grab Hooks Specs

* These A-330 hooks are forged with an “8” designating Grade 80, and are suitable for use with Grade 8 chain in over head lifting applications as long as hook is proof-tested as part of the chain sling assembly or as an individual component per ASME B30.9. We recommend the use of the A-338 which is proof tested and supplied with a proof test certificate.
