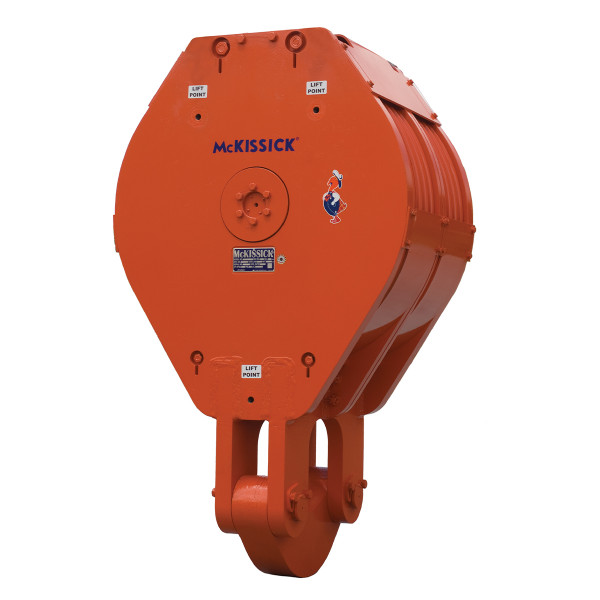

Crosby McKissick RP Style Traveling Blocks

  • Capacities Available: 250, 350, 500, 750 and 1000 Tons
  • Double row, pre-adjusted tapered bearings with seals.
  • Blocks contain McKissick® Roll-ForgedTM sheaves with flame hardened grooves.
  • Grooves are API profile.
  • Separate lubrication channel to each sheave.
  • Easy opening guards for quick string-up (no bolts to pull out and lose).
  • Bail design to adapt to comparable capacity drilling equipment.
  • Additional weights available upon request.
  • Manufactured to the requirements of API 8C, including all documentation.
  • Each block is individually serialized for full traceability.
  • Furnished with Certificate of Conformance.
  • Minimum design temperature of -20°C (-4°F).
  • Standard top coat finish is safety orange enamel.
  • All sizes are RFID EQUIPPED.
  • Other paint colors and systems are available on request.
  • Individual parts are primer coated on exposed surfaces.
  • Block side plates can be drilled to adapt customer supplied equipment.
  • Easy bail pin removal.


RP Style Traveling Blocks Diagram

RP Style Traveling Blocks Specs

* Additional wire rope sizes are available.
