Crosby WS-320A Sling Saver Synthetic Sling Hooks

  • Hook capacities available: 1-1/2, 3 and 5 metric tons.
  • All Alloy construction.
  • Design factor of 5 to 1.
  • Each hook has a Product Identification Code (PIC) for material traceability along with a working load limit and the name Crosby forged into it.
  • Originally designed for 2-Ply Web slings, the Crosby Web Sling hook can also be used with Round Slings as long as the Working Load Limit ratings are compatible. The new hook incorporates the following features:
  • Eye is designed with a wide beam surface which:
    – Eliminates bunching effects.
    – Reduces sling tendency to slide.
    – Allows a better load distribution on internal fibers.
  • All hooks feature Crosby’s patented QUIC-CHECK® indicators.
  • Hook Web Sling Eye width available: 1″, 2″ and 3″.
  • Fatigue rated to 20,000 cycles at 1-1/2 times the Working Load Limit.
Category: Tags: , , ,

Description

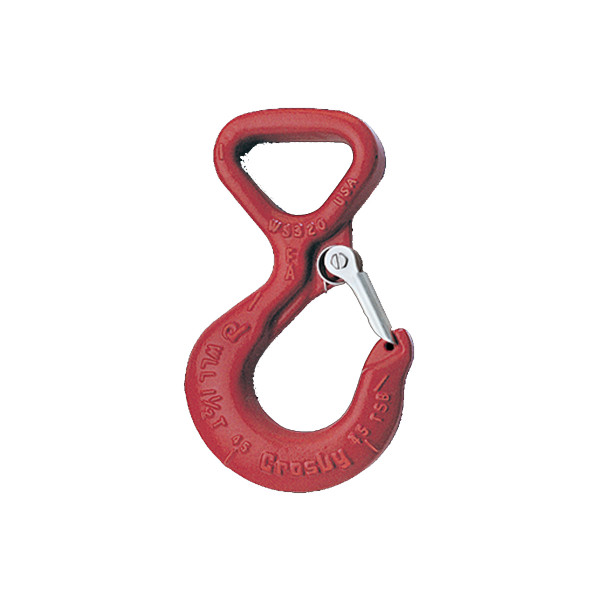

Crosby WS-320A Synthetic Sling Hook

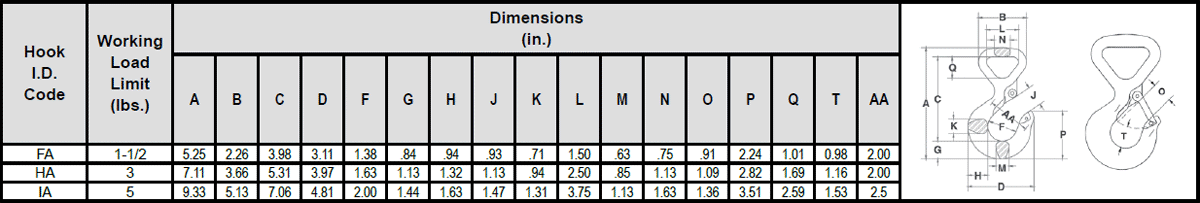

WS-320A Synthetic Sling Hook Specs 1

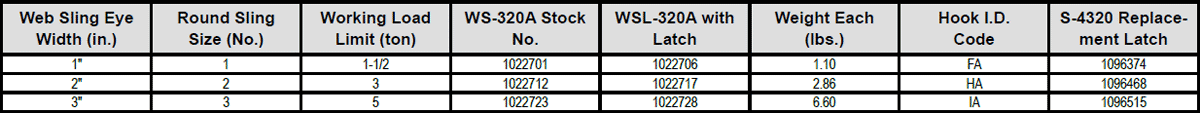

WS-320A Synthetic Sling Hook Specs 2

* Maximum Proof Load is 2-1/2 times the Working Load Limit. Average straightening load (ultimate load) is 5 times the Working Load Limit.

Crosby Sling Saver hardware meets the requirements for minimum stock diameter or thickness, and effective contact width shown in the Recommended Standards Specification for Synthetic Polyester Round Slings by the Web Sling & Tie Down Association. WSTDA-RS1 (revised 2010).



All product warnings: Warnings Page
