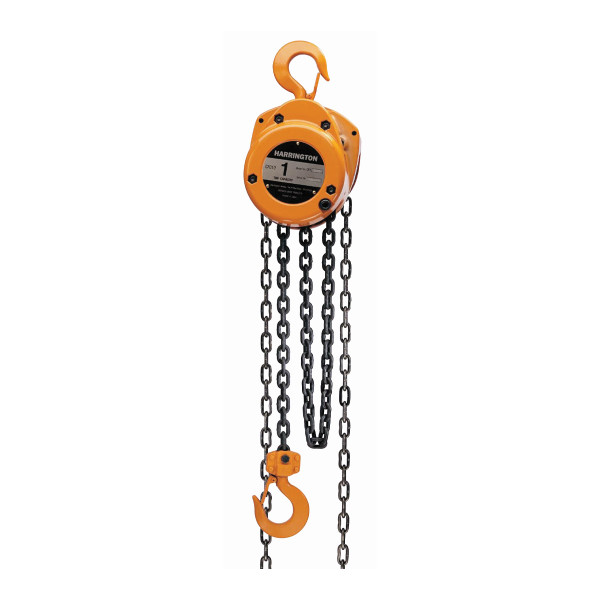

Harrington CF Hand Chain Hoist

1⁄2, 1, 1-1/2, 2, 3 and 5 Ton Capacities with 10-Foot Standard Lift

Harrington CF hand chain hoists give you a practical alternative thanks to an economical design using fewer parts for trouble-free service. Outstanding durability is due to a die-cast aluminum body and high-strength, heat-treated main pinion shaft and load gear. Pre-lubricated ball bearings, precision machined gears and Weston-style load brake make lifting smooth and easy, while allowing long service and low maintenance.

Category: Tags: , , ,
Harrington Logo

Description

Features & Benefits:

  • Experience exceptional strength with a thick die-cast aluminum body.
  • Handle tough demands with high-strength, heat-treated main pinion shaft and load gear.
  • Get positive braking action with Weston-style load brake incorporating two moisture-resistant brake pads with four braking surfaces.
  • Minimize manual effort thanks to smooth running, pre-lubricated ball bearings and precision machined drive train components.
  • Simplify maintenance with fewer parts and an easy-to-work-on design.

Capabilities:

  • 10-foot lift is standard, 15 and 20-foot lifts are also stocked; nonstandard lifts and hand chain drops are available as well.
  • Grade 100 heat-treated manganese alloy load chain resists abrasion and wear while minimizing chain weight.
  • Forged and heat-treated alloy steel hooks are designed to open slowly and not fracture under excessive loads.
  • Test certificate verifies that every hoist has been factory load tested to 125% of rated capacity, in accordance with ASME B30.16 requirements.

Options:

  • Chain container
  • Corrosion-resistant chain
  • Inspection hook

CF Hand Chain Hoist Specs
