Industrial Magnetics MAG-MATE DynamicLift Magnets

Lightweight and powerful Rare Earth permanent lift magnets can be used on flat or round surfaces and contain an internal release On / Off device that does not contact or damage the surface of the part being lifted.

  • On / Off Rare Earth design
  • Easier actuation and Superior holding on material from 1/4″ to 1″ in thickness
  • Lifts flat or round loads
  • Heat resistant up to 180°F (82°C)
  • Handle locks in “On” position
  • 3:1 Design Factor
  • Conforms to ASME B30.20 Standards
Industrial Magnetics

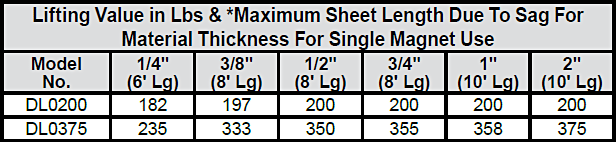

MAG-MATE DynamicLift Magnets chart 3

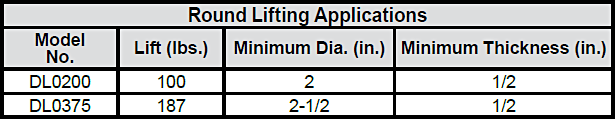

MAG-MATE DynamicLift Magnets chart 2

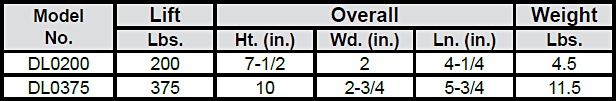

MAG-MATE DynamicLift Magnets chart 1


All product warnings: Warnings Page
