Industrial Magnetics MAG-MATE PowerLift® Rare Earth Lifting Magnets

Designed for Thick, Non-Flexing Material. These compact, yet powerful, Rare Earth lift magnets can be used on flat or round surfaces and contain an internal release on / off device that does not contact or damage the surface of the part being lifted. Permanent magnetic lifts also eliminate the fear of dropping the load being lifted due to power failures.


  • ON / OFF Rare Earth design
  • RFID Enabled
  • Lifts flat or round loads
  • Easy internal manual release does not contact the load
  • Heat resistant up to 180°F (82°C)
  • Handle locks in both On and Off position
  • 3:1 Design Factor
  • CONFORMS TO ASME B30.20 STANDARDS
Category: Tags: , ,
Industrial MagneticsMAG-MATE

Description

Lock On & Off Features

The new handle on the PowerLift® Rare Earth lift magnet features a positive lock-on and lock-off mechanism that requires the operator to manually switch between the two states. This prevents the handle from being turned only “partially on” and giving the operator a false sense of security that the magnet is holding safely, or from being accidentally bumped to the “off” position, dropping the load pre-maturely.




Vertical Lift Adapter

Lift Thick, Non-Flexing, Vertically Oriented Material




Applications:

  • Load steel plate into vertical storage racks
  • Lift steel plate from vertical storage racks to horizontal machining centers or cutting tables
  • Lift steel plate, rounds or billets into place for equipment / machinery manufacturing.




Benefits:

  • One lifter for both horizontal and vertical sheet or steel part handling
  • Reduce employee injury—eliminate improper use of slings or chains to lift sheet metal or steel parts vertically
  • Increase production time
  • No electricity required

The Vertical Lift Adapter (VLA), combined with an IMI PowerLift® magnet, lifts ferrous metal sheets, plates, rounds or billets from horizontal to vertical orientation or vice versa. The VLA is ideal for loading steel plate into vertical storage racks and for lifting plate steel, rounds or billets to machining centers or cutting tables. The Vertical Lift Adapter also has convenient, built-in forklift brackets to move and handle steel in a horizontal orientation.

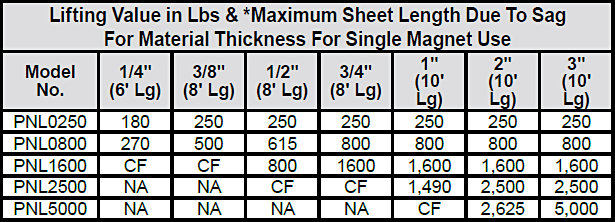

PowerLift® Rare Earth Lifting Magnets chart 1

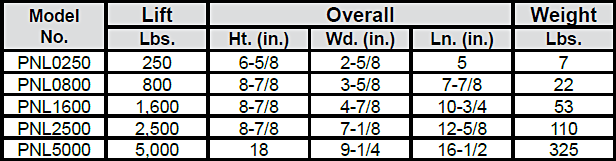

PowerLift® Rare Earth Lifting Magnets chart 2
