Industrial Magnetics MAG-MATE VersaLift™ Magnets

  • Rare Earth Magnet with a Locking
  • On / Off handle and Test load feature
  • Supports custom pole shoes
  • Lifts flat or round loads
  • Heat resistant up to 180°F (82°C)
  • Stationary Lift Lug(s)
  • Vertical Lift Capability using the optional Lift Lug attachment
  • RFID tagged
  • 3:1 Design Factor
  • Conforms to ASME B30.20 Standards
  • Test Load Feature—Note: Never complete entire lift

Description

VersaLiftTM Lifting Magnets with Test Mode, Horizontal and Vertical Lifting Capability and RFID Chip Compact and powerful Rare Earth lift magnet for use on flat or round surfaces. Contains an internal ON / OFF release device that does not contact or damage the surface of the part. More features than other lifts and manufactured in the USA (USA M.A.D.E.TM).

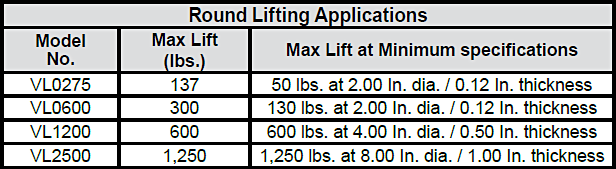

VersaLiftTM Magnets chart 3

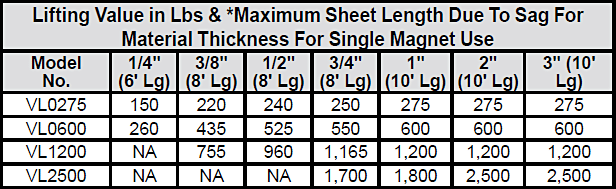

VersaLiftTM Magnets chart 2

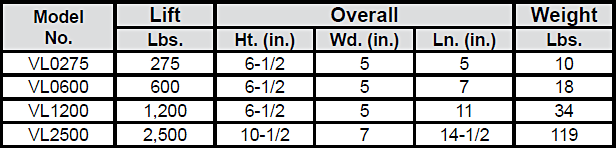

VersaLiftTM Magnets chart 1
