J.C. Renfroe Model AST / ASTL Non-Locking Clamps

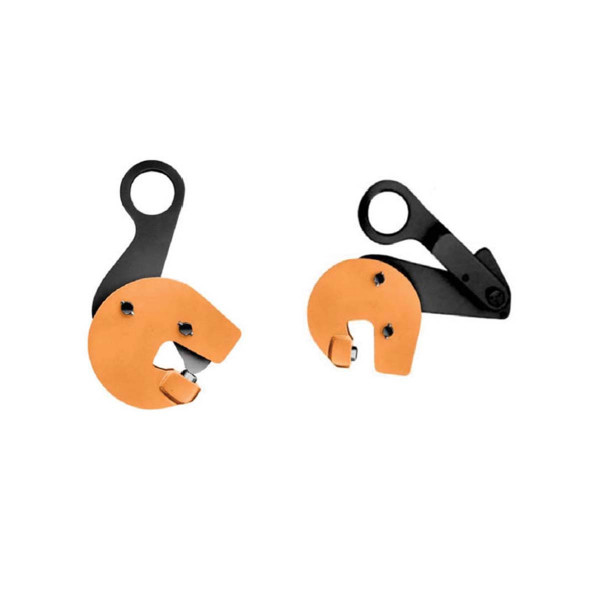

Model AST / ASTL Non-Locking

Both the Model AST and ASTL were developed primarily for lifting, turning and stacking lightweight beams and structural shapes while a constant tension is applied to the lifting shackle. The horizontal shackle permits a beam to be lifted with the web in a near horizontal position by placing the clamp on the load with the shackle positioned over the web, and between the flanges. With a beam lying in a horizontal position, and the clamp placed with the shackle overhanging the flange, the beam can be lifted, turned 90 degrees, and raised in a vertical position.

The Model ASTL includes all of the feature of the Model AST, plus a linkage which permits the tool to be removed remotely by setting the load down with the sling slack, then lifting the crane hook.

Renfroe

Description

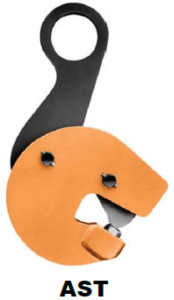

Model AST Non-Locking

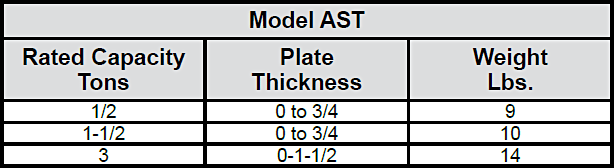

Model AST Non-Locking Specs

Specifications in inches

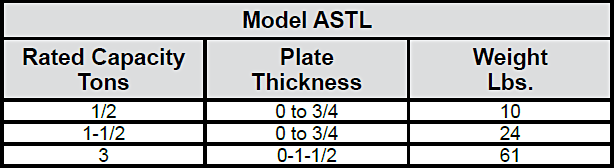

Model ASTL Non-LockingModel ASTL Non-Locking Specs

Specifications in inches
