Description
Features and Benefits
Non-Conductive Handle
Fiberglass handle with polyester webbing provides added non-conductive material when using proper hot line handling techniques. Some models also available with hot stick ring on handle.
Easy Access Directional Lever
Improved directional lever makes it easier than ever to access, especially with a gloved hand. Hot stick compatible.
Lightweight and Rugged
These hoists are made with cast aluminum frames as well as corrosion-resistant stainless steel springs and frame shafts. Roller shafts are stainless steel plated. All rotating shafts are mounted on bronze bushings for reduced wear.
X Hooks and Gate Latches
All hooks swivel 360° and are equipped with latches. Optional hooks with gates can also be added.
Positive Load Holding & Easy Positioning
Double interlocking pawls assure one pawl is engaged at all times. Dual pawl springs provide unsurpassed reliability. Utilizing a double pawl system, this multiple pawl stops for precise load adjustment.
Safe and Open Design
Thumbscrews used to secure the handle are pegged and cannot be backed out. Competitive units use butterfly nuts which can cause the handle to come loose. The open design allows for easy inspection and cleaning.
Easy to Operate
Self-storing web drum provides compact operation. Non-conductive winding wheel provided for quick take-up or positioning of slack webbing. Easily removable sheave block with a quick-disconnect design allows for the hoist to be converted for double- or single-line use.
4:1 Design Factor
Meets or exceeds minimum 4:1 design factor and all requirements of asme/ansi standard b-30.21. All units tested at 125% of rated load.
Overload Feature
Solid fiberglass handle, with replaceable tips, bends to alert the operator of a possible overload.
Open Design
The open design allows for easy inspection and cleaning.

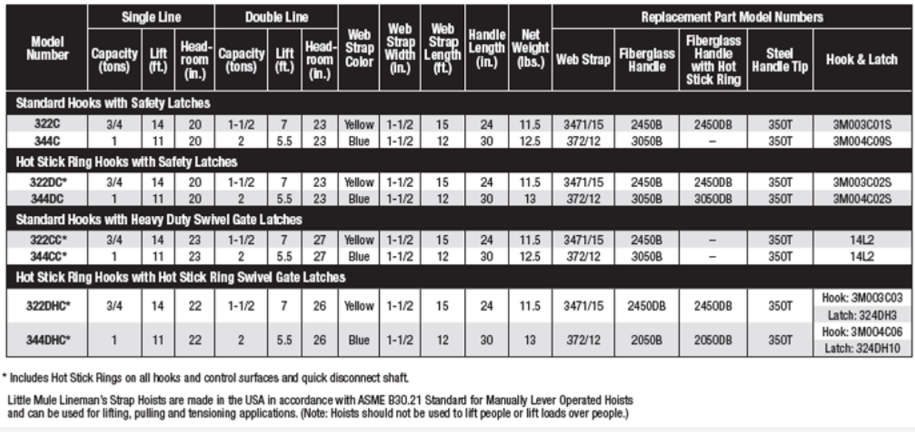

Hook Options
- Standard hook with safety latch
- Hot stick ring hook with safety latch
- Standard hook with heavy-duty swivel gate latch
- Hot stick ring hook with hot stick ring safety latch
Handle Options
Standard handle: solid fiberglass, non-conductive handle (standard)
Handle with hot stick ring: solid fiberglass, non-conductive handle with aluminum hot stick ring
