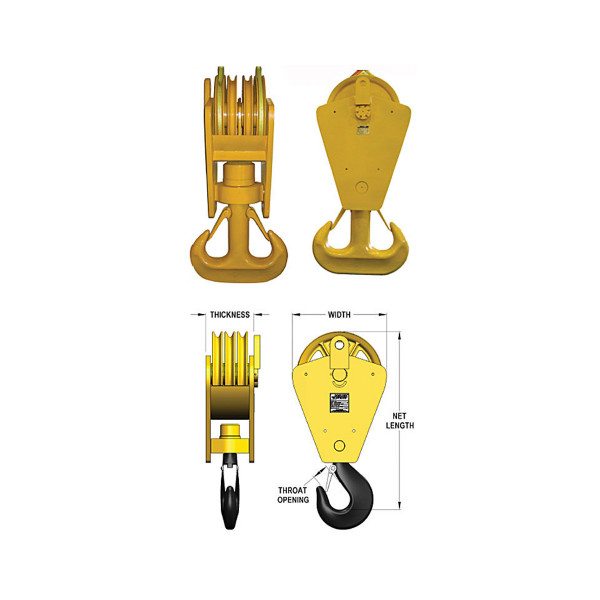

Miller Hi-Lift Blocks

  • Standard capacities to 300T
  • Design factor 4:1
  • Larger capacities available
  • Sheaves from 8″ to 36″
  • Wire rope sizes to 1-3/4″
Category: Tags: , ,

Description

Hooks—High Quality Forged Alloy Steel:

  • Per DIN 15401 or DIN 15402
  • Other hook standards available
  • Heavy-duty thrust bearing
  • Dual motion—swing plus 360° rotation
  • Safety latch on all hooks
  • Double and other hooks available




Heavy Welded Steel Plate Construction:

  • Provides rigidity and strength for longer life
  • Designed for shortest possible overall length
  • Enclosed sheave guard for easier threading eliminates possibility of rope jumping sheave
  • “H” models provide additional overhaul weight with detachable steel cheek plates
  • “T” and “TF”, extended or standard side plates—on 24″ sheave models




Bearings and Sheaves:

  • For sheave sizes 20″ and below, hardened and ground sheave pin with roller bearings
  • For sheaves 24″ and higher, tapered roller bearings with lip seals on alloy steel sheave pin
  • Bronze bushings optional
  • Individual sheave lubrication for assured grease penetration.
  • Heavy-duty cast steel sheaves standard, roll formed / welded sheaves available
  • Bronze spacers between sheaves eliminate galling




Options Available:

  • Double hooks
  • Higher load capacities
  • Fittings other than hook
  • Hook rotation locking device
  • Third party certifications
  • Cast hooks (quad)
  • Custom
