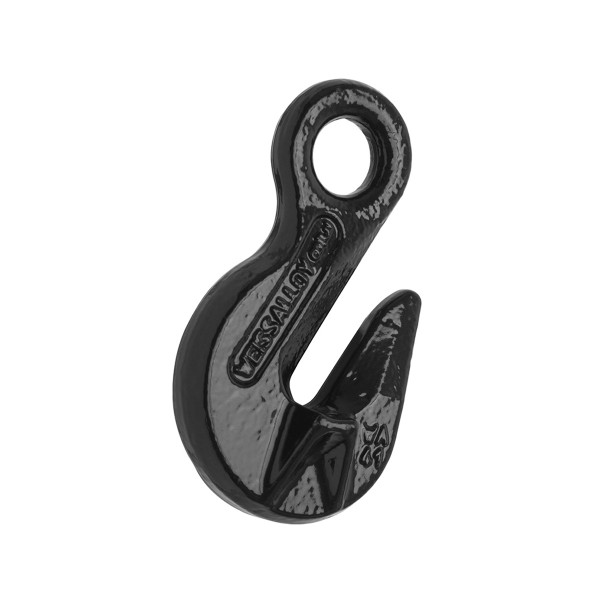

Peerless Peer-Lift Eye Style Cradle Grab Hook (Grade 80)

Peerless Peer-Lift Eye Style Cradle Grab Hook (Grade 80)

  • Proof tested at twice the working load limit.
  • Fatigue tested at 1.5 times the working load limit for 20,000 cycles.
  • Meet or exceed ASTM A952 and OSHA 1910 standards.
Categories: , Tags: , , ,
Peerless Logo

Description

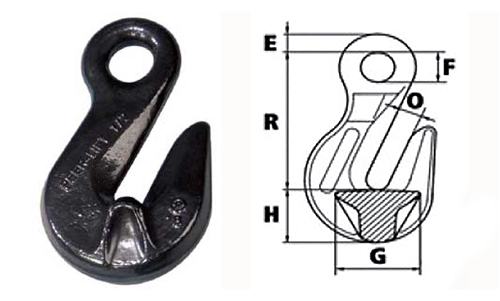

Peerless Peer-Lift Eye Style Grab Hook (Grade 80) Spec Drawing

Stock # Chain Size Dimensions Lbs. Per Each WLL
(lbs)*
Black Inches mm E F G H O R
8427280 9/32-5/16 7-8 0.39 0.61 1.18 0.94 0.39 2.36 0.66 4,500
8427480 3/8 10 0.47 0.81 1.73 1.26 0.51 3.15 1.32 7,100
8427680 1/2 13 0.63 0.98 2.09 1.50 0.67 4.09 2.87 12,000
8427780 5/8 16 0.79 1.22 2.52 1.77 0.79 4.49 4.85 18,100
8427880 3/4 20 0.94 1.42 3.35 2.09 0.91 5.31 8.82 28,300
8427980 7/8 22 0.98 1.61 3.82 2.44 1.06 6.22 12.79 34,200

* WARNING: Working load limit is not to be exceeded.



All product warnings: Warnings Page
