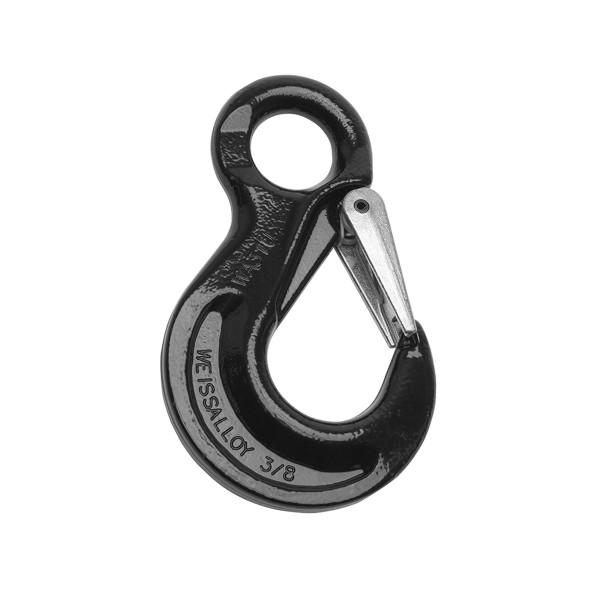

Peerless Peer-Lift Eye Style Sling Hook With Latch (Grade 80)

Proof tested at twice the working load limit.
Fatigue tested at 1.5 times the working load limit for 20,000 cycles.
Meet or exceed ASTM A952 and OSHA 1910 standards.

Categories: Hardware and Fittings, HooksTags: hook, eye, latch, sling hook

Description
Warnings

Description

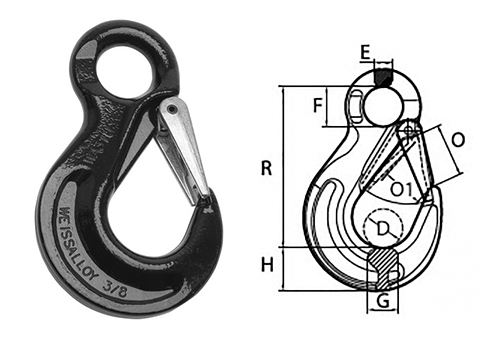

Stock #	Chain Size		Dimensions								Lbs. Per Each	WLL (lbs)*
Black	Inches	mm	D	E	F	G	H	O	O1	R	Lbs. Per Each	WLL (lbs)*
8417280	9/32-5/16	7-8	0.95	0.43	0.98	0.75	1.06	1.26	0.98	4.17	1.23	4,500
8417480	3/8	10	1.18	0.63	1.34	1.02	1.30	1.57	1.22	5.16	2.65	7,100
8417680	1/2	13	1.50	0.75	1.69	1.30	1.65	1.89	1.54	6.46	5.18	12,000
8417780	5/8	16	1.73	0.98	1.97	1.57	1.97	2.17	1.77	7.19	8.20	18,100
8417880	3/4	20	2.09	1.06	2.17	1.89	2.13	2.40	2.13	8.07	13.12	28,300
8417980	7/8	22	2.36	1.18	2.36	1.97	2.40	2.80	2.40	8.86	17.35	34,200

Replacement Latch Kits:

9/32” – 8410177
3/8” – 8410277
1/2” – 8410377
5/8” – 8410477
3/4” – 8410577
7/8” – 8410677

* WARNING: Working load limit is not to be exceeded.

All product warnings: Warnings Page
