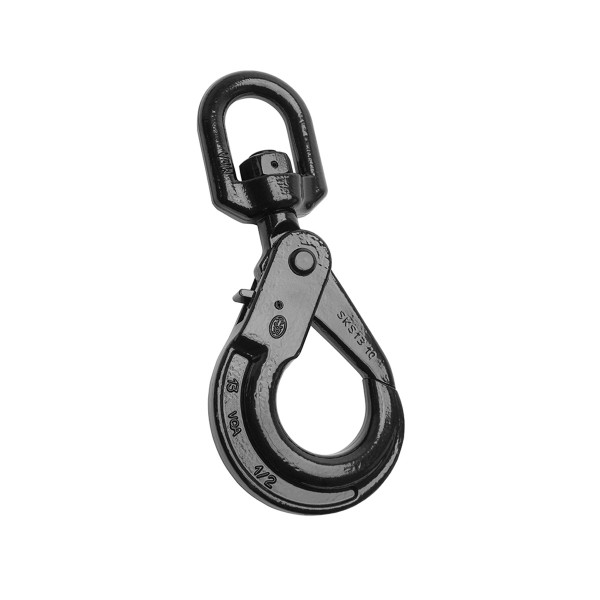

Peerless Peer-Lift Swivel Self-Locking Hook (Grade 80)

Peerless Peer-Lift Swivel Self-Locking Hook (Grade 80)

  • Proof tested at twice the working load limit.
  • Fatigue tested at 1.5 times the working load limit for 20,000 cycles.
  • Meet or exceed ASTM A952 and OSHA 1910 standards.
Categories: , , Tags: , ,
Peerless Logo

Description

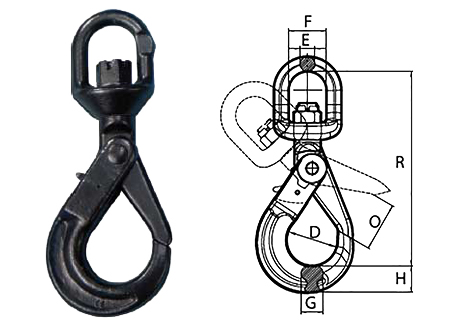

Peerless Peer-Lift Swivel Self-Locking Hook (Grade 80) Spec Drawing

Stock # Chain Size Dimensions Lbs. Per Each WLL (lbs)*
Black Inches mm D E F G H O (min) R
8499280 9/32 7 1.71 0.51 1.38 0.79 1.02 1.34 7.13 2.43 4,500
8499480 3/8 10 2.2 0.63 1.65 0.97 1.18 1.77 8.58 4.41 7,100
8499680 1/2 13 2.72 0.79 1.93 1.36 1.57 2.03 10.59 8.82 12,000
8499780 5/8 16 3.15 0.94 2.36 1.4 1.97 2.36 12.64 16.09 18,100

Replacement Latch Kits:

  • 9/32″- 8490299
  • 3/8″- 8490399
  • 1/2″- 8490499
  • 5/8″- 8490599

* WARNING: Working load limit is not to be exceeded.



All product warnings: Warnings Page
