Description

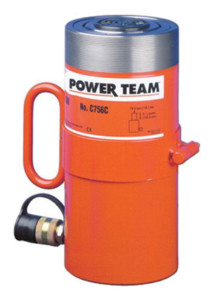

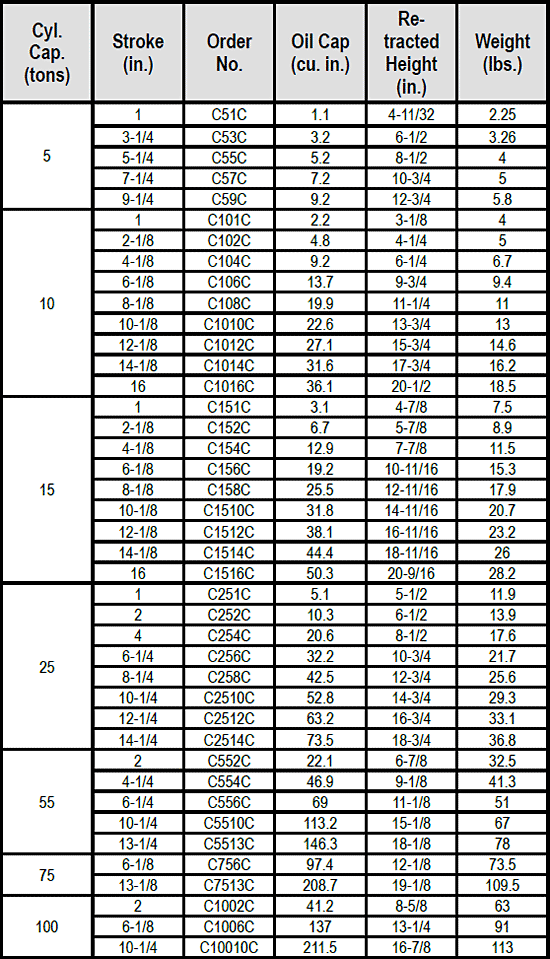

C-Series General Purpose Cylinders
Single-acting | Spring return
Heavy-duty lifting or pushing
- Chrome-plated piston rod resists wear and corrosion
- Solid steel cylinder body for durability

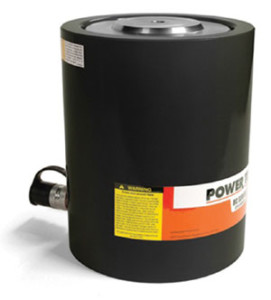

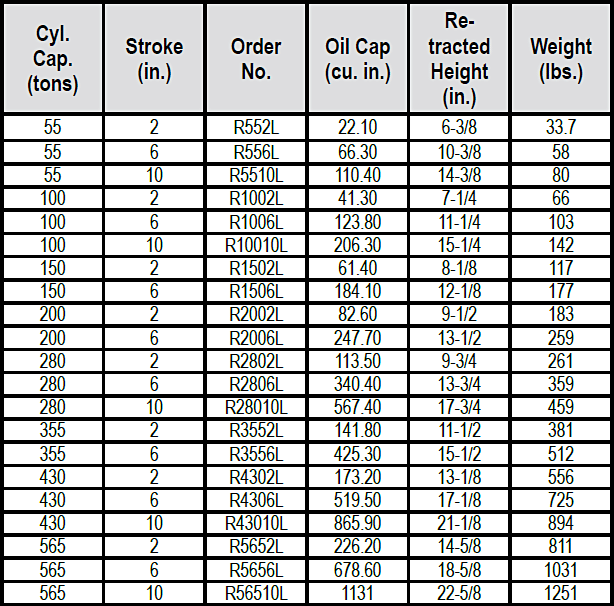

RL-Series Steel Locking Collar Cylinders
Single-acting | Spring return
Push, mechanical load holding
- Positive mechanical lock to support load
- Support lifted load for extended periods of time with hydraulic pressure released

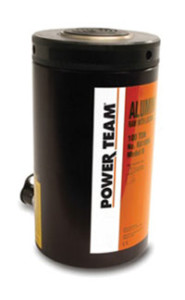

RL-Series Aluminum Locking Collar Cylinders
Single-acting | Spring return
When portability is a key factor
- Half the weight of steel cylinders
- Support lifted load for extended periods of time with hydraulic pressure released

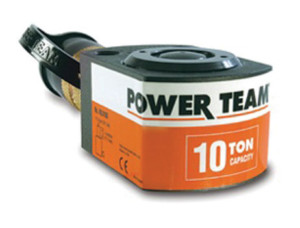

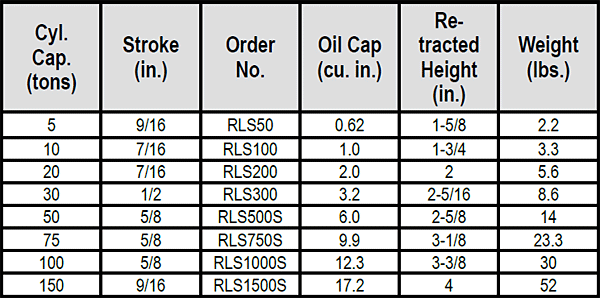

RLS-Series Low Profile Cylinders
Single-acting | Spring return
Can fit into extremely small spaces
- A female half coupler is standard with each cylinder
- Unique heavy duty spring provides fast piston return

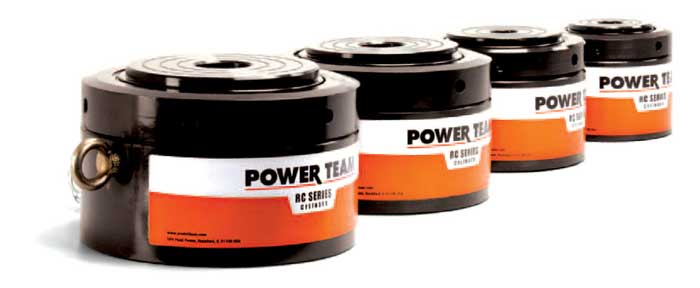

RC-Series Locking Collar Cylinders
Single-acting | Load return
Push, mechanical load holding
- Positive mechanical lock to support load

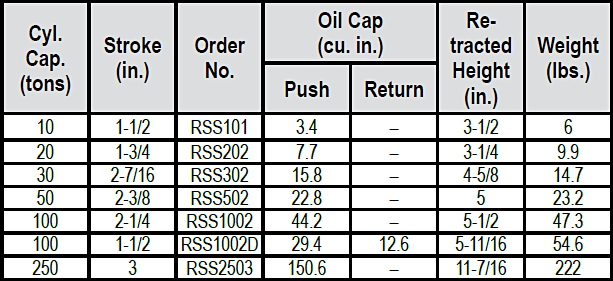

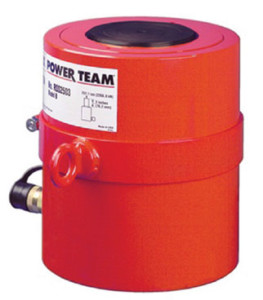

RSS-Series Shorty Cylinders
Single-acting | Spring return
Restricted space for cylinder
- Grooved piston top keeps load from sliding
- Cylinder can be “dead-ended” at full capacity

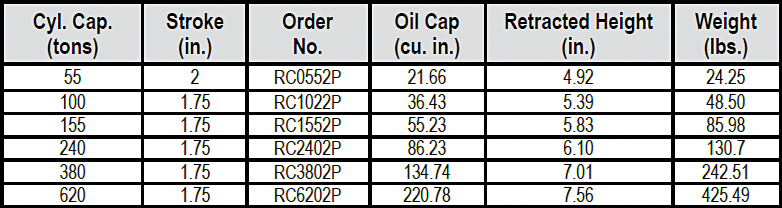

RC-Series Pancake Locking Collar Cylinders
Single-acting | Load return
For use where space is limited
- Support lifted load for extended periods of time with hydraulic pressure released
- Overflow port prevents piston from being overextended under load

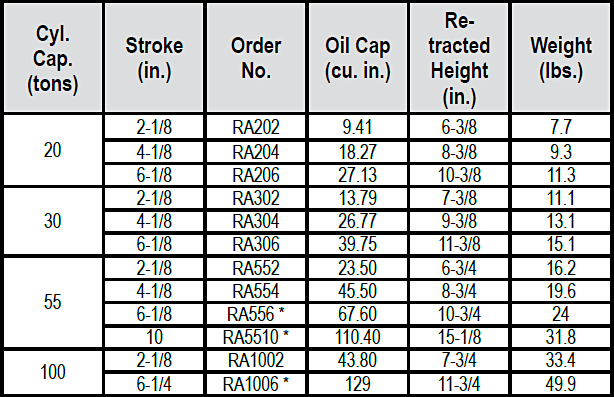

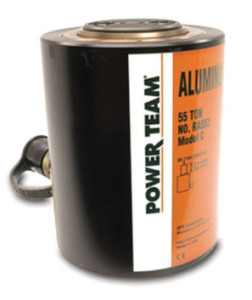

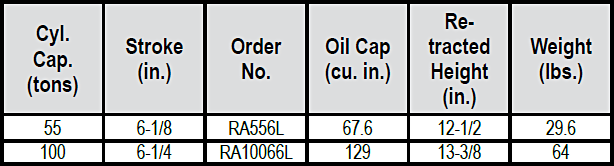

RA-Series Aluminum Cylinders
Single-acting | Spring return
For jacking and other non-production operations
- Grooved piston top keeps load from sliding
- Cylinder can be “dead-ended” at full capacity
* Supplied with carrying handles
R-Series High Tonnage Cylinders
Double-acting | Hydraulic return
Push – Pull, Press for low-cycle application
- Built-in safety relief valve prevents over-pressurization of the retract circuit

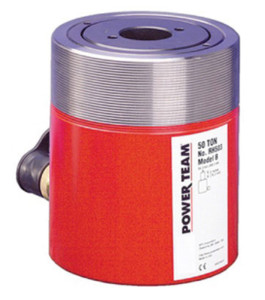

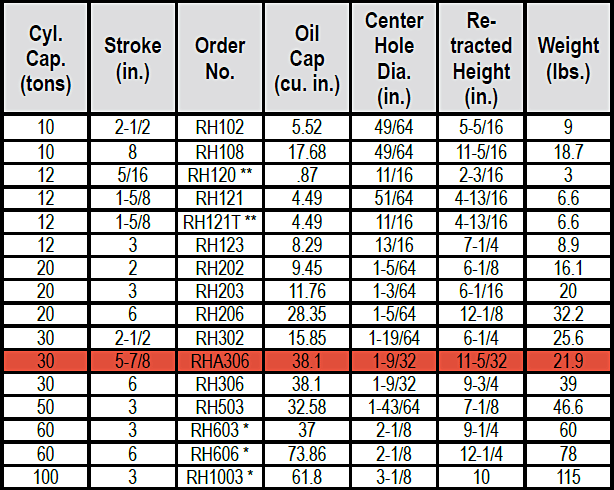

RH-Series Center Hole Cylinders
Single-acting | Spring return
Ideal for pulling and tensioning of cables, anchor bolts, forcing screws, etc.
- All cylinders except RH120 are furnished with female half coupler
* Supplied with carrying handles
** RH120 and RH121T do not have an internal threaded insert, but do have a 3/4-16 internal thread. The RH120 inlet port is 1/4″ NPTF.

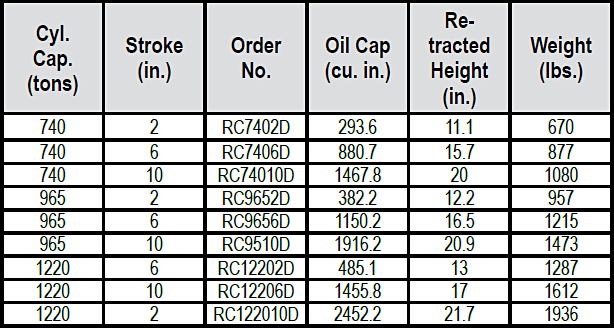

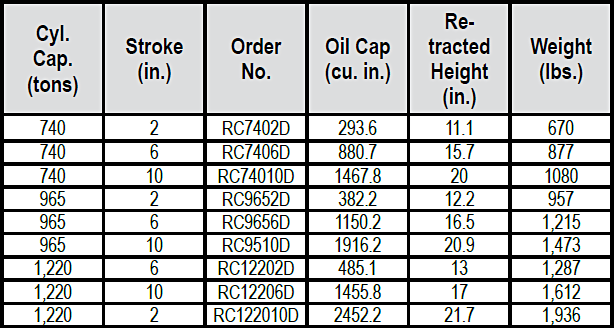

RC-Series High Tonnage Cylinders
Double-acting | Hydraulic return
Push – Pull and Press
- Cylinders come standard with hardened caps

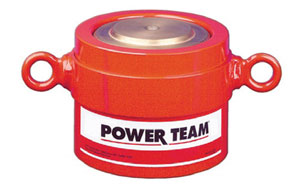

R-Series High Tonnage Cylinders
Single-acting | Load return
Push, Press for low-cycle application
- Low-cycle, gravity return
- Alloy heat-treated piston and body for reliability and strength

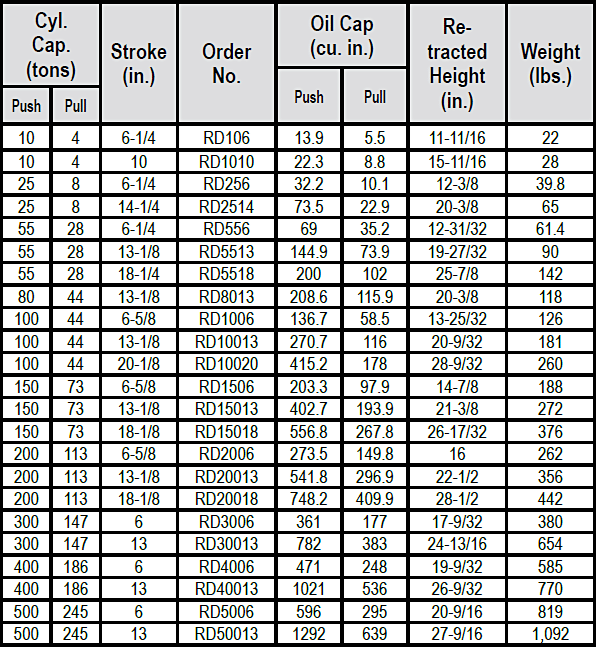

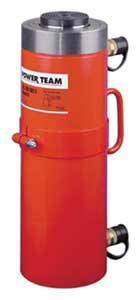

RD-Series High Tonnage Cylinders
Double-acting | Hydraulic return
Push – Pull, Press for high-cycle application
- Grooved ring pattern in load cap helps guard against load slippage

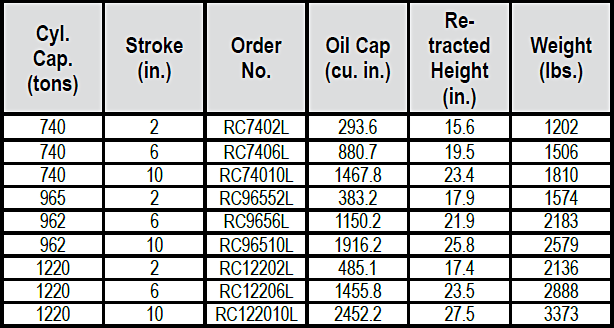

RC-Series High Tonnage Cylinders
Single-acting | Load return
Push, Press and Lift
- Low cycle, gravity return
- Overflow port prevents piston from being overextended under load
- Alloy heat-treated piston and body for reliability and strength
RH-Series Center Hole Cylinders
Double-acting
Ideal for pulling and tensioning of cables, anchor bolts, forcing screws, etc.
- Built-in safety feature prevents over-pressurization of the retract circuit
