RUD WBG-V Load Ring Bolted

360° Swivelling / 180° Pivoting

Complies with the machinery directives 2006/42/EG

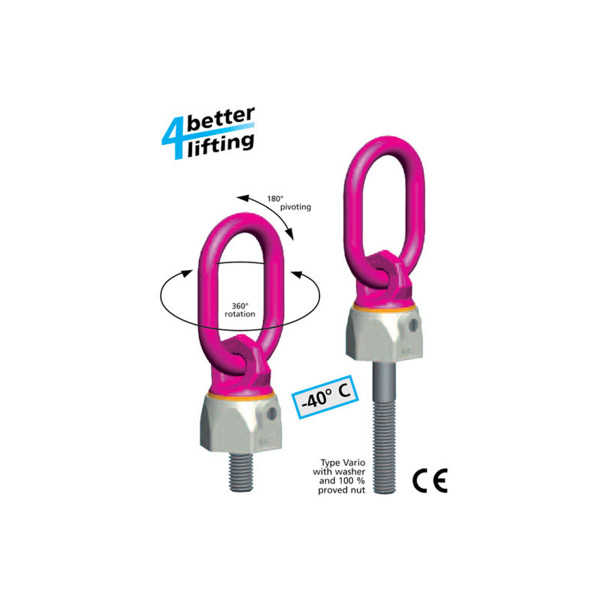

Swivelling lifting point:
  • Loadable in any direction. Safety factor 4:1.
  • Turnable under load in vertical direction.
  • Not suitable for permanent swivelling under full load, especially in 90° direction.
  • Simple installation, just a thread hole is required.
  • Variable lengths (Vario) available.
  • Can also be used for through holes.
RUD Banner

Description

  • Bolts 100% magnetic crack detected. Surface protection CORRUD-DT (20 times better than zinc plating).
  • High tensile, approved suspension ring acc. EN 1677-4.
  • Ring red powder coating, housing zinc plated-
  • Type Vario with washer and 100% crack detected nut.
  • WBG-V and WBG are also available with Imperial thread.
  • Turning without jerk due to additional bush bearing washer.
  • Wear marks in the main load directions 45°, 60° and 90°.
  • Frame 2 and larger are RFID EQUIPPED.

WBG-V Load Ring Bolted Detail

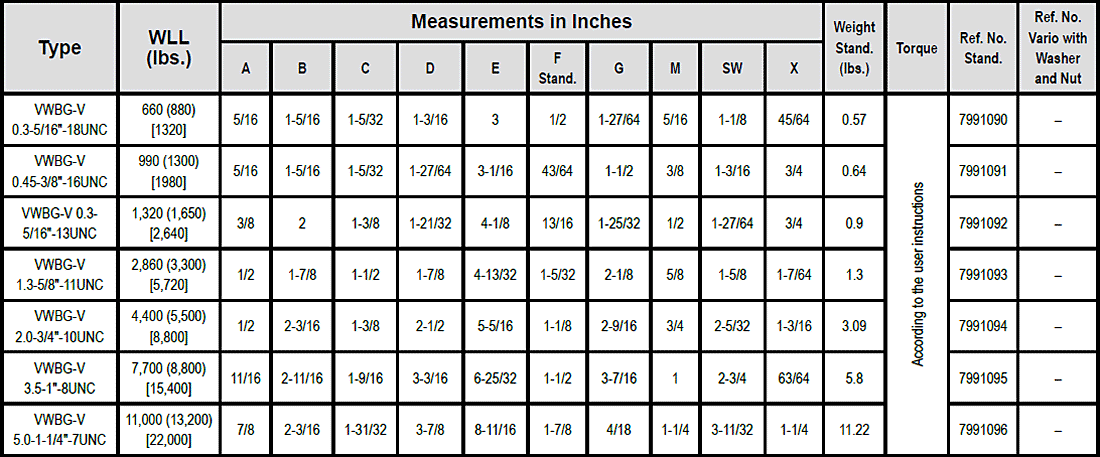

WBG-V Load Ring Bolted Specs

Please Note: It can happen, that during use, the lifting point can engage in any position. That´s why the WLL is embossed for the worst case situation.

The ring can be manually adjusted to the direction of pull, then the WLL values in the brackets ( ) can be used.

Attention: Refer to RUD user instructions.

The WLL (Working Load Limit) is listed at the nominal value (worst case scenario) unless otherwise specified.
