Simplex Hand Pumps

P-Series Hand Pumps & Accessories

Category: Tags: , ,

Description

Compact Steel

Reservoir Capacity:

20 – 145 C.u.In

Weight:

10 – 29 Lbs.

Maximum Pressure:

10,000 PSI

  • Welded carrying handles (P41, P42 & P82).
  • Large 3/8″ pressure port for maximum flow.
  • Low handle effort for easy operation.
  • Single and two speed models.

P-Series Hand Pumps & Accessories: Compact Steel

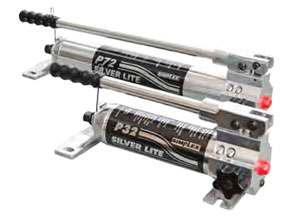

Lightweight Aluminum

Reservoir Capacity:

30 – 70 Cu.In.

Weight:

8 – 11 Lbs.

Maximum Pressure:

10,000 PSI

  • All aluminum construction makes these pumps extremely light weight and easy to handle.
  • 25% faster per stroke than comparative pumps means less work for operator.



P-Series Hand Pumps & Accessories: Lightweight Aluminum

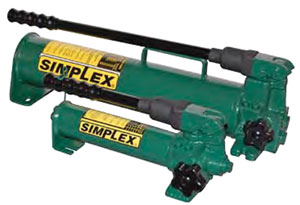

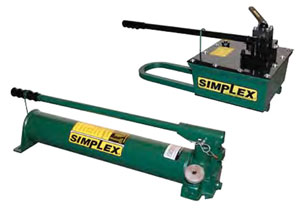

Heavy Duty Steel

Reservoir Capacity:

175 – 460 Cu.In.

Weight:

26 – 61 Lbs.

Maximum Pressure:

10,000 PSI

  • Heavy-duty, metal construction for durability.
  • High displacements of oil per stroke.
  • Adjustable handle effort / dual pivot points.
  • Low, back saving handle effort.
  • External adjustable relief valves.

P-Series Hand Pumps & Accessories: Heavy Duty Steel

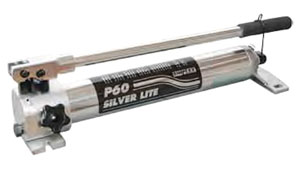

Ultra High Pressure Aluminum

Reservoir Capacity:

60 Cu.In.

Weight:

10 Lbs.

Maximum Pressure:

40,000 PSI

  • 40,000 psi maximum pressure.
  • 60 cu. in. reservoir provides more usable oil capacity.
  • Large pressure release knob, fine threaded for added control.
  • Lower handle effort provides less operator fatigue.
  • Slotted front mounting hole offers flexibility.

P-Series Hand Pumps & Accessories: Ultra High Pressure Aluminum

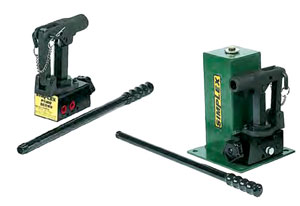

Special Application

Volume Per Stroke:

.30 – 4.56 Cu.In.

Weight:

9 – 20 Lbs..

Pressure Range:

750 – 12,000 PSI

  • Ideal for fixed applications when pumps need to be bolted in place.
  • P1000A Series offers a swivel pump head for flexible fixturing.
  • Wide range of operating pressures to select from.

P-Series Hand Pumps & Accessories: Special Application

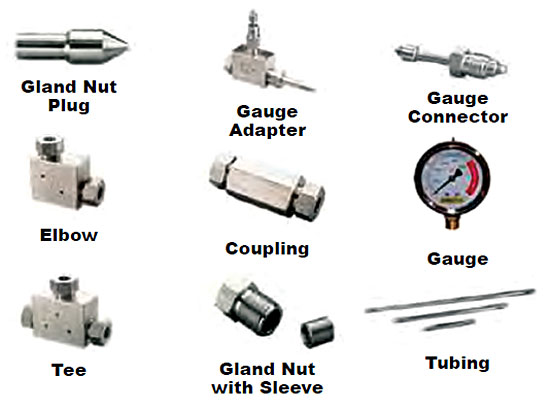

P-Series Hand Pump Accessories

P-Series Hand Pump Accessories

All product warnings: Warnings Page
View our complete literature library.
