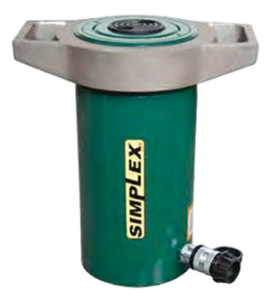

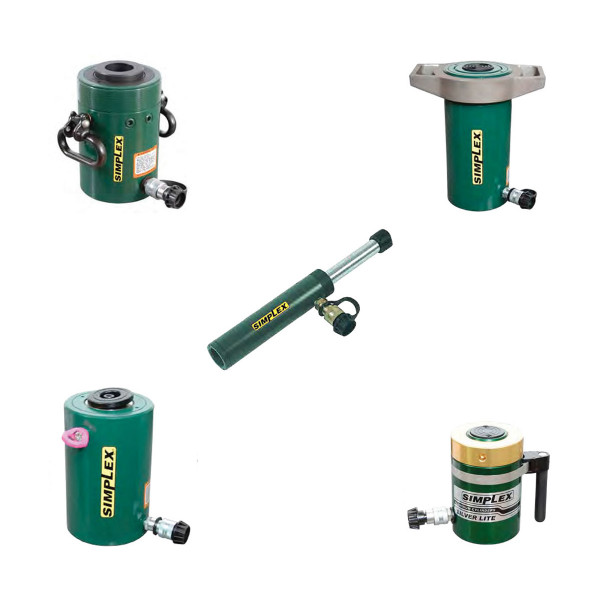

R-Series Steel Cylinders
Single-acting | Spring Return
Capacity Range:
5 – 100 Tons
Stroke Range:
.62 – 14.38 In.
Maximum Pressure:
10,000 PSI
- HD internal spring for fast retract assistance.
- Heat treated load caps are standard.
- Stop ring for piston blow-out protection.
- Plated piston resists scoring and corrosion.
- High flow couplers are plated to resist corrosion.
- Rod wiper protects inner cylinder from dirt.

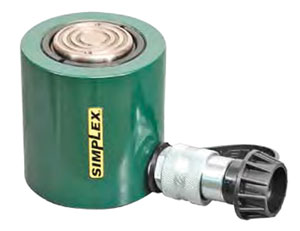

RLS-Series Steel Cylinders
Single-acting | Low Profile Spring Return
Capacity Range:
10 – 100 Tons
Stroke Range:
1.5 – 2.44 In.
Maximum Pressure:
10,000 PSI
- Compact low-profile design.
- HD spring for fast retraction.
- Grooved plunger to stabilize the load.
- Stop ring for piston blow-out protection.
- Rod wiper protects inner cylinder from dirt.
- Plated piston to resist scoring and corrosion.

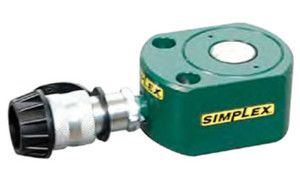

RFS-Series Steel Cylinders
Single-acting | Flat Jack Spring Return
Capacity Range:
5 – 150 Tons
Stroke Range:
.44 – .62 In.
Maximum Pressure:
10,000 PSI
- Plated piston to resist scoring and corrosion.
- Low profile, high tonnage design.
- Rod wiper protects inner cylinder from dirt.

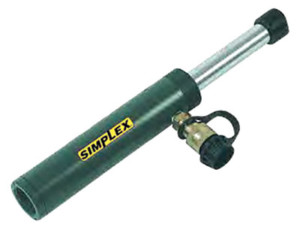

RP-Series Steel Cylinders
Single-acting | Pull Cylinder
Capacity Range:
2 – 5 Tons
Stroke Range:
5 – 5.5 In.
Maximum Pressure:
10,000 PSI
- Designed for pulling and tensioning applications.
- High strength, all steel construction.
- Chrome-plated piston rod resists corrosion.
- Spring-loaded piston rod automatically extends when pressure is released.
- Rod wiper protects inner cylinder from dirt.

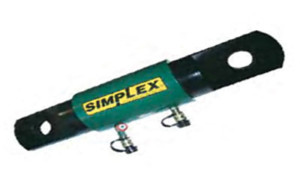

RDP-Series Steel Cylinders
Double-acting | Pull Cylinder
Capacity Range:
10 – 100 Tons
Stroke Range:
6 In.
Maximum Pressure:
10,000 PSI
- Hard chrome-plated steel piston rods resist corrosion.
- Ideal for joining steel plates for welding.
- Useful for the fabrication industry as well as cable tensioning.
- Double-acting cylinder provides quick and full retraction.

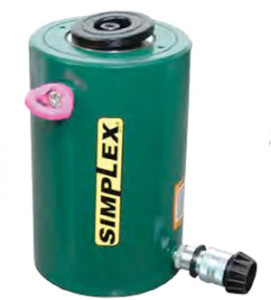

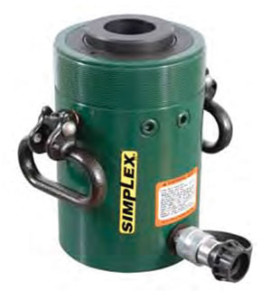

RC-Series Steel Cylinders
Single-acting | Center Hole
Capacity Range:
12 – 100 Tons
Stroke Range:
.31 – 6.13 In.
Maximum Pressure:
10,000 PSI
- Induction hardened piston rod for added strength eliminating the need for a loadcap.

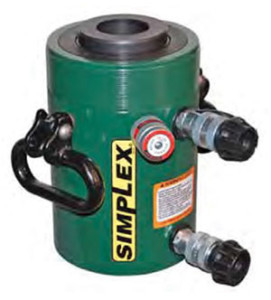

RCD-Series Steel Cylinders
Double-acting | Center Hole
Capacity Range:
30 – 500 Tons
Stroke Range:
3 – 10.13 In
Maximum Pressure:
10,000 PSI
- Design allows for both push and pull forces.
- Induction hardened piston rod for added strength eliminating the need for a loadcap.
- Performance Nitride / QPQ corrosion resistant technology on the piston rod and retaining nut for extended cylinder life.
RLR-Series Steel Cylinders
Single-acting | Pull Cylinder
Capacity Range:
30 – 1,000 Tons
Stroke Range:
6 – 12 In.
Maximum Pressure:
10,000 PSI
- Large bearings resist side load.
- Plated piston to resist scoring and corrosion.
- Stop ring for piston blow-out protection.
- Custom strokes and capacities up to 1,500 tons available, contact factory.
- Swivel Eye Bolts are used 100 tons and up.

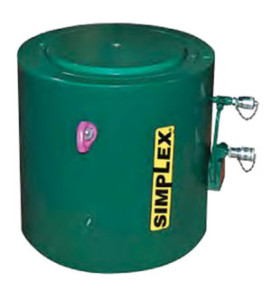

RDA-Series Steel Cylinders
Double-acting
Capacity Range:
10 – 1,000 Tons
Stroke Range:
2 – 24 In.
Maximum Pressure:
10,000 PSI
- Collar threads designed for full load (10 – 200 tons).
- Removable load cap for flexibility and safety.
- Stop ring for piston blow-out protection.
- Plated piston to resist scoring and corrosion.
- Large bearings resist side load.
- Rod wiper protects inner cylinder from dirt.
- Custom strokes and capacities up to 1,500 tons available.

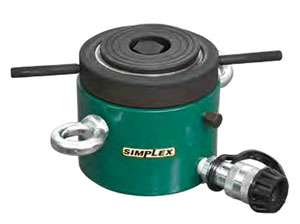

CLP-Series Steel Cylinders
Single-acting | Pancake Locknut
Capacity Range:
60 – 500 Tons
Stroke Range:
1.77 – 1.97 In.
Maximum Pressure:
10,000 PSI
- Extra low profile to fit into tight spaces.
- 5° swivel load caps on all models.
- Locknut design provides positive mechanical load hold.

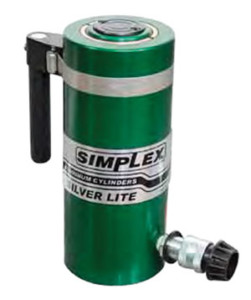

RAS-Series Aluminum Cylinders
Single-acting | Spring Return
Capacity Range:
30 – 150 Tons
Stroke Range:
2 – 10 In.
Maximum Pressure:
10,000 PSI
- Half the weight of steel cylinders.
- Heavy duty spring for fast and full retraction.

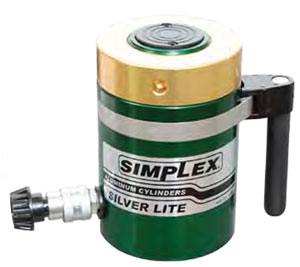

RAL-Series Aluminum Cylinders
Single-acting | Locknut Spring Return
Capacity Range:
50 – 150 Tons
Stroke Range:
2 – 10 In.
Maximum Pressure:
10,000 PSI
- Technical coating reduces wear and corrosion.
- Carrying handles standard on all models.

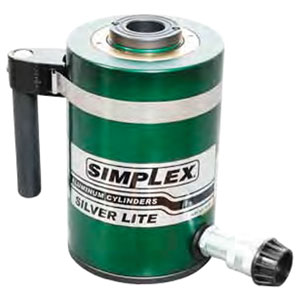

RAC-Series Aluminum Cylinders
Single-acting | Center Hole
Capacity Range:
30 – 60 Tons
Stroke Range:
3 – 6 In.
Maximum Pressure:
10,000 PSI
- Half the weight of steel cylinders.
- Heavy-duty spring for fast and full retraction.
- Technical coating reduces wear and corrosion.
- Stop rings for piston blow-out protection.
- Rod wiper protects inner cylinder from dirt.

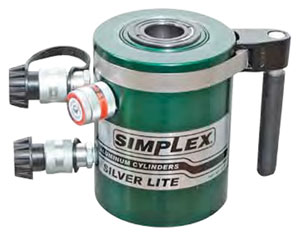

RACD-Series Aluminum Cylinders
Single-acting | Pancake Locknut
Capacity Range:
30 – 150 Tons
Stroke Range:
2 – 10 In.
Maximum Pressure:
10,000 PSI
- Technical coating reduces wear and corrosion.
- Steel piston for protection against load damage.
- Chrome plated sleeve for extra protection.
- Stop rings for piston blow-out protection.
- Rod wiper protects inner cylinder from dirt.
