Slingmax Gator-Max™ Wire Rope Slings & Gator-Laid® Cable-Laid Slings

Slingmax Logo

Description

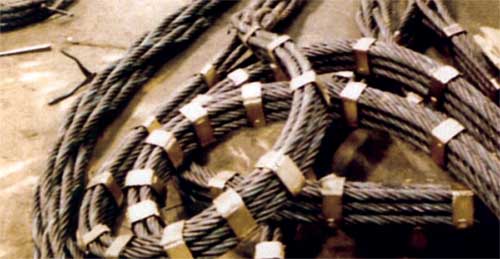

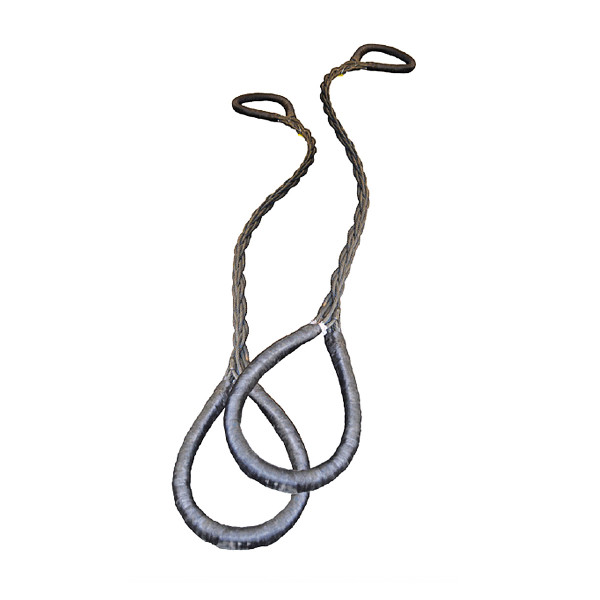

Slingmax Gator-Laid® Wire Rope Sling

U.S. Patent #4,240,659 & #5,561,973

The Slingmax Gator-Laid wire rope sling is identical to the Gator-Max sling with the parallel eyes, except it has metal sleeves for the splice connection. This is the product when a big lift, but shorter sling, is required. It also has twelve parts of wire rope in the loop. The Gator-Flex and Gator-Laid products were developed in conjunction with the offshore oil industry to provide the world’s best heavy lift wire rope slings.

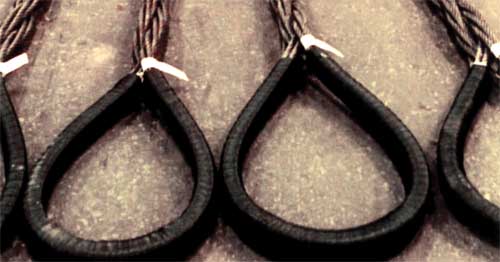

Slingmax Gator-MaxTM Wire Rope Sling With Parallel Eyes

U.S. Patent #5,561,973

The Slingmax Gator-Max™ wire rope sling is the strongest multi-part sling with great flexibility. It will develop its full strength on small pins with a D/d ratio of 1/1 where D is the pin and d is the sling body. (4/1 D/d when comparing the pin to the component parts.) For heavy lilting work, this is the most efficient wire rope sling that meets all of the standards. The eyes have the wire ropes (12) laid in parallel so that there is no cross over, and then they are wrapped with heavy duty material to keep them in position. This sling was developed to meet conditions specified by the US Navy and the Wire Rope Technical Board Sling Manual. Testing has proven it to be the strongest multi-part wire rope sling when attached to small pins because it has twelve parts of wire rope in the loop in a parallel construction.

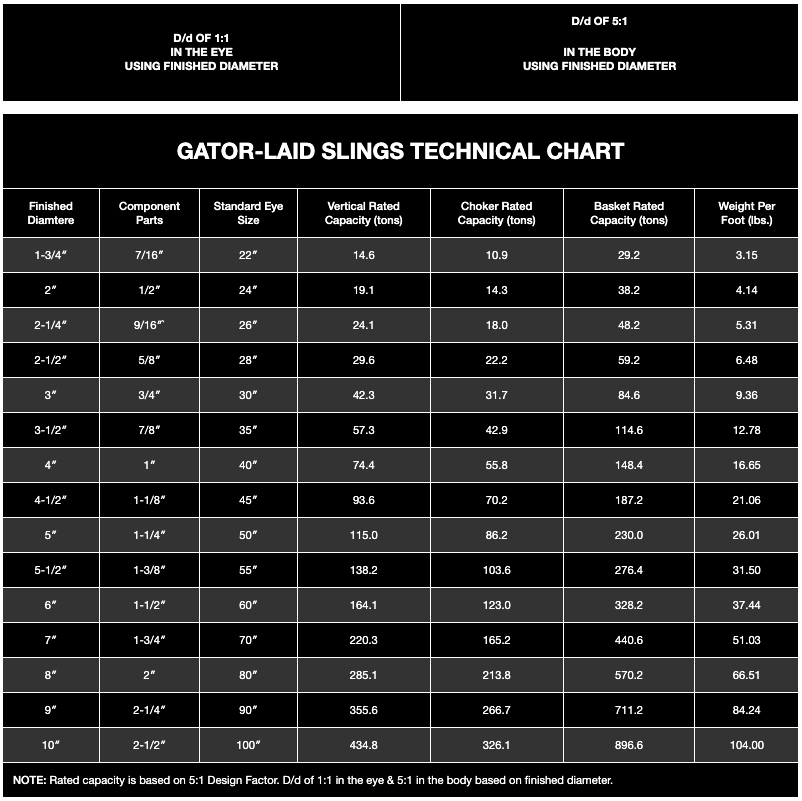

Gator-MaxTM Wire Rope Slings & Gator-Laid® Cable-Laid Slings Specs

Rated load in tons.



Brand

Slingmax® Rigging Solutions

Slingmax® Rigging Solutions is recognized worldwide for local service, quality and innovative solutions for the heavy lift and material handling market. We are your premier supplier of the most advanced high performance synthetic slings and multi-part wire rope slings on the market today.Mazzella / Slingmax® Lifting Slings Channel: VideosThe Slingmax organization consists of 37 independent companies, each exclusively licensed, trained and certified to manufacture, repair and test Slingmax® products.  Strategically located in 12 countries, our 45 full service manufacturing locations guarantee the same quality service and quick turnaround times our valued customers have come to depend on. Slingmax® currently holds over 50-patents and 100 trademarks worldwide, which include Check-Fast® inspection and Rifled Cover® Technology.  We are best known for our Twin-Path® roundsling, but we have numerous other patented rigging solutions including machinery, rigging hardware and electronic warning indicators for roundslings, to name a few. No matter where your next heavy lift job takes you, whether it’s North America or abroad, you can count on a local Slingmax manufacturing location to service your needs.
