Walker Magnetics RL-Series Rectangular Lifting Magnets

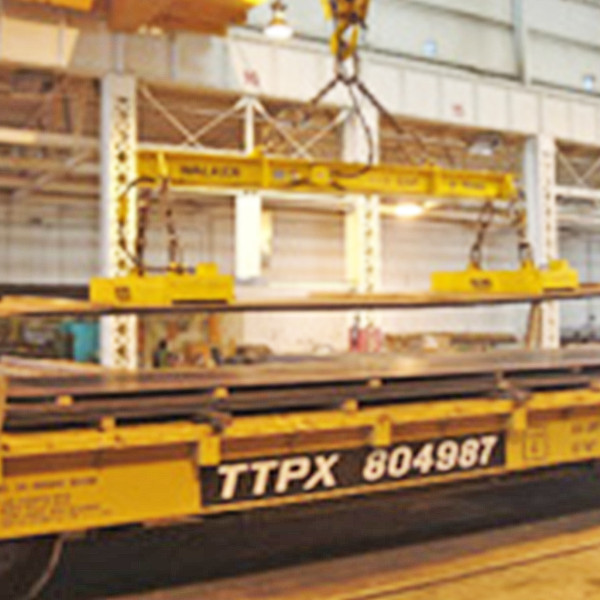

Rectangular lifting systems are designed to lift plate, slabs and billets. RLs are found moving large plates to and from burning tables, fabricating areas, welding departments and receiving and shipping areas. Typical users are steel warehouses, shipyards, fabricators and metal working plants.

These magnets can be used individually or in multiples with different types of suspension systems. Walker engineers and supplies the complete system, including power supplies, controls and battery safety back-up systems. While the most popular magnet sizes range from 8″ x 16″ to 26″ x 60″, custom designs and options for standard units are available for special applications.

Standard Features & Benefits

  • Copper wound coils with Class H insulation
  • 50% duty cycle
  • 115, 230 VDC
  • Fully welded heavy-duty magnet case
  • Waterproof outlet box and lead cable
walker magnetics


The maximum-rated lift is based upon lifting clean, smooth, flat, low-carbon steel plate of ample thickness with the full area of the magnet’s lifting surface in contact with the load. De-rating is required for plates with rust or scale, thin plates and alloy steels.

Typical sizes available from 3,500 to 52,500 lbs. rated lift. Contact your Lifting Specialist for detailed specs and pricing.


All product warnings: Warnings Page
