Here are some useful tips to help the rigger do his job more efficiently and safely.

Prevailing work rules and government regulations place full responsibility for proper performance upon the rigger, so it is his duty to be familiar with the condition and capability of all tools and equipment used, as well as techniques employed. One basic rule always applies: Always know … never guess!

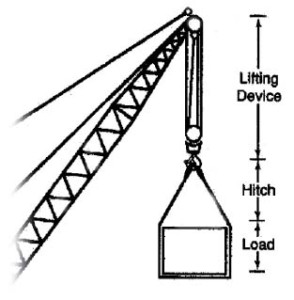

Each lift may be divided into three parts, providing a convenient plan for proceeding:

  1. The Lifting Device—Know its capacity and limitations, and its condition. When was it last inspected? If in doubt about capacity, check the placard.
  2. The Hitch—Here Is where the rigger can exercise ingenuity…but it’s also the easiest place to make a mistake. This catalog can help you decide which sling to use, and how to rig it properly.
  3. The Load—The weight must be known. But you must also protect the load from possible damage by the slings…and protect the slings from damage by the load.

Useful Guidelines For The Rigger Diagram 1


Is the lifting device adequate?

Check the placard on the crane or hoist, and then answer three questions:

  1. Is the capacity adequate for this lift?
  2. Will it lift high enough?
  3. Is horizontal reach adequate?

Useful Guidelines For The Rigger Diagram - Is the lifting device adequate?


Check the hook and reeving

  1. Are sheaves properly rigged? If multi-part reeving, will it support the load?
  2. Is the hook the right size so sling eye won’t be distorted when put over the hook?
  3. Check for cracks in bowl of the hook, and for evidence of point loading or bending—any distortion causing an increase in throat opening of 5%, not to exceed 1/4″ (6 mm) or as recommended by the manufacturer (see ASME B.30.10 Hooks).

Useful Guidelines For The Rigger Diagram - Check the hook and reeving


Type of Hitch Determines Choice of Sling

Useful Guidelines For The Rigger Diagram - Type of Hitch Determines Choice of Sling

Before you select a sling for a specific lift, determine the most effective hitch to do to the job, protect the load, and protect the sling. One of three basic hitches will usually do the job.

The type of hitch you select may determine the type of sling body that will best do the job, as well as the length of sling that will be needed. Lifting height, overhead clearance and hook travel will affect choice of hitch and length of sling.

Choose a sling body type which will best support the load while providing adequate rated capacity. The proper choice will provide:

  1. Lifting capacity needed.
  2. Proper D/d Ratio.
  3. Handling characteristics needed for rigging.
  4. Minimal damage to the sling.
  5. Minimal damage to the load.

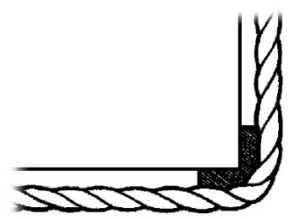

Protect the sling during the lift with blocking or padding at corners, or where the sling body would be bent severely.

Useful Guidelines For The Rigger Diagram - Type of Hitch Determines Choice of Sling 3 Useful Guidelines For The Rigger Diagram - Type of Hitch Determines Choice of Sling 2


Use a spreader bar between legs of a sling to prevent excessive side pressure on the load by the sling during the lift.
Useful Guidelines For The Rigger Diagram - Spreader Bar

When attaching a sling to eye bolts, always pull on line with the bolt axis. When hitching to bolts screwed into or affected to a load, a side pull may break the bolts.

Useful Guidelines For The Rigger Diagram - Attach Eye Bolt


Use a shackle in the sling eye during a choke to protect sling body against excessive distortion. Always put shackle pin through sling eye rather than against the sling body—since sliding movement of sling body could rotate pin, causing it to come loose.

Useful Guidelines For The Rigger—Wire Rope 9


A sliding hook choker is superior to a shackle or unprotected eye, since it provides a greater bending radius for the sling body.

Useful Guidelines For The Rigger—Wire Rope 10


Use blocking or padding to protect hollow vessels, loose bundles and fragile items from scuffing and bending. Remember that blocking becomes part of the lift, and must be added to total weight of the sling.

Useful Guidelines For The Rigger—Wire Rope 11


When lifting crates or wooden boxes with a basket hitch, be sure load can withstand side pressure as tension is applied to sling. Use spreader bars and corner protectors to prevent damage to contents.

Useful Guidelines For The Rigger—Wire Rope 12

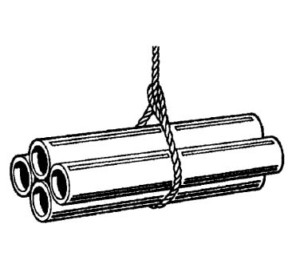

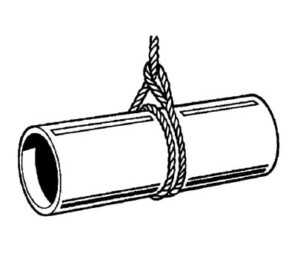

When lifting a bundled load with a single sling near the center of gravity, a choke is more effective than a basket hitch to prevent unbalance and slipping of the load in the sling.

Useful Guidelines For The Rigger—Wire Rope 13


Some riggers will use a double wrap around the load, for 360° gripping of the load, to prevent slippage during the lift.

Useful Guidelines For The Rigger—Wire Rope 14


You can reduce the angle of a choke with a wooden block between the hitch and the load. This also increases the angle between the two legs to improve sling efficiency.

Useful Guidelines For The Rigger—Wire Rope 15


When rigging two or more straight slings as a bridle, select identical sling constructions of identical length—with identical previous loading experience. Normal stretch must be the same for paired slings to avoid overloading individual legs and unbalancing the load during the lift.

Useful Guidelines For The Rigger—Wire Rope 16


Single-part hand-spliced slings must not be permitted to rotate when rigged in a straight, vertical hitch. Rotation can cause the splice to unlay and pull out, resulting in dropping of the load.

Useful Guidelines For The Rigger—Wire Rope 17

WARNING: Hand-spliced slings should not be used in lifts where the sling may rotate and cause the rope to unlay.


Anytime a load is lifted beyond arm’s reach with a single-part load line or straight eye-and eye sling, use a tagline to prevent load rotation. If a wire rope is permitted to rotate, the strands may unlay and the rope’s capacity will be reduced.

Useful Guidelines For The Rigger—Wire Rope 18


Two basket hitches can be rigged with two slings to provide better balance for long loads. Be sure that slings cannot side towards one another along the load when the lift is made.

Useful Guidelines For The Rigger—Wire Rope 19

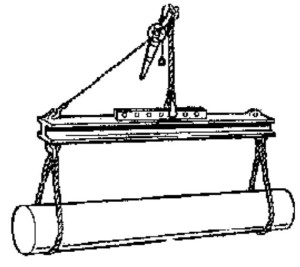

Use an equalizing bar with double-basket hitches to reduce tendency of slings to slide together, and to keep loads level. By adjusting the hook point and using a come-along or chain block to support the heavy end, the load can be kept level during the lift.

Useful Guidelines For The Rigger—Wire Rope 20


Useful Guidelines For The Rigger—Wire Rope 21


To turn or reposition a load, either one or two lifting devices may be employed. Always use a choker hitch or a single-leg direct attachment. Never attempt to turn a load with a basket since the load will slide in the hitch against the sling body—resulting in damage to both the sling and the load, and possibly a dropped load.

Useful Guidelines For The Rigger—Wire Rope 22


One Hook Load Turning

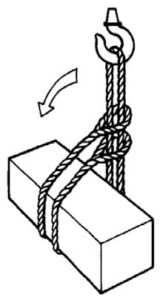

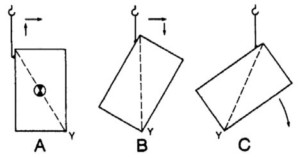

To turn a load with one hook, attach the sling directly to the load ABOVE the Center of Gravity. The lifting hook must be able to move, or travel, in the direction of the turn to prevent sliding of the pivot edge of the load just as the load leaves the ground. It may be necessary to lift the load clear to reposition it after the turn is completed, and irregular shapes sometimes will require blocking for support during and after the turn.

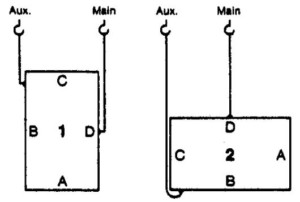

Two-hook turning is employed when it is desired to turn the load freely in the air. Main and auxiliary hoists of a crane can often be used, or two cranes can be used.

Useful Guidelines For The Rigger—Wire Rope 23


To turn from side (A) to (B) in 1 and 2 on the right, attach on side (B) above the Center of Gravity and on side (D) at the Center of Gravity, then lift both hoists equally until load is suspended. Lower auxiliary until turn is completed; detach sling at (B) before lowering load completely.

Useful Guidelines For The Rigger—Wire Rope 24

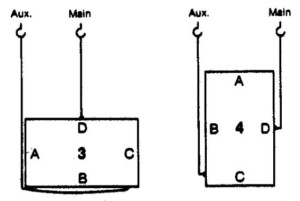

To turn from side (B) to (C) in 3 and 4 on the right, lift balanced load at (D) directly above the Center of Gravity; then attach auxiliary at (B) and lift to desired position. Lower both hooks simultaneously until side (C) is in desired position.

Useful Guidelines For The Rigger—Wire Rope 25


Turning with double choker gives good control, with weight always applied against a tight sling body and no movement between sling and load. To rig, place both eyes on top of load, pointing opposite direction of turn. Body of sling is then passed under load, through both eyes and over lifting hook. Blocking should be used under load to protect sling and facilitate removal.

Useful Guidelines For The Rigger—Wire Rope 26

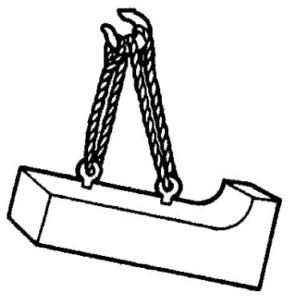

Lifting unbalanced loads when exact length slings are not available can be accomplished by rigging a choke on the heavy end, as right. Length can be adjusted before weight applies, but once the load comes onto the sling, the hitch is locked in position for the lift.

Useful Guidelines For The Rigger—Wire Rope 27 Useful Guidelines For The Rigger—Wire Rope 29

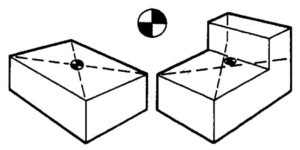

Center of Gravity of a rectangular object with homogeneous characteristics will usually be below the junction of lines drawn diagonally from opposite corners. When a rectangular object has weight concentrated at one end, Center of Gravity will be situated toward that end—away from the intersection of diagonal lines. To avoid an unbalanced lift, the lifting hook must be rigged directly above the Center of Gravity.

Useful Guidelines For The Rigger—Wire Rope 28

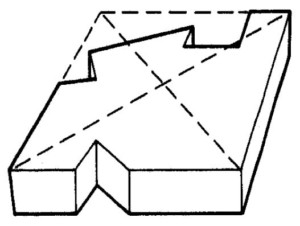

To locate the approximate Center of Gravity of an irregularly shaped article, visualize it enclosed by a rectangle. Where diagonals from opposite corners intersect will usually provide a lift point near the Center of Gravity.

Useful Guidelines For The Rigger—Wire Rope 30

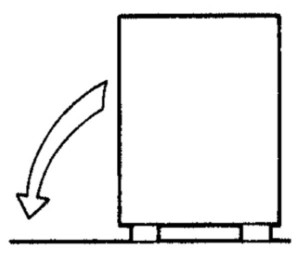

Overturning a heavy object onto cribbing, using one lift hook and chain block. To upend the object, chain block “A” and the sling “B” should exchange points.
Useful Guidelines For The Rigger—Wire Rope 31

Doglegs, Sets & Kinks

Useful Guidelines For The Rigger—Wire Rope 32

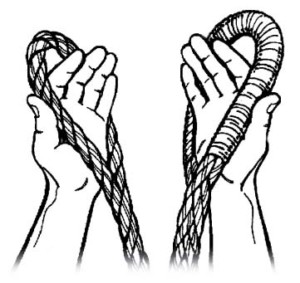

A dogleg is a “set,” which occurs when a wire rope sling is pulled down snug against a load. A dogleg usually can be “rolled back” or turned inside out, and usefulness of the sling restored, since strands can still adjust. If the dogleg is severe, the sling must be removed from service. If the dogleg is minor, (exhibiting no strand distortion) and cannot be observed when the rope is under tension, the area of the minor dogleg should be marked for observation and the sling can remain in service.When a loop is “pulled through,” it forms a kink, which permanently deforms a wire rope by freezing or locking wires and strands. This prevents them from sliding and adjusting, and reduces rope strength. The damage is irreparable and the sling should be taken out of service.

Eye deformation is ordinarily not detrimental to sling strength, as long as there are no broken wires or gross distortion of the lay of strands. An eye has two legs, so it has adequate strength for the load the body can carry. A sling should be retired when distortion locks the strands or flattens the rope in the eye so strands cannot move and adjust.


Care of Wire Rope Slings

The amount of care and proper maintenance a sling receives will go a long way in determining its service life. Following are guidelines which experience has shown helpful.

Storage: Proper storage requires that slings be kept in an area where they will not be exposed to water, extreme heat, or corrosive fumes, liquids, sprays, of being run over or kinked.

Slings should never be left beneath loads or lying wound where they may be damaged. All slings, when not in use, should be kept on a rack. Use of a rack minimizes accidental damage and allows easier monitoring of condition between regular inspections. A rack will also save time by allowing larger slings to be picked up and returned by crane, thereby reducing manhandling.


Rigger’s Check List

  1. Analyze and Measure—Determine the total change weight to be moved, as well as exactly how far it is to move and how high it must be lifted.
  2. Determine the Hitch—Decide how the load is to be connected to the lifting hook, and how the sling will grip or be attached to the load.
  3. Select the Sling—In addition to adequate Rated Capacity for the angles involved, the sling body should be of the type and style best suited to handling this specific load. Select a sling with proper end attachments or eye protection, as well as attachment hardware, such as clevises.
  4. Inspect the Sling—Make a good visual check of the sling you select to determine if it is in good condition and capable of making the lift. Refer to prevailing OSHA and ASME regulations for inspection criteria.
  5. Rig Up, Not Down—Always attach the sling to the load first, then attach it to the hook.
  6. Check Everything—Before attempting a lift, take a light strain on the rigging, checking to see that blocking, sling and load protection and all safety devices are in place.
  7. Stand Clear and Lift—Let the lifting device and rigging do the job—don’t use brute strength to prevent swinging or movement. Use a tagline or tether to control any movement. Keep all hands and toes out from under the load when it is suspended.
  8. Don’t Jerk—Lift slowly and with a steady application of power.
  9. Put It Away—After you’ve completed the job, check the sling for any damage (if it’s damaged, red tag it immediately or advise the sling inspector), then return it to the sling storage rack for safekeeping until next usage.


Operating Temperatures

Steel core slings should never be used at temperatures above 400°F, or below minus 40°F.

Wire rope with a steel core should be selected if there is any evidence to suggest that a fiber core will not provide adequate support to the outer strands, and/or if the temperature of the working environment may be expected to exceed 180°F.

For operating temperatures above 200°F, de-rating of the minimum breaking force of the rope is necessary (e.g. between 200°F and 400°F reduce by 10%; between 400°F and 600°F reduce by 25%; between 600°F and 800°F reduce by 35%).

Do not use ropes with high carbon wires above 800°F.

Failure to observe this general guidance could result in failure of the ropes to support the load.

For temperatures over 800°F, other materials, such as stainless steel or other special alloys, should be considered.

Rope lubricants and any synthetic filling and/or covering materials may become ineffective at certain low or high operating temperature levels.

Certain types of rope end terminations also have limiting operating temperatures, and the manufacturer should be consulted where there is any doubt. Ropes with aluminum ferrules must not be used at temperatures in excess of 300°F.
