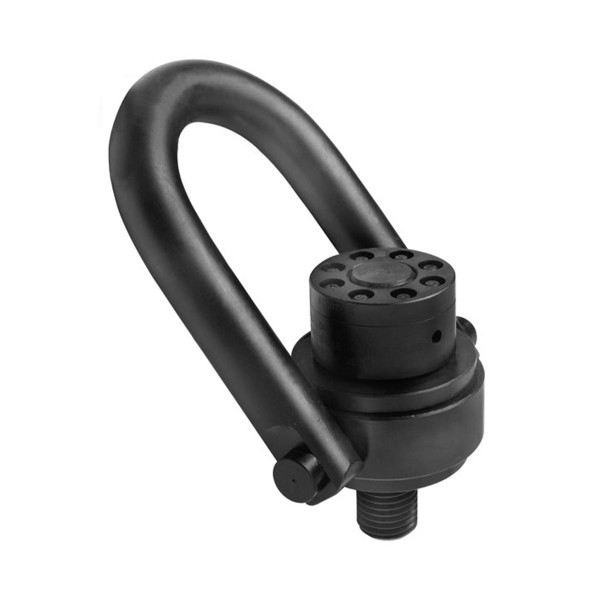

ADB EZ-Torque® Hoist Rings

Material:
Alloy steel with minimum tensile strength of 180,000 PSI.

Design Factor:
5:1, Magnetic Particle Inspected Per ASTM 1444. Hoist Rings retain the same rated load from 0 to 90 degrees from the bolt axis.

Range of Movement:
Swivel 360°, Pivot 180° under Load

Finish:
Black Oxide finish for corrosion resistance

Typical Applications:
ADB, the originator and leader in safety hoist rings, introduces another time and money saving innovation. ADB’s new EZ-Torque® Hoist Ring eliminates the need of locating and installing hydraulic torque multipliers for large hoist ring installations. A 75,000 lb. rated load hoist ring requires the mounting screw to be torqued to 4,300 ft. lbs. Using ADB’s EZ-Torque® Hoist Ring requires only a standard torque wrench and 92 ft. lbs. of torque per bolt!

Patent Numbers:
5,848,815

Category: Tags: , ,
ADB Logo

Description

Also available in a wide range of plating—Cadmium, Titanium-Cadmium, Nickel, etc.

Available in sizes from:

  • Standard Sizes:
    – 1.25″ U-Bar (thread size 1-1/4″-7) to 5″ U-Bar (thread size 6″-4)
    – Rated load from 15,000 to 250,000 pounds
  • Metric Sizes:
    – Thread sizes from M30 x 3.50 to M90 x 6.00
    – Rated load from 7,000 kg to 51,000 kg
