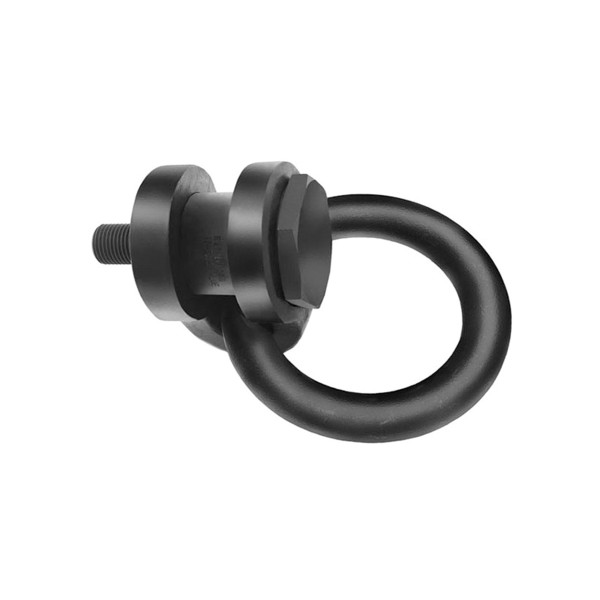

ADB Side Pull Hoist Rings

Material:
Alloy Steel (Certified Heat Treat)

Design Factor:
5:1, Magnetic Particle Inspected

Range of Movement:
Swivel 360° Under Load

Specifications:
Meets Military Specification No. MIL-STD 209J, Meets ASME B30.26

Finish:
Black Oxide Finish for corrosion resistance

ADB Logo

Description

Available in sizes from:

  • Standard Sizes:
    – 3/8″ U-Bar (thread size 5/16″-18) to 1-1/2″ U-Bar (thread size 2″-8)
    – Rated load from 650 to 29,000 pounds
  • Metric Sizes:
    – Thread sizes from M8 x 1.25 to M64 x 6.00
    – Rated load from 400 kg to 25,000 kg



All product warnings: Warnings Page
View our complete literature library.
