Cable Laid Grommets

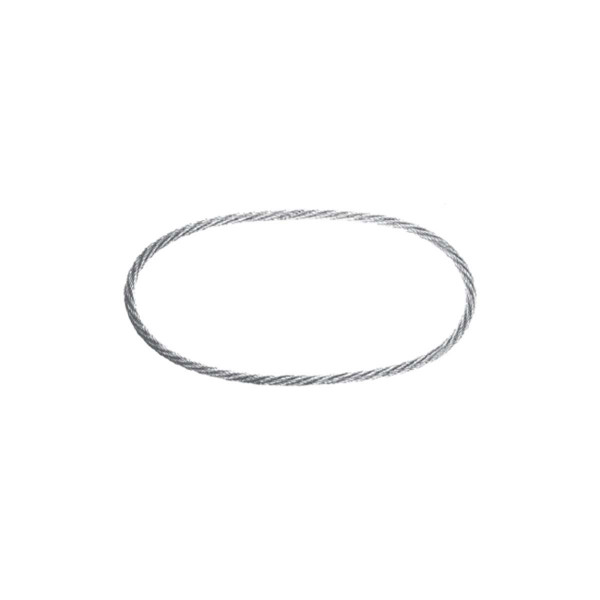

Cable Laid Grommets have six ropes laid helically around a wire rope core with ends joined by a hand tuck to form an endless body.

Highly flexible, they resist kinks and are easy to handle.

Minimum circumference of the sling is 96 times the grommet body diameter. Circumferences less than 96 times the grommet body diameter are available.

Recommended when Mazzella Split Tuck Core Splice is incorporated into sling fabrication.

Mazzella Companies Logo

Description

Hand Tucked Continuous Construction —

Cable laid grommets are made from one continuous wire rope.

Cable Laid Grommets Specs




Reduction Chart

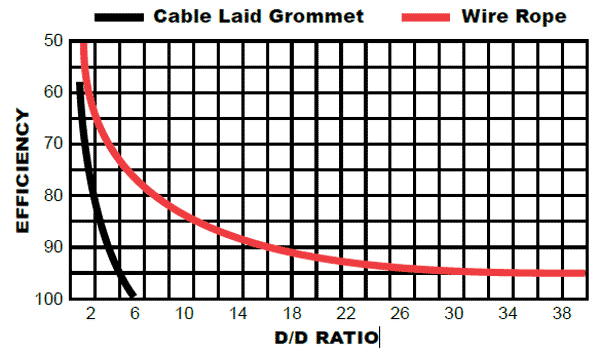

Wire rope grommet strength efficiency over various sizes of pins based on standard published rated capacities tables (D = connection point, d = wire rope diameter).

Cable Laid Grommets Reduction Chart

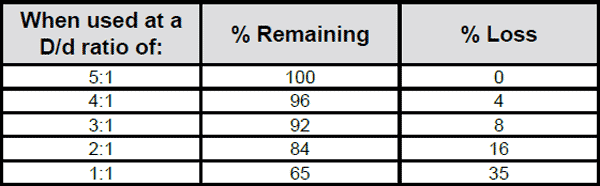

Reduction In Strength of Wire Rope

When Bent Over Sheaves or Pins of Various Sizes

Cable Laid Grommets Reduction in Strength

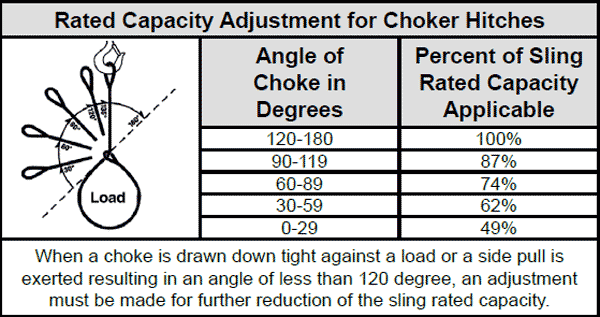

Rated Capacity for Choker Hitches

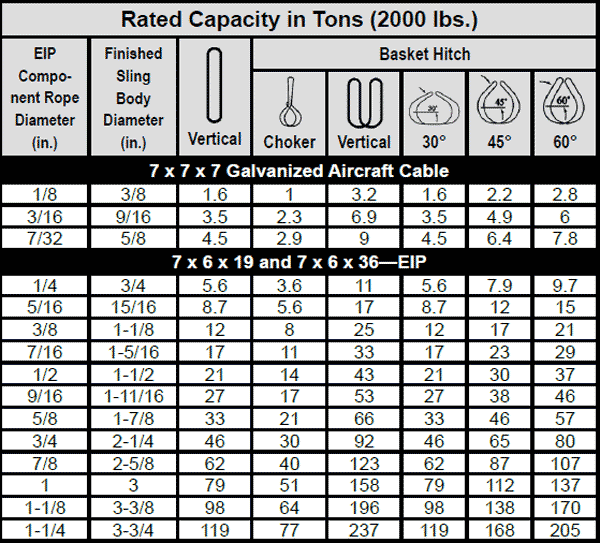

Cable Laid Grommet Capacities are based on EIPS-Fiber Core Wire Rope

Rated capacities basket hitch and vertical lift based on D/d ratio of 5 where “d” = body diameter of the finished grommet

Rated capacities based on design factor of 5

Rated capacities based on pin diameter no smaller than 5 times the body diameter

Horizontal sling angles less than 30 degrees shall not be used



All product warnings: Warnings Page
