Single-Part Body Mechanically Spliced Wire Rope Slings

On mechanically spliced wire rope slings, eyes are formed using the flemish eye splice and are secured by pressing a metal sleeve over the ends of the strands of the splice. Pull is directly along the centerline of rope and eye. This type of splice provides the most efficient use of rope capacity and is economical.

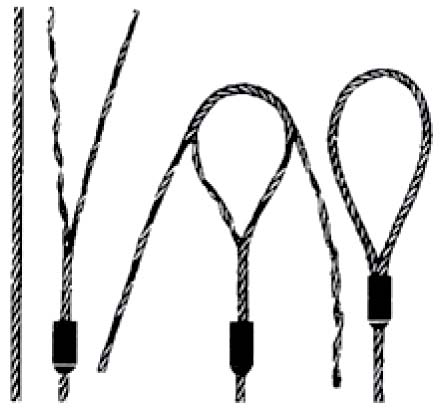

Swaging Provides Positive Grip This cutaway of a metal sleeve strands, swaged onto a splice shows how metal “flows” into valleys between strands to positively prevent ends from unlaying when sling is used within its rated capacity.

Mazzella Logo

Description

Mechanically Spliced Wire Rope Slings

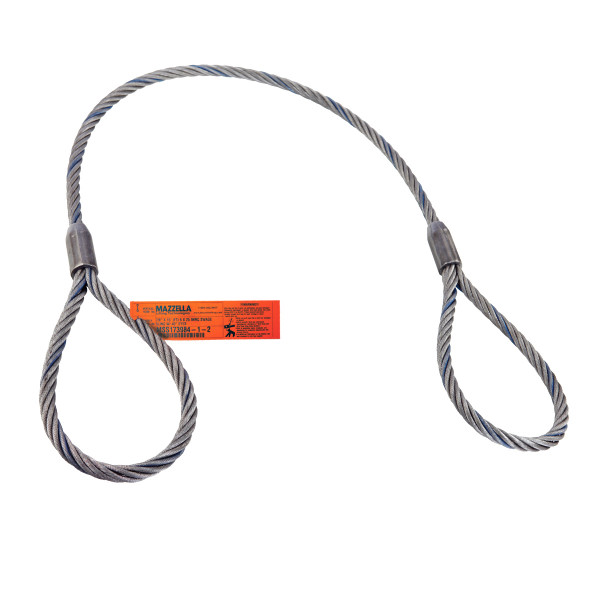

Flemish Eye Splice – In the standard flemish eye mechanical splice, wire rope is separated into two parts—3 adjacent strands, and 3 adjacent strands and core. These two parts are then re-laid back in opposite directions to form an eye, and the ends are secured with a swaged metal sleeve.

Flemish Eye Slice Wire Rope Slings

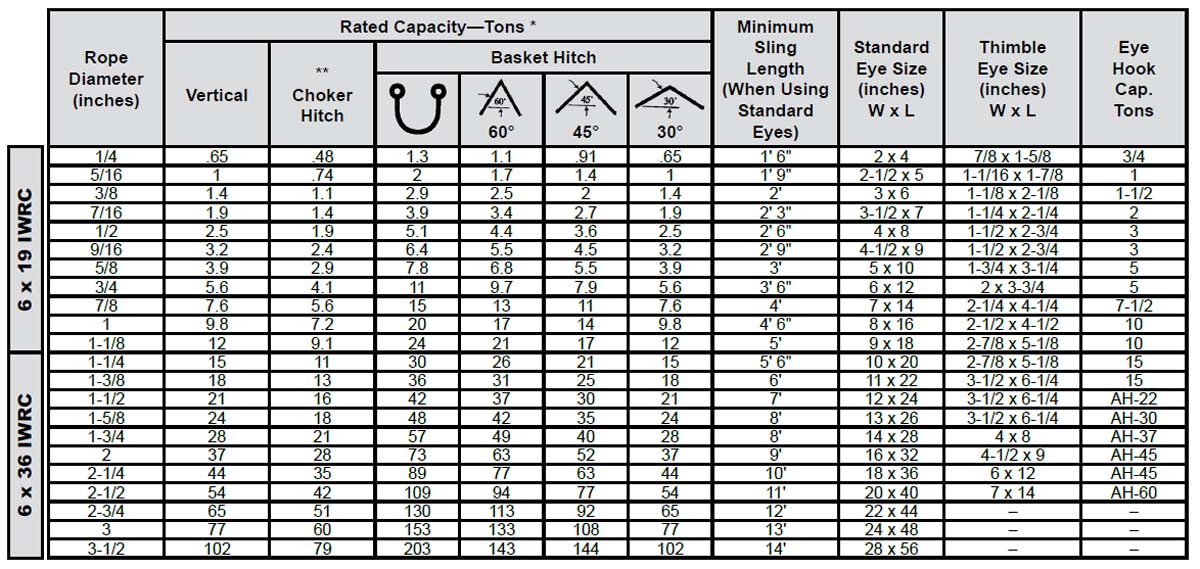

Single-Part Body Mechanically Spliced Wire Rope Slings Specs

* Rated Capacities Basket Hitch based on D/d Ratio of 25.

Rated Capacities based on pin diameter no larger than natural eye width or less than the nominal sling diameter.

Rated Capacities based on design factor of 5.

** See Choker Hitch Rated Capacity Adjustment. Sling angles less than 30 degrees shall not be used.

Above capacities based on EIP rope.




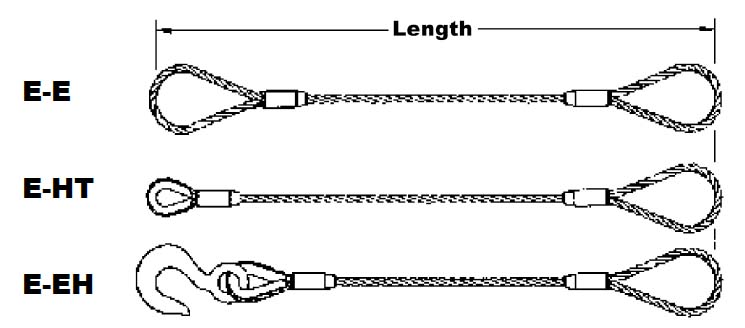

Single-Part Mechanically Spliced Slings with Choker Hooks

All wire rope diameters in inches. All capacities in tons of 2,000 lbs. All eye and fitting dimensions in inches.

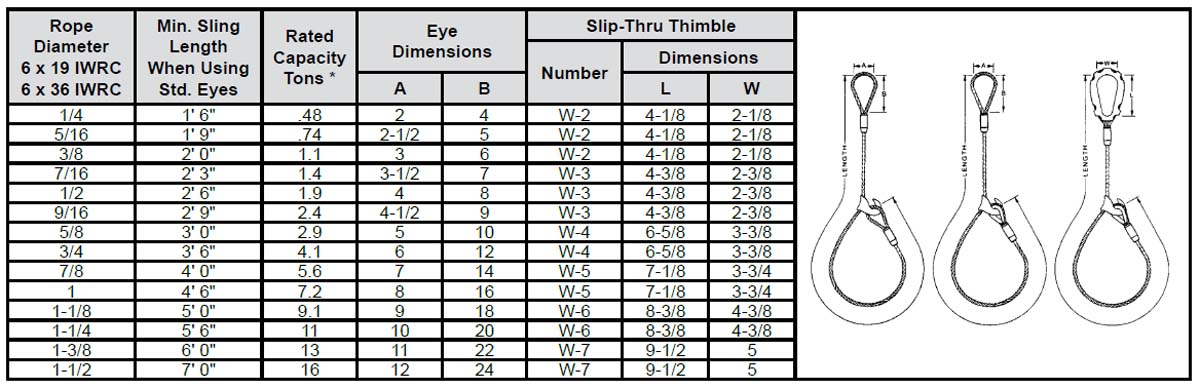

Single-Part Body Mechanical Spice Wire Rope Slings With Choker Hooks Specs 1

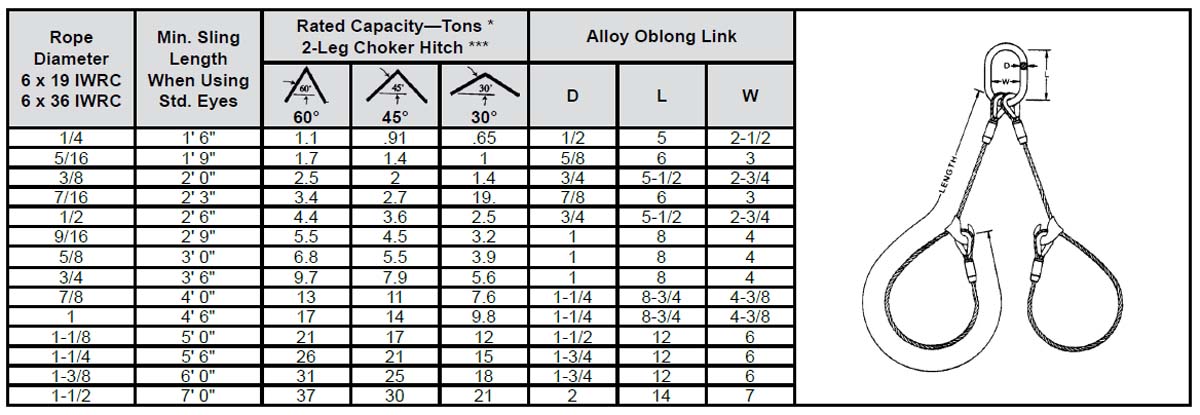

Single-Part Body Mechanical Spiced Wire Rope Slings With Choker Hooks Specs 2

* Rated Capacities Basket Hitch based on D/d ratio of 25.

Rated Capacities based on pin diameter no larger than natural eye width or less than the nominal sling diameter.

Rated Capacities based on design factor of 5.

Sling angles less than 30° shall not be used.

*** See Choker Hitch Rated Capacity Adjustment.

Rated Capacity for two-legged bridles, whether used as chokers or with hooks or other end fixtures, is affected by rigging angles, the same as straight slings in basket hitches.

Note: Reduction in rated capacity as legs spread to wider lifting connections.
