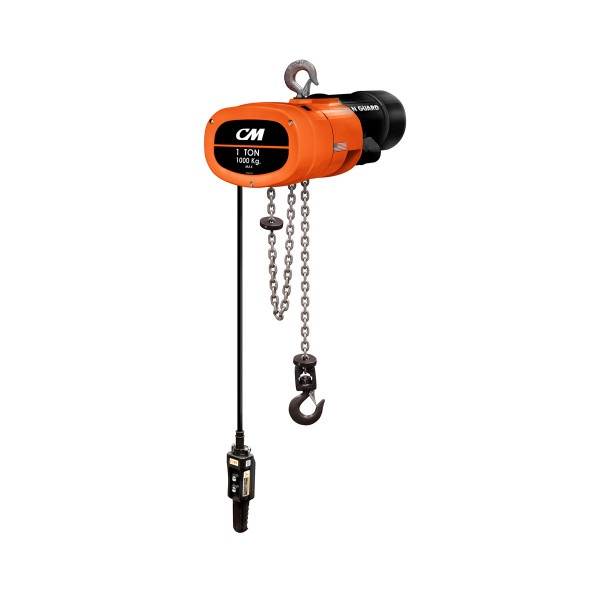

CM Man Guard Electric Chain Hoist

1/4, 1/2, 1, 2 and 3 Ton Capacities with 10, 15 and 20-Foot Standard Lift.

CM Man Guard is designed for a long and dependable service life for heavy duty applications. With its enhanced safety features, easy access to key components, less maintenance and environmentally-friendly design, the CM Man Guard is the right choice for your lifting needs.

Budgit Logo

Description

Features & Benefits:

Overload Protection

Overload clutch prevents lifting beyond load capacity, which may damage the hoist or supporting structure, or cause injury to the operator.

Ready For Heavy Duty Applications

H4 duty motor classification rated for heavy duty use.

Longer Service Life
  • Class F insulation and thermal switch in motor winding reduces motor overheating.
  • Helical Gears are oil-bath lubricated which provides better wear while reducing noise.
  • Powder coat painted housing and corrosion-resistant zinc-plated chain provides superior protection against the elements.
  • Hard-wired power and pendant cords reduce the risk of corrosion and loose connections.
Improved Serviceability
  • Open design allows quick access to AC Brake.
  • Easy access to Control Panel and simple wiring change to switch voltages.
Superior Load Control

Optional Variable Frequency Drive (VFD) with 3-Step infinitely variable pendant allows operator to adjust lifting speeds without interruption. Many competitors only offer a 2-Step pendant requiring service interruption to change lift speeds.

Eco-Friendly Energy-Saver

Efficiently designed gear train allows a smaller horsepower motor to operate at the same speeds and duty as our competition and reduces energy consumption. Shipped in boxes made of recycled material.

Made In The USA

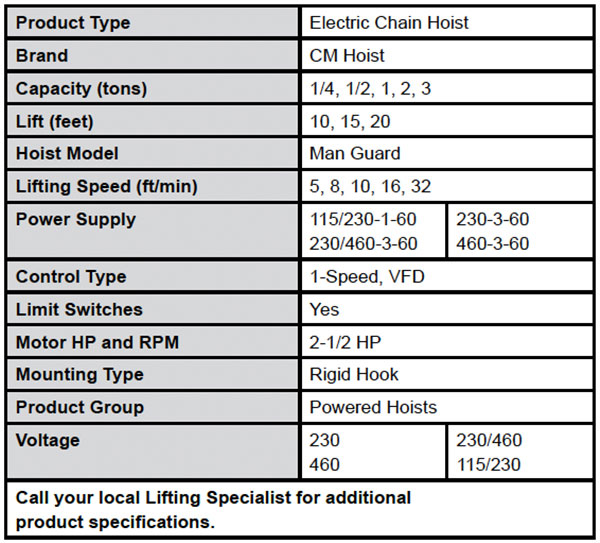

Man Guard Electric Chain Hoist Specs

NEED HOIST REPAIR OR PARTS?

We do repairs in-house and stock a full line of parts.

Brand

Budgit Hoists

Designed with versatility in mind, Budgit Hoists provide power and durability for a diverse range of special, heavy-duty applications. Electric chain hoists are built to withstand the rigors of extreme environments, while hand chain hoists and lever tools are used extensively in repair and construction activities. Food grade hoists, spark-resistant models, and explosion-proof units provide secure lifts in sensitive areas. Low headroom hoist/trolley combinations are used extensively in areas where space is at a premium, and a complete line of bridge kits and related components provide effortless movement above the shop floor.
