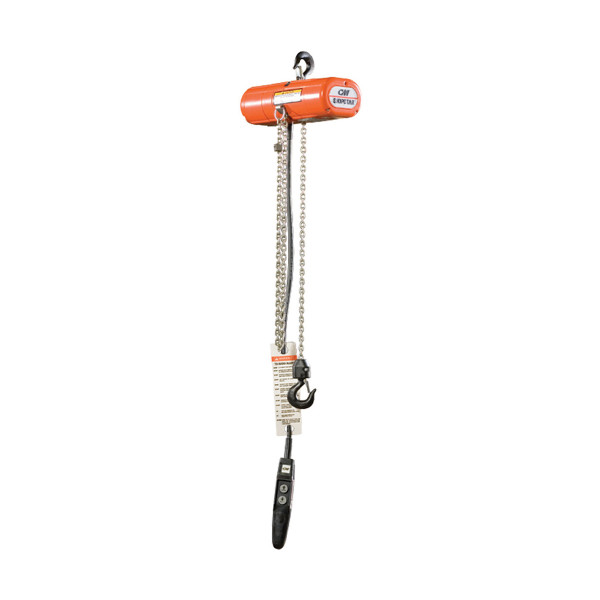

CM ShopStar Electric Chain Hoist

250, 300, 500, 600 and 1000 Lb. Capacities with 10-Foot Standard Lift—Longer lifts are available.

The CM ShopStar Electric Chain Hoist features a streamlined assembly and high H4 duty cycle, capable of lifting up to 1,000 pounds and 300 motor starts per hour.

CM Logo

Description

Features & Benefits:

  • H4 duty cycle (300 motor starts / hour)
  • Easy installation and maintenance
  • Standard protector overload device
  • 10 pocket oblique lay liftwheel provides longer chain wear
  • Epoxy powder coat finish
  • 6-1/2 ft. power cord with molded 3-prong plug on 115 volt units
  • NEMA 4 industrial rated control station
  • Optional impact-resistant chain container available
  • Gear train lifetime lubricated with non-oxidizing grease
  • CM Hoist Alloy Load Chain (zinc plated optional)
  • Thermally protected hoist duty motor
  • Dual braking system – D.C. plus regenerative
  • Rugged cast aluminum alloy hoist frame
  • 5:1 design factor
  • Small, compact design for commercial and industrial applications
  • Rigid hook suspension prevents tangling of power cord
  • Hardened forged steel latch style lower hook rotates 360°
  • Totally enclosed non-ventilated hoist frame protects motor from environmental contamination
  • True vertical lift
  • Precision bearings used throughout hoist
  • Lifetime warranty
  • Made in U.S.A.

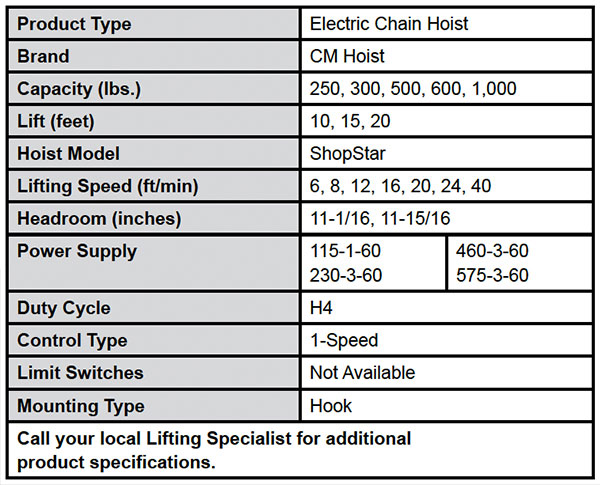

ShopStar Electric Chain Hoist Specs

NEED HOIST REPAIR OR PARTS?

We do repairs in-house and stock a full line of parts.

Brand

CM

With more than a century of experience providing products and solutions for industrial manufacturing and construction, the CM brand has developed a loyal following with users around the globe. Products such as the CM Lodestar electric chain hoist and the orange pin shackles are requested by name due to their reputation for durability and long life. While products are available for individual use, CM's expansive line of products offers complete solutions for overhead lifting applications. Products are easily combined to offer comprehensive systems that satisfy the exact requirements of complex applications. From heavy-duty hoists for environments such as steel production to general duty chain and hooks for commercial use, the CM name represents a legacy of expertise in the market.Mazzella / CM Lodestar VS Hoist System Channel: VideosMazzella / CM Hurricane 360 Hoist System Channel: Videos
