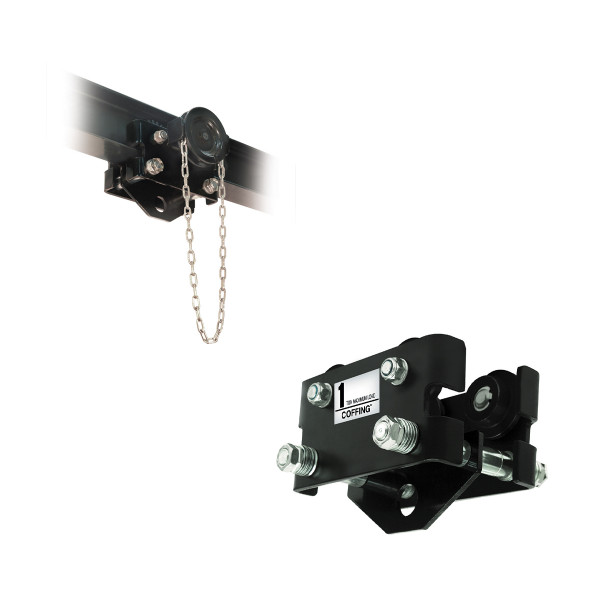

Coffing CBT Plain & Geared Trolley

1/4, 1/2, 1, 1-1/2, 2, 3 and 5 Ton Capacities (Metric Rated). In plain and geared models.

COFFING CBT Model—Available in plain and geared models, the CBT is the economical choice for most applications. The trolley features steel wrap-around side plates, dual tread wheels and lifetime lubricated shielded ball bearings. All the CBTs’ features combine to ensure a trolley that is smooth rolling, versatile and reliable.

Category: Hoist TrolleysTags: trolley, geared, plain

Description
Warnings

Description

Features & Benefits:

Economical

Excellent low-cost choice for manual and powered hoists.

Rugged

Designed to provide superior performance and long, efficient service.

Low Rolling Effort

Geared models have standard 6-foot hand chain drop. Other hand chain drops available.

Universal Hanging Clevis

Accepts most hook-mounted hoists.

Adjustable

Trolley easily adjusts to fit any beam flange within range of adjustment—up to an 8.7″ flange width.

Wrap-Around Side Plates

Lugs provide additional security to increase operator safety and act as bumpers to protect wheels.

Dual Tread Wheels

Will fit either tapered or flat beam flange within range of adjustment. Wheels include permanently lubricated, shielded ball bearings for long life and low maintenance.

Lifetime Warranty

NEED HOIST REPAIR OR PARTS?

We do repairs in-house and stock a full line of parts.

All product warnings: Warnings Page
